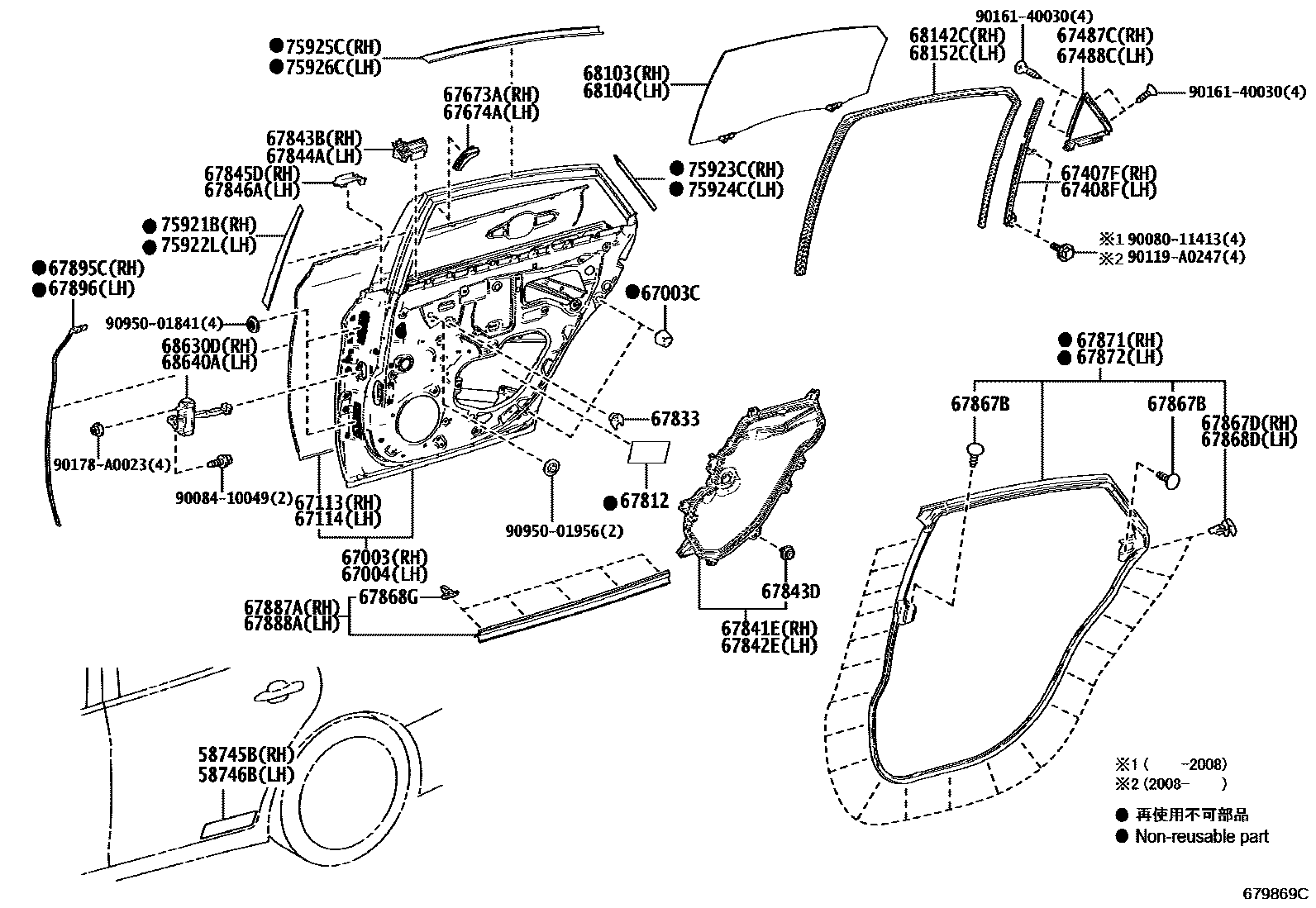

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

58745BPROTECTOR, QUARTER PANEL, FRONT RH

main58745-07020iAXXA55;GSX50..XSE202008-202107

58746BPROTECTOR, QUARTER PANEL, FRONT LH

main58746-07020iAXXA55;GSX50..XSE202008-202107

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-07040iAXXA55;GSX50..XSE202008-202107

67003CCUSHION, REAR DOOR PANEL

main90541-09143×4iAXXH51;GSX50..LIMD,TOU,XLE202008

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-07040iAXXH51;GSX50..LIMD,TOU,XLE202008

67113PANEL, REAR DOOR, OUTER RH

main67113-07030iAXXA55;GSX50..XSE202008-202107

67114PANEL, REAR DOOR, OUTER LH

main67114-07030iAXXH50,GSX50201804-202008

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-07020iAXXH51;GSX50..LIMD,TOU,XLE202008

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-07020iAXXA55;GSX50..XSE202008-202107

67487CSEAL, REAR DOOR REAR GUIDE, RH

main67470-07010iAXXH50,GSX50201804-202008

67488CSEAL, REAR DOOR REAR GUIDE, LH

main67480-07010iAXXH50,GSX50201804-202008

67673AGARNISH, REAR DOOR FRAME, RH

main67673-06140iAXXH51;GSX50..LIMD,TOU,XLE202008

67674AGARNISH, REAR DOOR FRAME, LH

main67674-06140iAXXH51;GSX50..LIMD,TOU,XLE202008

67812PAD, REAR DOOR SILENCER

main67811-AA040×2iAXXH50,GSX50201804-202008

67833COVER, REAR DOOR SERVICE HOLE

main67833-0E010×2iAXXH50,GSX50201804-202008

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-07040iAXXH50,GSX50201804-202008

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-07040iAXXH50,GSX50201804-202008

67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH

main67843-07010iAXXH50,GSX50201804-202008

67843DCLIP, REAR DOOR SERVICE HOLE

main90467-A0005×16iAXXH50,GSX50201804-202008

67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH

main67844-07010iAXXH50,GSX50201804-202008

67845DSEAL, REAR DOOR FRONT OUTSIDE, RH

main67845-07010iAXXH50,GSX50201804-202008

67846ASEAL, REAR DOOR FRONT OUTSIDE, LH

main67846-07010iAXXH51;GSX50..LIMD,TOU,XLE202008

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67868-30030×4iAXXH50,GSX50201804-202008

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×21iAXXH50,GSX50201804-202008

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×21iAXXH50,GSX50201804-202008

67868GRETAINER, DOOR WEATHERSTRIP

main67867-52030×10iAXXH50,GSX50201804-202008

67871WEATHERSTRIP, REAR DOOR, RH

main67871-07020iAXXH50,GSX50201804-202008

67872WEATHERSTRIP, REAR DOOR, LH

main67872-07020iAXXH50,GSX50201804-202008

67887AWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-07020iAXXH50,GSX50201804-202008

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67887-07020iAXXH50,GSX50201804-202008

67895CWEATHERSTRIP, REAR DOOR, NO.3 RH

main67895-07020iAXXH50,GSX50201804-202008

67896WEATHERSTRIP, REAR DOOR, NO.3 LH

main67896-07020iAXXH50,GSX50201804-202008

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-07040iAXXH50,GSX50201804-202008

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-07040iAXXH50,GSX50201804-202008

68142CRUN, REAR DOOR GLASS, RH

main68142-07020iAXXH50,GSX50201804-202008

68152CRUN, REAR DOOR GLASS, LH

main68152-07020iAXXH50,GSX50201804-202008

68630DCHECK ASSY, REAR DOOR, RH

main68630-07032iAXXH50,GSX50201804-202008

68640ACHECK ASSY, REAR DOOR, LH

main68630-07032iAXXH50,GSX50201804-202008

75921BTAPE, BLACK OUT, NO.1 RH

main75977-07020iAXXH50,GSX50201804-202008

75922LTAPE, BLACK OUT, NO.1 LH

main75978-07020iAXXH50,GSX50201804-202008

75923CTAPE, BLACK OUT, NO.2 RH

main75923-07020iAXXH50,GSX50201804-202008

75924CTAPE, BLACK OUT, NO.2 LH

main75924-07020iAXXH50,GSX50201804-202008

75925CTAPE, BLACK OUT, NO.3 RH

main75987-07020iAXXA55;GSX50..XSE202008-202107

75926CTAPE, BLACK OUT, NO.3 LH

main75988-07020iAXXA55;GSX50..XSE202008-202107

9008011413

main90080-11413

9008410049

main90084-10049

90119A0247

main90119-A0247

9016140030

main90161-40030

90178A0023

main90178-A0023

9095001841

main90950-01841

9095001956

main90950-01956

51 parts on this diagram · 2 diagrams in section
