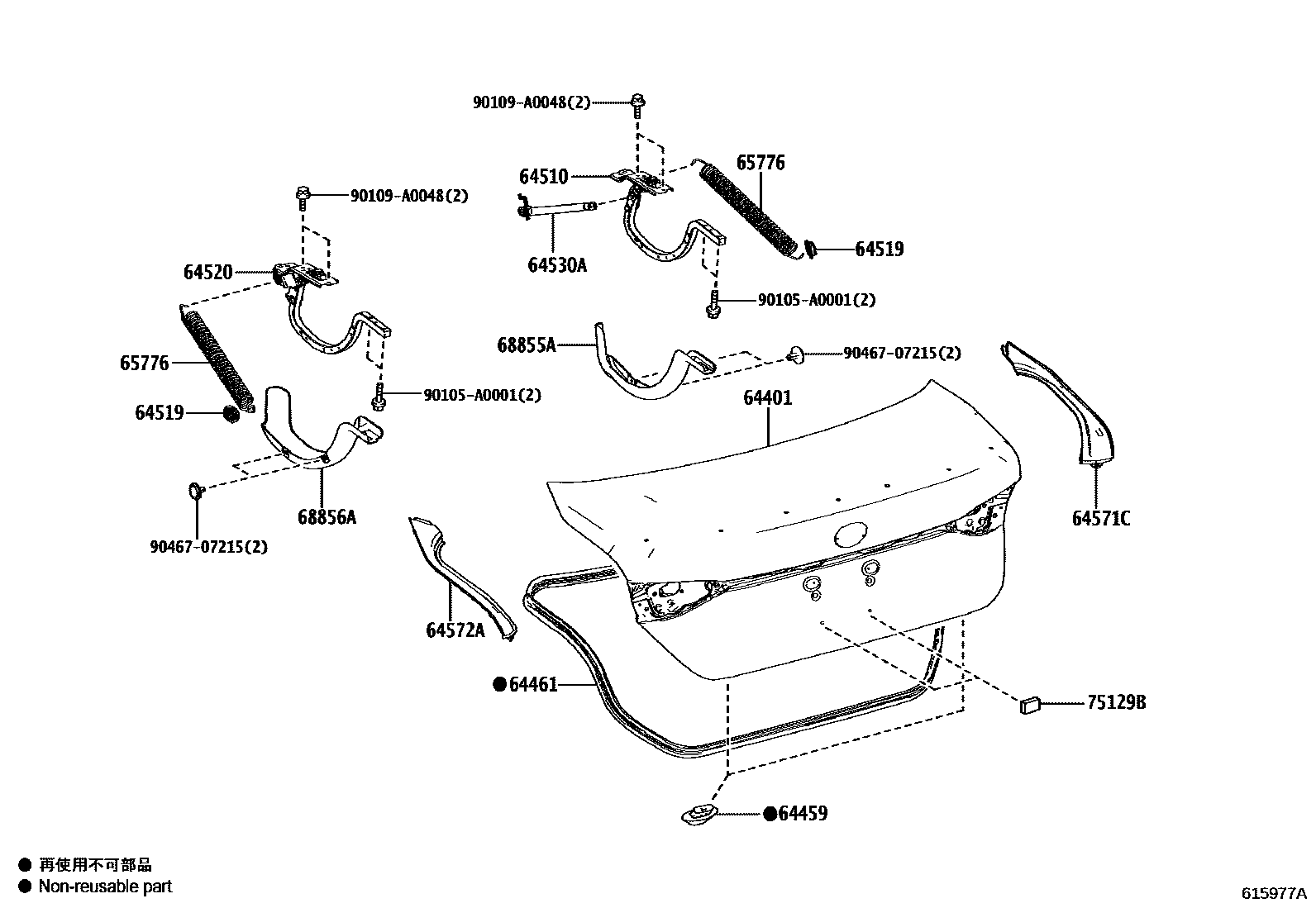

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1LUGGAGE COMPARTMENT DOOR PANE0002 1LUGGAGE DOOR LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-07210iAXXH50,GSX50..TOU,XSE201804-202008

main64401-07220iAXXH50,GSX50..LIMD,XLE201804-202008

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main64459-06040×2iAXXA55;GSX50..XSE202008-202107

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-07060iAXXH50,GSX50201804-202008

main64461-07061iAXXH51;GSX50..LIMD,TOU,XLE202108

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-07020iAXXH50,GSX50201804-202008

64519BUSH, LUGGAGE DOOR HINGE SUPPORT

main64519-07020×2iAXXH50,GSX50201804-202008

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-07030iAXXH50,GSX50201804-202008

64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR

main64530-07010iAXXH50,GSX50201804-201810

main64530-07011iAXXH50,GSX50201811-202008

64571CCOVER, LUGGAGE COMPARTMENT DOOR, RH

main64571-07020iAXXH50,GSX50201804-202008

64572ACOVER, LUGGAGE COMPARTMENT DOOR, LH

main64572-07020iAXXH50,GSX50201804-202008

65776SPRING, BACK DOOR STAY

main65776-07010×2iAXXH50,GSX50..LIMD,XLE201804-202008

main65776-07020×2iAXXH50,GSX50..TOU,XSE201804-202008

68855APROTECTOR, BACK DOOR HINGE, UPPER RH

main82817-07520iAXXH50,GSX50201804-202008

68856APROTECTOR, BACK DOOR HINGE, UPPER LH

main82818-07020iAXXH50,GSX50201804-202008

75129BCUSHION, REAR LICENCE PLATE

main75129-AC010×2iAXXH50,GSX50201804-202008

90105A0001

main90105-A0001

90109A0048

main90109-A0048

9046707215

main90467-07215

16 parts on this diagram · 2 diagrams in section
