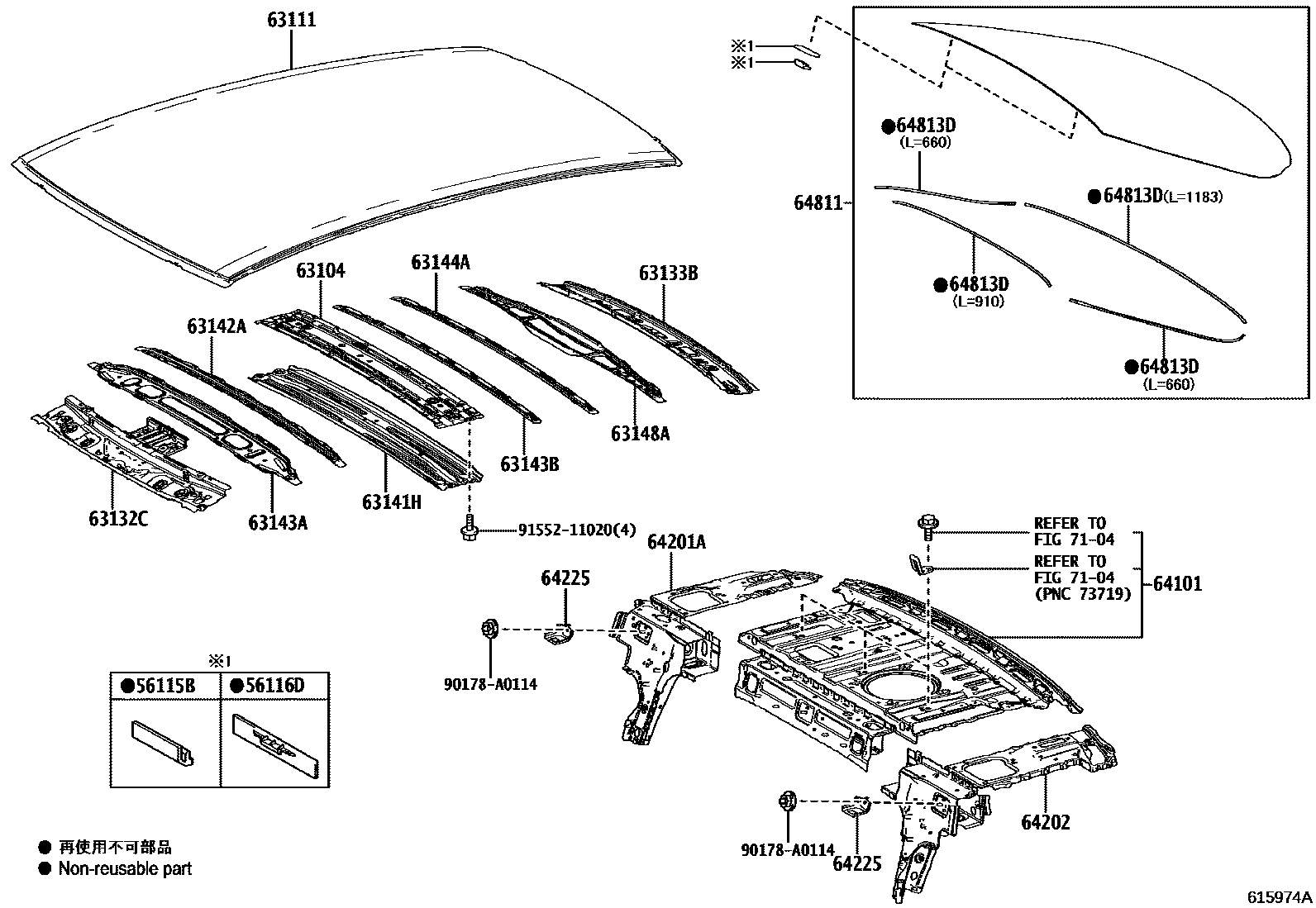

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL(NORMAL) 0002 1ROOF PANEL(MOON) 0003 1SLIDING ROOF(MOON)

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120iAXXH50,GSX50201804-202008

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iAXXH51;GSX50..LIMD,TOU,XLE202008

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63107-07010iAXXA55;GSX50..XSE202008-202107

63111PANEL, ROOF

main63111-07090iAXXA55;GSX50..XSE202008-202107

main63111-07080iAXXH50..XLE201805-202008

KOREA SPEC

main63111-07100iAXXH50..XLE201805-202008

KOREA SPEC&DECONTENT PACKAGE

main63111-07110iAXXH51,GSX50..XLE202008

WITHOUT(MOON ROOF)

63132CPANEL, WINDSHIELD HEADER, INNER

main63102-07900iAXXA55;GSX50..XSE202008-202107

main63102-07901iAXXH51,GSX50..XLE; AXXH51..XLE202008

KOREA SPEC&WITHOUT(MOON ROOF); WITHOUT(MOON ROOF)

63133BFRAME, BACK WINDOW

main63133-07030iAXXH50,GSX50201804-202008

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-07030iAXXH51,GSX50..XLE; AXXH51..XLE202008

KOREA SPEC&WITHOUT(MOON ROOF); WITHOUT(MOON ROOF)

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-06140iAXXH50,GSX50201804-202008

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63149-07020iAXXH50,GSX50..XLE; GSX50..XLE201804-202008

DECONTENT PACKAGE; USA POSSESSION SPEC&DECONTENT PACKAGE

63143AREINFORCEMENT, ROOF PANEL

main63143-07030iAXXH50,GSX50..XLE; GSX50..XLE201804-202008

DECONTENT PACKAGE; USA POSSESSION SPEC&DECONTENT PACKAGE

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63128-07010iAXXH50,GSX50201804-202008

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-07030iAXXH50,GSX50201804-202008

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-07020iAXXH50,GSX50201804-202008

64101PANEL SUB-ASSY, UPPER BACK

main64101-07080iAXXH50,GSX50201804-202008

64201AEXTENSION SUB-ASSY, PACKAGE TRAY, RH

main64201-07030iAXXH50,GSX50201804-202008

64202EXTENSION SUB-ASSY, PACKAGE TRAY, LH

main64202-07030iAXXH50,GSX50201804-202008

64225HANGER, REAR SEAT CUSHION SUPPORT

main64225-06010×2iAXXA55;GSX50..XSE202008-202107

64811GLASS, BACK WINDOW

main64801-07020iAXXH51;GSX50..LIMD,TOU,XLE202008

main64801-07030iAXXH51..XLE202008

KOREA SPEC

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-06180iAXXH50,GSX50201804-202008

#,L=1183

main64813-07020iAXXA55;GSX50..XSE202008-202107

L=910

main64813-07030×2iAXXA55;GSX50..XSE202008-202107

L=660
