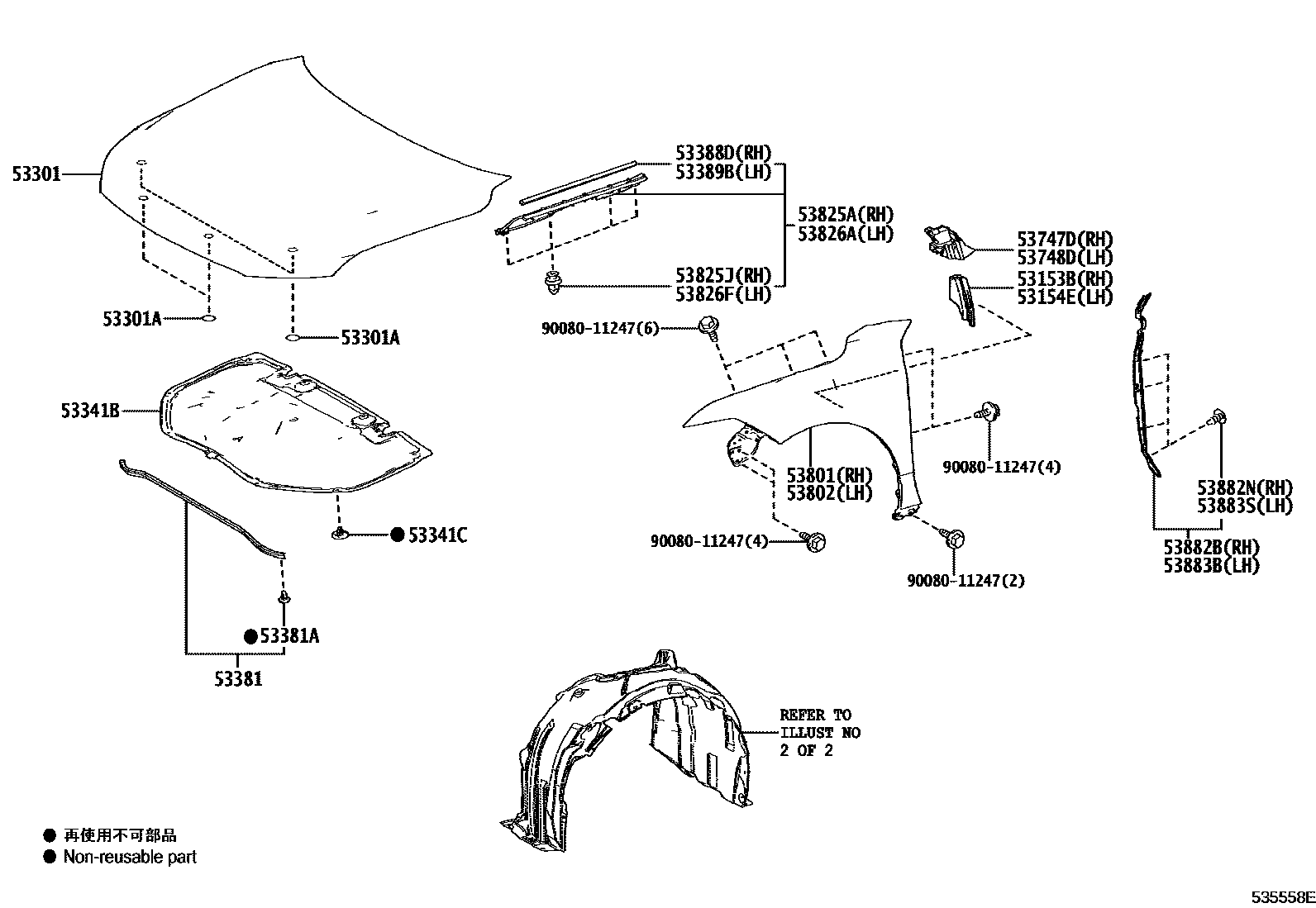

HOOD & FRONT FENDER

0001 1 0002 1 0003 1

53153BGUIDE, FRONT SIDE AIR

main53153-07010iAXXA55;GSX50..XSE202008-202107

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-07010iAXXH50,GSX50201804-202008

53301HOOD SUB-ASSY

main53301-07070iAXXH50,GSX50201804-202008

53301APLUG, HOLE(FOR HOOD)

main90950-06124×4iAXXH50,GSX50201804-202008

53341BINSULATOR, HOOD

main53341-07020iAXXH50,GSX50201804-202008

53341CCLIP(FOR HOOD INSULATOR)

main90467-A0003×9iAXXH50,GSX50201804-202008

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-06190iAXXH50,GSX50201804-202008

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90080-46010×10iAXXH50,GSX50201804-202008

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-07020iAXXH50,GSX50201804-202008

53389BSEAL, HOOD TO FRONT FENDER, LH

main53388-07020iAXXH50,GSX50201804-202008

53747DEXTENSION, APRON FENDER SIDE, RH

main53747-07020iAXXH50,GSX50201804-202008

53748DEXTENSION, APRON FENDER SIDE, LH

main53748-07020iAXXH50,GSX50201804-202008

53801FENDER SUB-ASSY, FRONT RH

main53801-07050iAXXH50,GSX50201804-202008

53802FENDER SUB-ASSY, FRONT LH

main53802-07050iAXXH51;GSX50..LIMD,TOU,XLE202008

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-07030iAXXH50,GSX50201804-202008

53825JCLIP, FRONT FENDER PROTECTOR

main90467-A0006×4iAXXH50,GSX50201804-202008

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-07030iAXXA55;GSX50..XSE202008-202107

53826FCLIP, FRONT FENDER PROTECTOR

main90467-A0006×4iAXXH50,GSX50201804-202008

53882BSEAL, FRONT FENDER, RH

main53882-07020iAXXH50,GSX50201804-202008

53882NCLIP(FOR FRONT FENDER SEAL)

main90467-06195×4iAXXH50,GSX50201804-202008

53883BSEAL, FRONT FENDER, LH

main53883-07020iAXXH50,GSX50201804-202008

53883SCLIP(FOR FRONT FENDER SEAL)

main90467-06195×4iAXXH50,GSX50201804-202008

9008011247

main90080-11247

23 parts on this diagram · 3 diagrams in section
