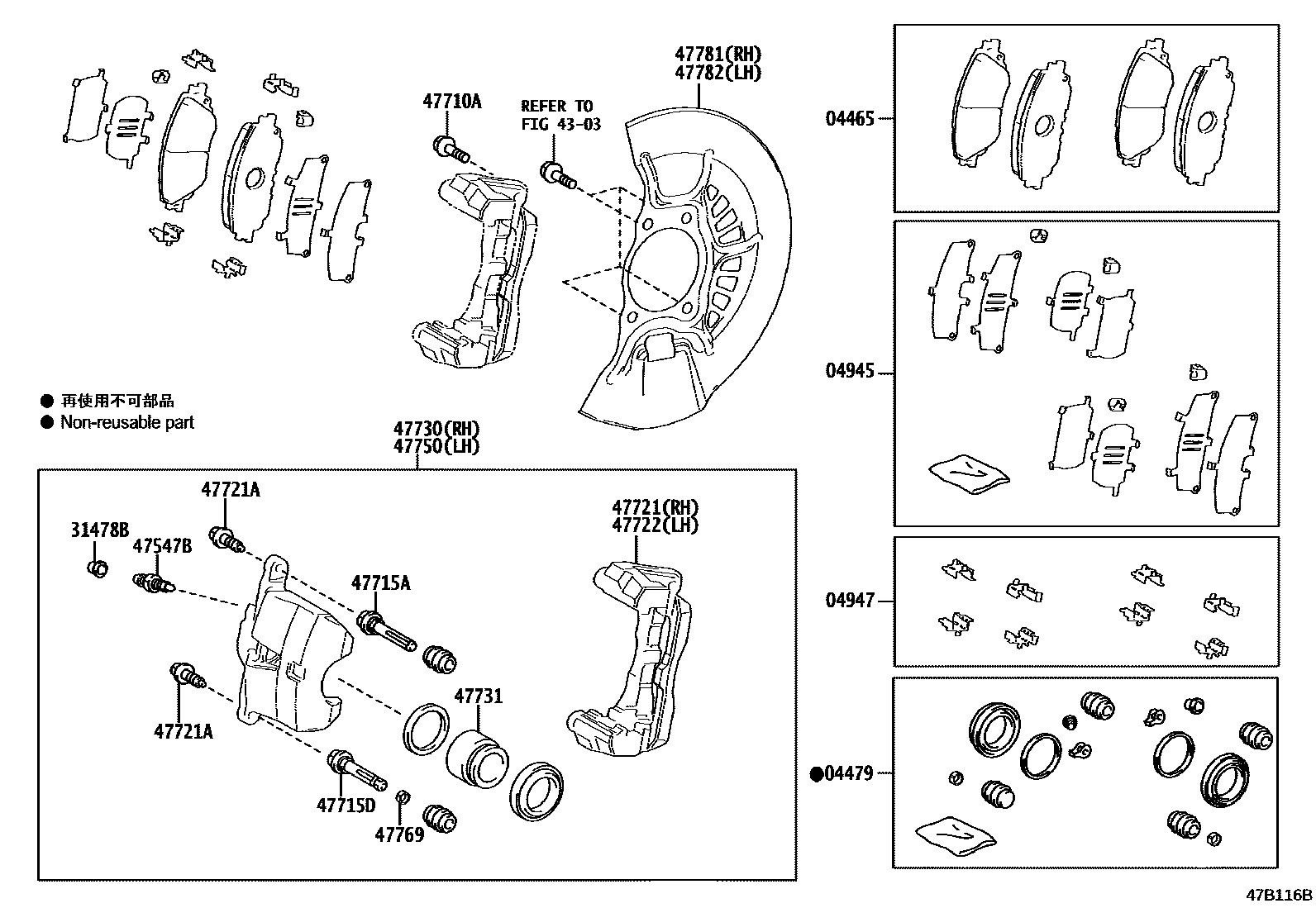

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1TRD PACKAGE

04465PAD KIT, DISC BRAKE, FRONT

main04465-0E060iAXXH50,GSX50201804-202008

MARK NBK D6994H

main04465-33500iGSX50..XSE201908-202008

MARK AKEBONO NS380H,TRD PACKAGE

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0E061iAXXH51;GSX50..LIMD,TOU,XLE202008

main04478-48200iGSX50..XSE201908-202008

TRD PACKAGE

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0E071iAXXH51;GSX50..LIMD,TOU,XLE202008

main04945-33310iGSX50..XSE201908-202008

TRD PACKAGE

main04945-48160iGSX50..XSE202008-202107

TRD PACKAGE

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0E030iAXXH50,GSX50201804-201808

main04947-0E031iAXXH50,GSX50201808-202008

main04947-48080iGSX50..XSE201908-202008

TRD PACKAGE

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iAXXH50,GSX50201804-202008

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130×2iAXXH50,GSX50201804-202008

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90080-10067×4iAXXH50,GSX50201804-202008

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-04080×2iAXXH50,GSX50201804-202008

main47714-48150×2iGSX50..XSE201908-202008

TRD PACKAGE

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-33340×2iAXXA55,AXXH51,GSX50202008

main47715-48150×2iGSX50..XSE202008-202107

TRD PACKAGE

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-06321iAXXH50,GSX50201804-201808

main47721-06322iAXXH51;GSX50..LIMD,TOU,XLE202008

main47721-33400iGSX50..XSE202008-202107

TRD PACKAGE

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA103×4iAXXH50,GSX50201804-202008

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-06321iAXXH50,GSX50201804-201808

main47722-06322iAXXH50,GSX50201808-202008

main47722-33390iGSX50..XSE201908-202008

TRD PACKAGE

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-06320iAXXH50,GSX50201804-201808

main47730-06321iAXXA55;GSX50..XSE202008-202107

main47730-33400iGSX50..XSE202008-202107

TRD PACKAGE

47731PISTON, FRONT DISC BRAKE

main47731-06320×2iAXXH50,GSX50201804-202008

main47731-48150×4iGSX50..XSE201908-202008

TRD PACKAGE

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-06320iAXXH50,GSX50201804-201808

main47750-06321iAXXA55,AXXH51,GSX50202008

main47750-33390iGSX50..XSE202008-202107

TRD PACKAGE

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010×2iAXXH50,GSX50201804-202008

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-06180iAXXH50,GSX50201804-202008

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-06180iAXXH50,GSX50201804-202008

19 parts on this diagram · 2 diagrams in section
