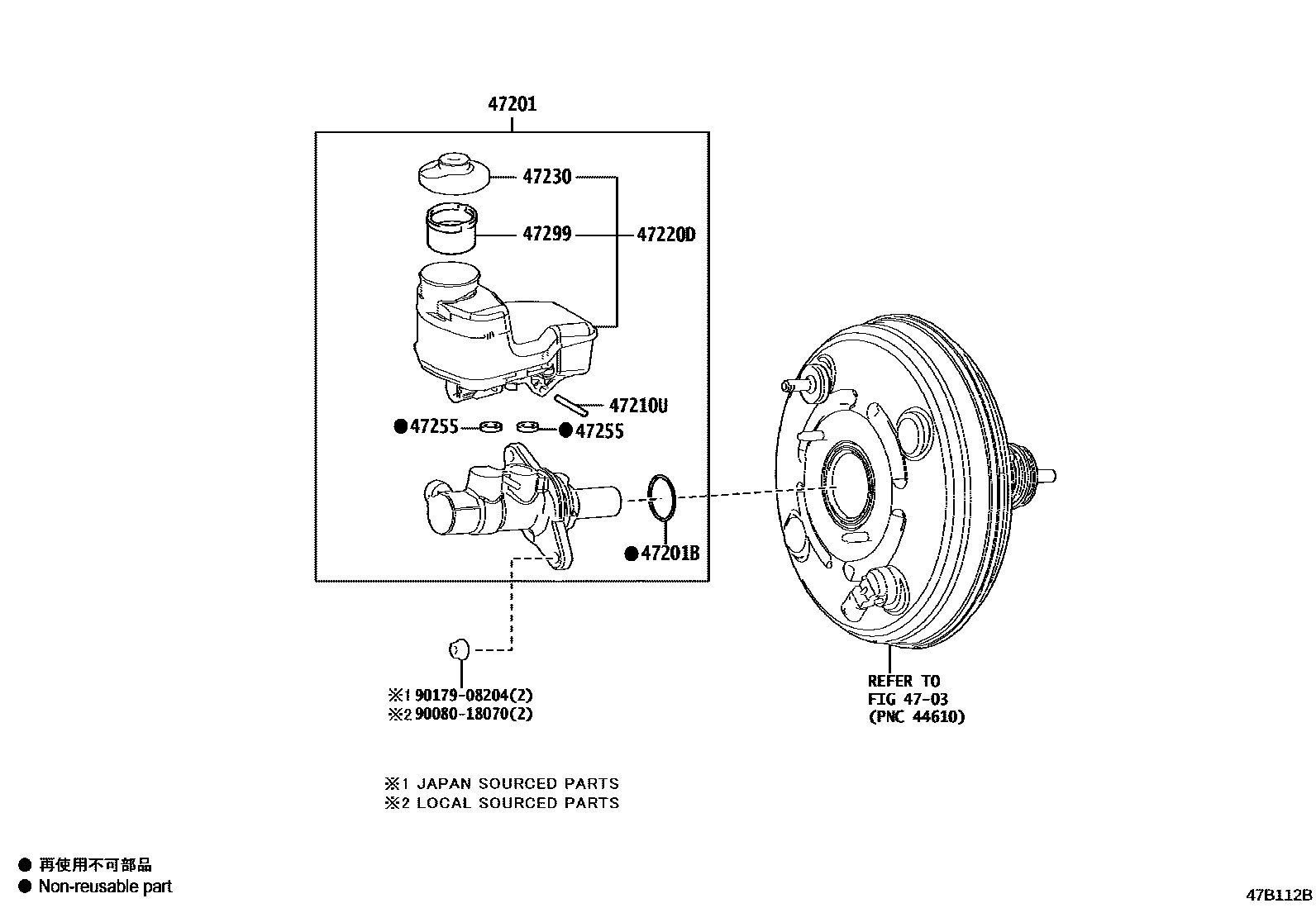

BRAKE MASTER CYLINDER

0001 1 0002 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-06510iAXXA55;GSX50..XSE202008-202107

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iGSX50201804-202008

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803iGSX50..LIMD,TOU,XLE202008

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-06260iAXXA55;GSX50..XSE202008-202107

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-01031iGSX50201804-202008

main47230-33330iAXXH50202002-202008

main47230-47090iAXXH51202008

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001×2iGSX50201804-202008

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGSX50201804-202008

9008018070

main90080-18070

9017908204

main90179-08204

10 parts on this diagram · 2 diagrams in section
