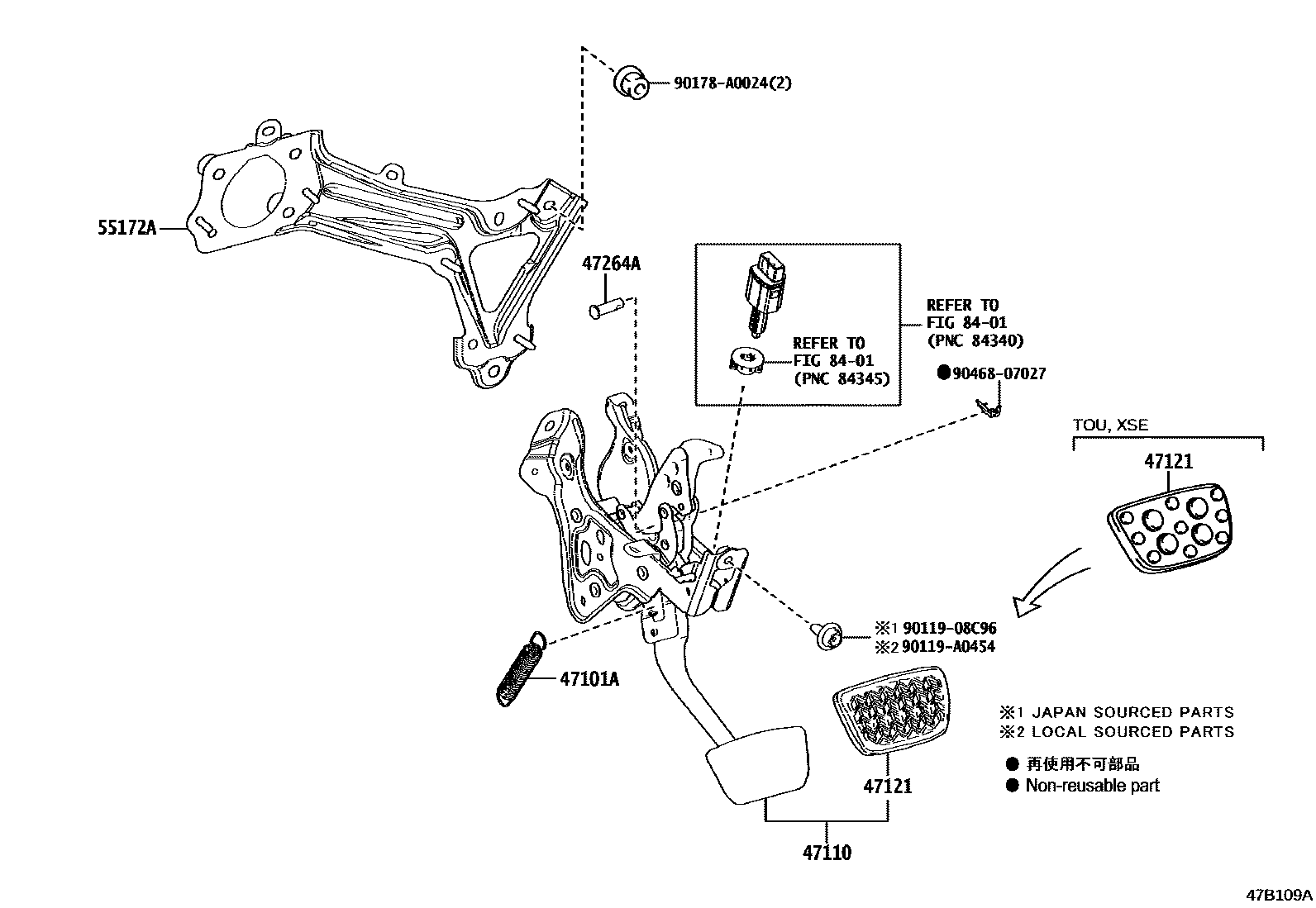

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iAXXH50,GSX50201804-202008

main90506-A0012iGSX50..XSE202008-202107

TRD PACKAGE

47110SUPPORT ASSY, BRAKE PEDAL

main47110-06310iGSX50..LIMD,XLE201804-202008

main47110-06311iGSX50..LIMD,XLE202109

main47110-06320iAXXH50..LIMD,XLE201805-202008

main47110-06321iAXXH51..LIMD,XLE202109

main47110-07050iGSX50..TOU202008-202108

main47110-07051iGSX50..TOU202109

main47110-07060iAXXH50..XSE201805-202008

main47110-07061iAXXH51..XSE202109

47121PAD, BRAKE PEDAL

main47121-34010iGSX50..TOU;AXXH51..XSE202109

main47121-48010iAXXH50,GSX50..LIMD,XLE201804-202008

main47121-48020iAXXH50,GSX50..TOU,XSE201804-202008

main47121-62010iAXXH51,GSX50..LIMD,XLE202109

47264APIN(FOR PUSH ROD)

main90240-08082iAXXH50,GSX50201804-202008

55172ABASE, BRAKE PEDAL SUPPORT

main55172-06070iAXXH50,GSX50201804-201911

main55172-33040iAXXH50,GSX50201911-202008

(J)

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C96

main90119-08C96

90119A0454

main90119-A0454

90178A0024

main90178-A0024

9046807027

main90468-07027

10 parts on this diagram · 1 diagram in section
