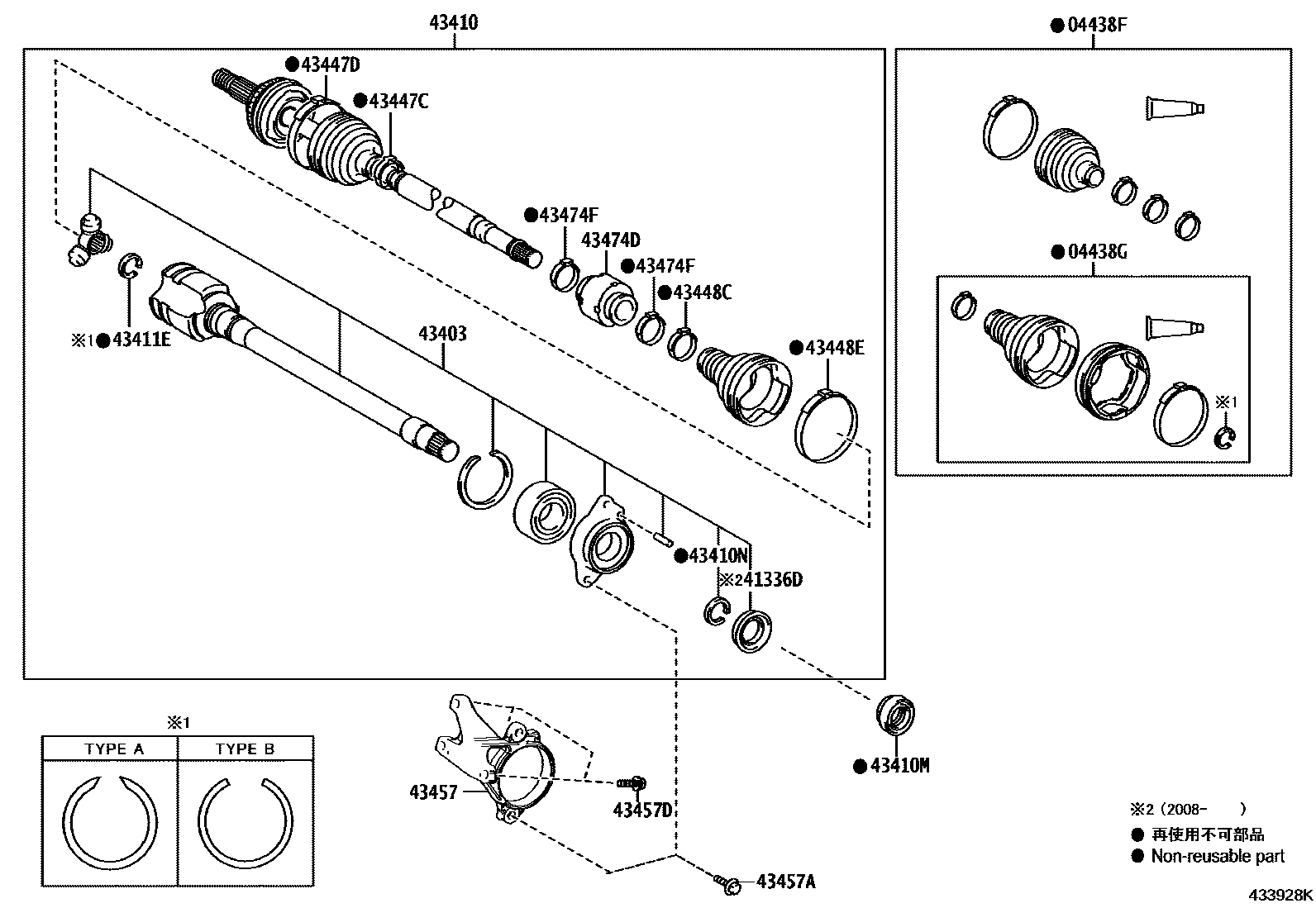

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1RH 0004 1LH 0005 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-08180iAXXH50201805-201905

PNC 43411E=TYPE A

main04427-08190iGSX50201804-201902

main04427-08240iGSX50201902-202008

main04427-08260iAXXH50201905-202008

PNC 43411E=TYPE B

main04427-0R170iAXXA55202008-202107

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-08070iAXXH50201805-201905

PNC 43411E=TYPE A

main04437-08110iAXXH51;GSX50..LIMD,TOU,XLE202008

main04437-0R066iAXXA55202008-202107

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-08020iAXXH51;GSX50..LIMD,TOU,XLE202008

main41336-0R010iAXXA55202008-202107

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-06030iAXXH50201805-202008

main43403-06040iGSX50..XSE202008-202107

main43403-07010iAXXH50..XLE201805-202008

KOREA SPEC

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-06A00iAXXH50201805-201904

main43410-06A01iAXXH51202008

main43410-06A70iGSX50201804-201904

main43410-06A71iGSX50..LIMD,TOU,XLE202008

main43410-06A80iAXXA55202008-202107

main43410-07080iAXXH50..XLE201805-201904

KOREA SPEC

main43410-07081iAXXH50..XLE201905-202008

KOREA SPEC

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40046iAXXH51,GSX50202008

main90316-34001iAXXA55202008

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-0R050iAXXA55202008-202107

main90080-52013iAXXH50,GSX50201804-202008

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-06450iAXXH51;GSX50..LIMD,TOU,XLE202008

main43425-08040iAXXH50201804-201905

TYPE A:REFER ILLUST.

main43425-0R030iAXXA55202008-202107

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-04030iAXXH51202008

main42345-06A20iGSX50..LIMD,TOU,XLE202008

main42345-0R040iAXXA55202008-202107

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06080iAXXH51202008

main42345-06A30iGSX50..XSE202008-202107

main42345-0R030iAXXA55202008-202107

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-08080iAXXH50,GSX50201804-202008

main42345-0R080iAXXA55202008-202107

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-06A10iAXXA55202008-202107

main42345-08110iGSX50..XSE202008-202107

43457BRACKET, DRIVE SHAFT BEARING

main43457-06150iAXXH50201805-202008

main43457-06210iGSX50..XSE202008-202107

main43457-42190iAXXA55202008-202107

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-A0259×2iAXXH51;GSX50..LIMD,TOU,XLE202008

*10-1.25PX22-19.5

main90119-10461iAXXA55202008-202107

*10-1.25PX19.8-8.3

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90080-10087×3iAXXH50,GSX50201804-202008

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-06270iAXXA55202008-202107

main43474-06540iGSX50..XSE202008-202107

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-06790×2iAXXH50,GSX50201804-202008

main42345-07090×2iAXXA55202008-202107

17 parts on this diagram · 5 diagrams in section
