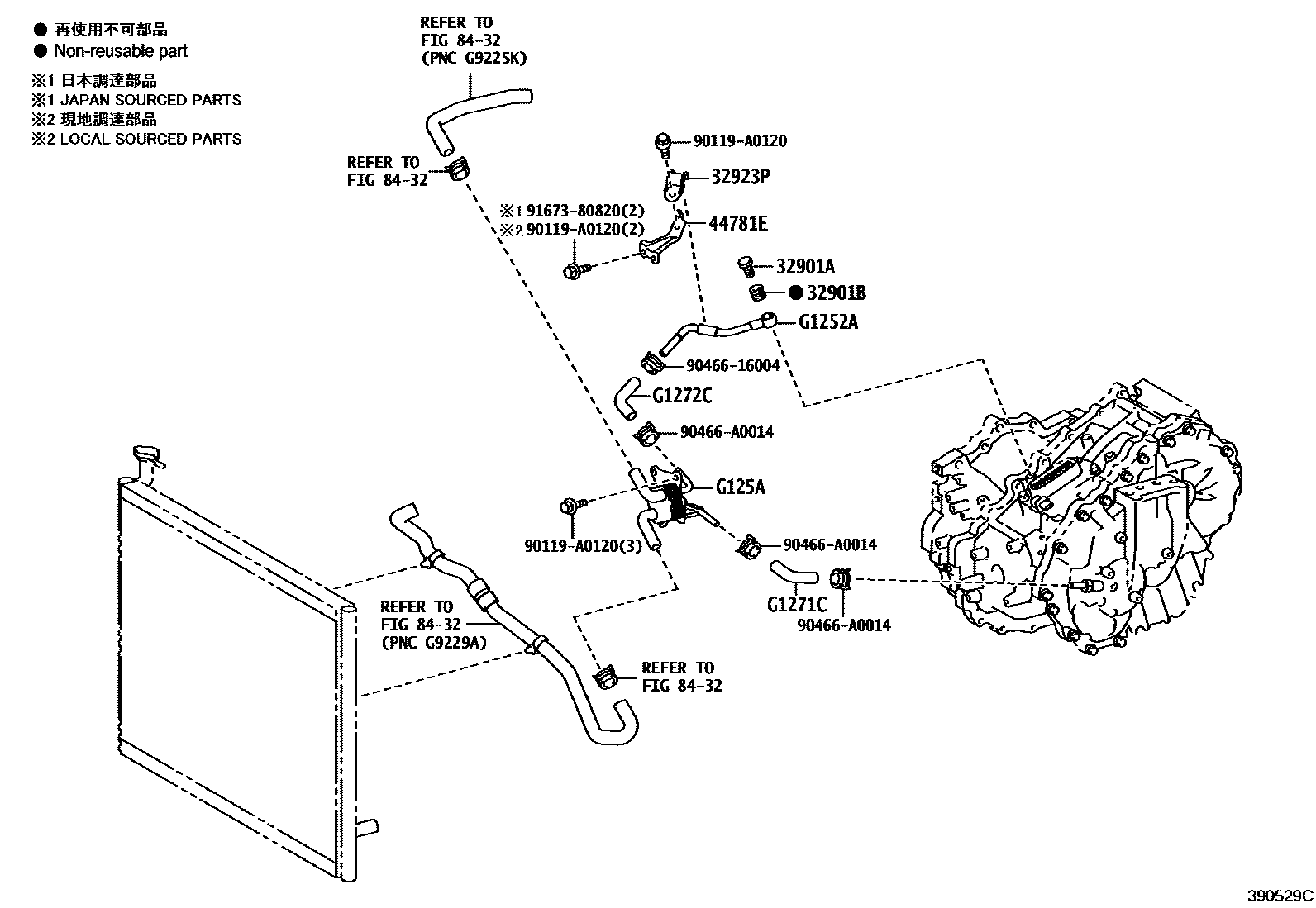

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iAXXH50201805-202008

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iAXXH50201805-202008

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-52040iAXXH50201805-202008

44781EBRACKET, HOSE

main44781-33020iAXXH50201805-202008

8432INVERTER COOLING

→ Go to FIG 84-32

G1252APIPE, MOTOR COOLING, NO.2

mainG125233010iAXXH50201805-202008

G125ACOOLER, MOTOR COOLING

mainG125A33010iAXXH50201805-202008

G1271CHOSE, MOTOR COOLING, NO.1

mainG127106010iAXXH50201805-202008

G1272CHOSE, MOTOR COOLING, NO.2

mainG127233010iAXXH50201805-202008

90119A0120

main90119-A0120

9046616004

main90466-16004

90466A0014

main90466-A0014

9167380820

main91673-80820

13 parts on this diagram · 1 diagram in section
