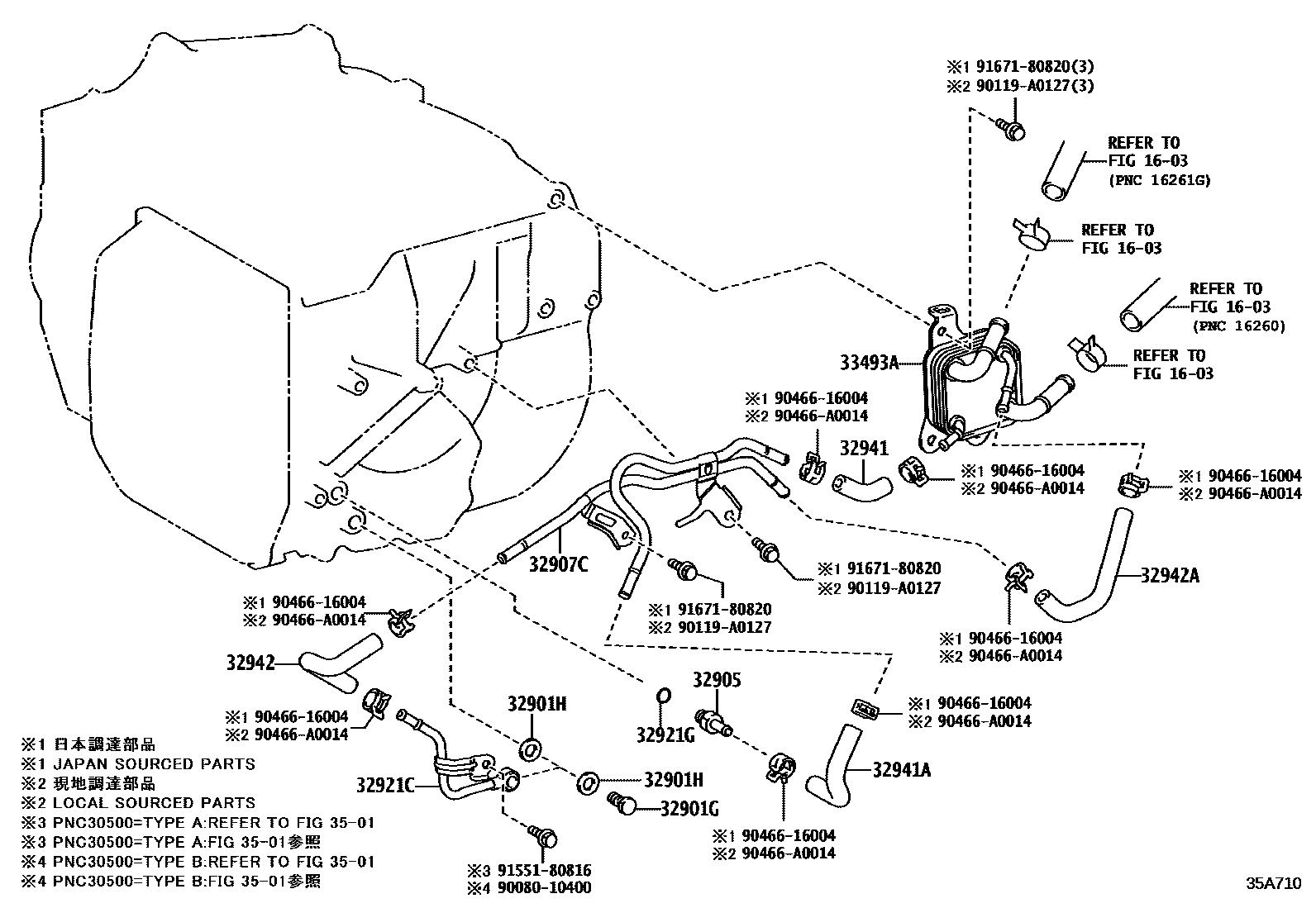

OIL COOLER & TUBE (ATM)

0001 1UB80F 0002 1UA80E 0003 1UA80E

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

32901GBOLT, UNION(FOR OIL COOLER)

main90401-14003iAXXA55; GSX50202008

TYPE B:REFER 35-01,TYPE A:REFER 35-01

32901HGASKET(FOR OIL COOLER UNION)

main90430-14016×2iAXXA55; AXXA55,GSX50202008

TYPE A:REFER 35-01; TYPE B:REFER 35-01

main90430-A0007×2iGSX50..LIMD,TOU,XLE202008

TYPE B:REFER 35-01

32905TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1

main90404-14030iGSX50201804-202008

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-06030iGSX50201804-201906

main32907-0E030iGSX50201907-202008

main32907-0R030iAXXA55202008-202107

32921CUNION(FOR OIL COOLER TUBE)

main32901-48020iAXXA55202008

TYPE B:REFER 35-01,TYPE A:REFER 35-01

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11031iGSX50201804-202008

32941HOSE, OIL COOLER INLET, NO.1

main32941-06160iGSX50201804-201906

NO.1

main32941-06170iGSX50201804-202008

NO.2

main32941-0R070iGSX50201907-202008

NO.1

32941AHOSE, OIL COOLER INLET, NO.2

main32941-0R070iAXXA55202008-202107

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-06150iGSX50201804-202008

NO.1

main32942-06160iAXXA55; GSX50..XSE202008-202107

NO.2

32942AHOSE, OIL COOLER OUTLET, NO.2

main32942-06150iAXXA55202008-202107

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-06020iGSX50201804-201906

main33493-06021iAXXA55;GSX50..XSE202008-202107

9008010400

main90080-10400

90119A0127

main90119-A0127

9046616004

main90466-16004

90466A0014

main90466-A0014

9155180816

main91551-80816

9167180820

main91671-80820

18 parts on this diagram · 3 diagrams in section
