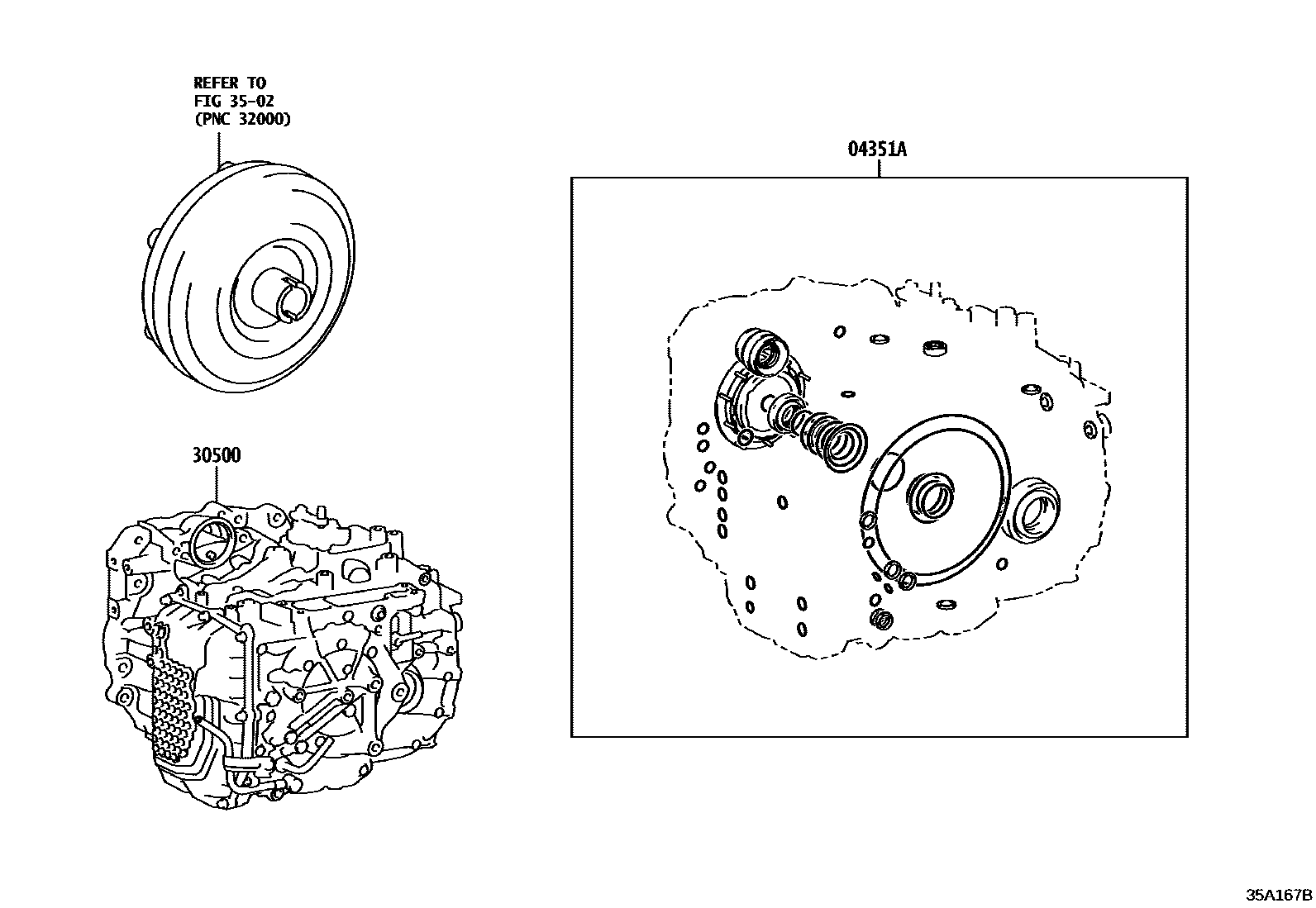

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1UA80E 0002 1UB80F 0003 1UA80E 0004 1UA80E 0005 1UB80F

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-48300iGSX50202008-202012

TYPE B:REFER ILLUST.

30500TRANSAXLE ASSY, AUTOMATIC

main30500-06080iGSX50..XSE202008-202107

UA80E,TYPE B:REFER ILLUST.

main30500-0R060iAXXA55202008

UB80F,TYPE B:REFER ILLUST.

main30500-33A01iGSX50202008

UA80E,TYPE A:REFER ILLUST.

main30500-42360iAXXA55202008

UB80F,TYPE A:REFER ILLUST.

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

3 parts on this diagram · 5 diagrams in section
