VACUUM PIPING

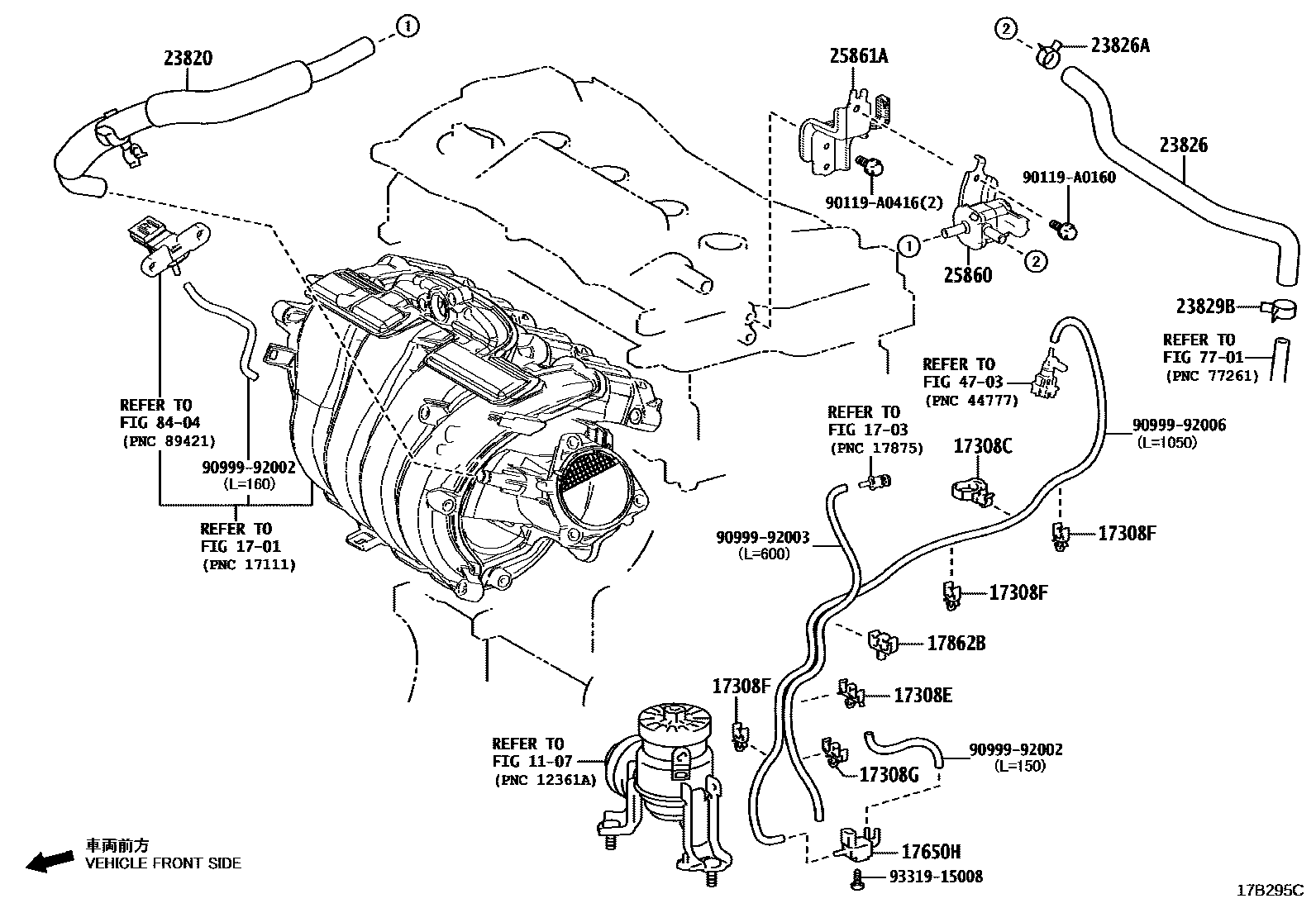

Parts diagram
1107MOUNTING
→ Go to FIG 11-07
1701MANIFOLD
→ Go to FIG 17-01
1703AIR CLEANER
→ Go to FIG 17-03
17308CCLAMP(FOR VACUUM HOSE)
main44783-33040i202008
NO.1
main44783-33050i201804-202008
NO.2
main44783-33060i202008-202108
NO.3
17308ECLAMP, NO.3(FOR VACUUM HOSE)
main44783-42070i202008
main44783-42080i202008-202108
17308FCLAMP, NO.4(FOR VACUUM HOSE)
main44783-42040×3i202008-202108
17308GCLAMP, NO.5(FOR VACUUM HOSE)
main90469-07012×3i201804-202008
17650HVALVE, VACUUM SWITCHING
main90910-12059i202008-202108
(J)
main90910-TC003i202008-202108
(L)
17862BCLAMP, HOSE
main44783-42050i202008-202108
23820HOSE ASSY, FUEL VAPOR FEED
main23820-F0081i202008
NO.1:REFER ILLUST.
main23820-F0110i202008-202108
main23820-F0150i202008
NO.2:REFER ILLUST.
23826HOSE, FUEL VAPOR FEED, NO.1
main23826-0P270i201804-202008
main23826-0P280i202008
NO.2
main23826-F0071i202008-202108
main23826-F0080i202008
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
main90467-16014i201804-202008
main96133-41501i202008-202108
23829BCLIP(FOR FUEL VAPOR FEED HOSE)
main90466-A0032i202008
(L)
main96136-41901i202008
(J)
25860VALVE ASSY, VACUUM SWITCHING, NO.1
main25860-0P030i201804-202008
NO.1
main25860-31120i202008
NO.2
main25860-F0010i202008-202108
main25860-F0020i201805-202008
25861ABRACKET, VACUUM SWITCHING VALVE, NO.2
main25862-25011i202008-202107
4703BRAKE BOOSTER & VACUUM TUBE
→ Go to FIG 47-03
7701FUEL TANK & TUBE
→ Go to FIG 77-01
8404ELECTRONIC FUEL INJECTION SYSTEM
→ Go to FIG 84-04
90119A0160
main90119-A0160
90119A0416
main90119-A0416
9099992002
main90999-92002
9099992003
main90999-92003
9099992006
main90999-92006
9331915008
main93319-15008

24 parts on this diagram · 3 diagrams in section
