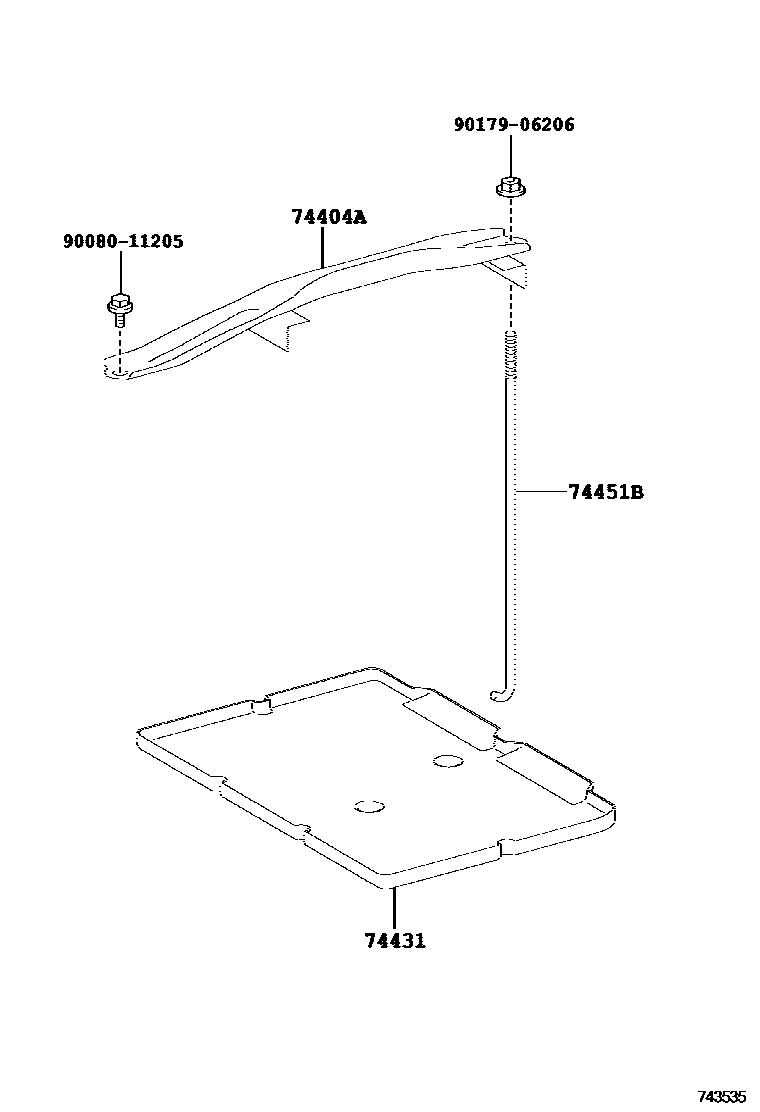

BATTERY CARRIER

0001 1 0002 1

74404ACLAMP SUB-ASSY, BATTERY

main74404-06130iGSX40201210-201510

main74440-06011iAVX40201211-201510

74431TRAY, BATTERY

main74431-08011iGSX40201210-201510

74451BBOLT, BATTERY CLAMP

main74451-06011iGSX40201210-201510

9008011205

main90080-11205

9017906206

main90179-06206

5 parts on this diagram · 2 diagrams in section
