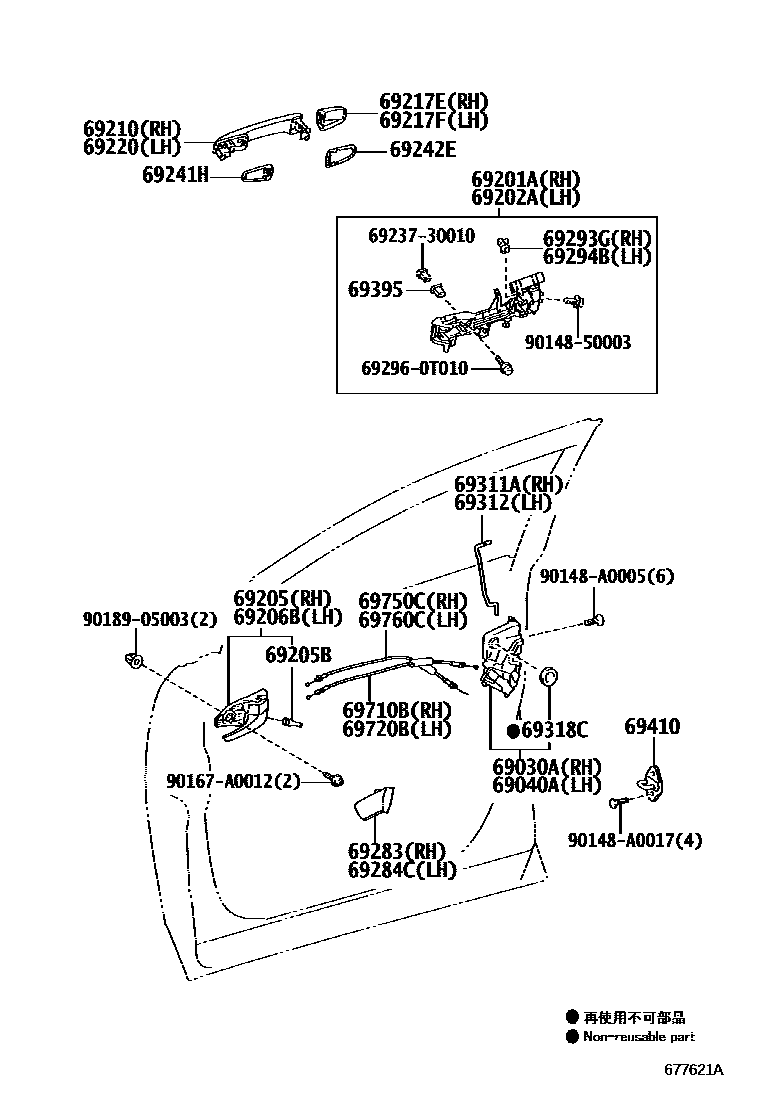

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM0#,1#,2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM0#,1#,2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
SILVER ME.,1J9
ATTITUDE BLACK MC.,218
BLACKISH RED MC.,3R0
DK.RED M.M.,3T0
LT.YELLOW M.M.,5B2
OLIVE M.M.,6T7
DK.BLUE M.M.,8W6
DK.BLUE MC.,8S6
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
SILVER ME.,1J9
ATTITUDE BLACK MC.,218
BLACKISH RED MC.,3R0
DK.RED M.M.,3T0
LT.YELLOW M.M.,5B2
OLIVE M.M.,6T7
DK.BLUE M.M.,8W6
DK.BLUE MC.,8S6
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
SILVER ME.,1J9
ATTITUDE BLACK MC.,218
BLACKISH RED MC.,3R0
DK.RED M.M.,3T0
LT.YELLOW M.M.,5B2
OLIVE M.M.,6T7
DK.BLUE M.M.,8W6
DK.BLUE MC.,8S6
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
SILVER ME.,1J9
ATTITUDE BLACK MC.,218
BLACKISH RED MC.,3R0
DK.RED M.M.,3T0
LT.YELLOW M.M.,5B2
OLIVE M.M.,6T7
DK.BLUE M.M.,8W6
DK.BLUE MC.,8S6
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM0#,1#,2#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM0#,1#,2#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69395BUSH(FOR DOOR OUTSIDE HANDLE)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
692960T010SCREW, DOOR INSIDE HANDLE
main69296-0T010
9014850003
main90148-50003
90148A0005
main90148-A0005
90148A0017
main90148-A0017
90167A0012
main90167-A0012
9018905003
main90189-05003
33 parts on this diagram · 1 diagram in section
