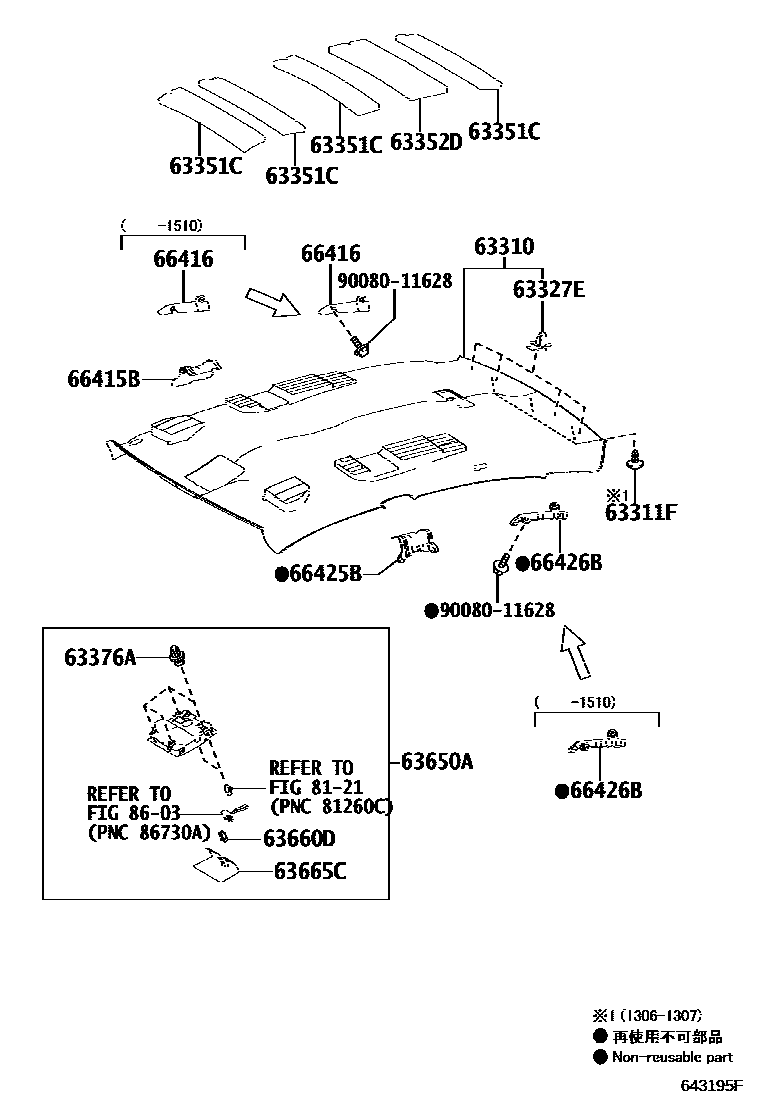

ROOF HEADLINING & SILENCER PAD
63310HEADLINING ASSY, ROOF
FLAXEN,TRIM0#
LT GRAY,TRIM1#,2#
FLAXEN,TRIM0#
LT GRAY,TRIM1#,2#
FLAXEN,TRIM0#
LT GRAY,TRIM1#,2#
FLAXEN,TRIM0#
LT GRAY,TRIM1#,2#
FLAXEN,TRIM0#
LT GRAY,TRIM1#,2#
DECONTENT PACKAGE,FLAXEN,TRIM0#
BLACK CAR PACKAGE,LT GRAY,TRIM2#; DECONTENT PACKAGE,LT GRAY,TRIM1#,2#
DECONTENT PACKAGE,FLAXEN,TRIM0#
DECONTENT PACKAGE,LT GRAY,TRIM1#,2#
BLACK CAR PACKAGE,FLAXEN,TRIM0#; DECONTENT PACKAGE,FLAXEN,TRIM0#
BLACK CAR PACKAGE,LT GRAY,TRIM1#,2#; DECONTENT PACKAGE,LT GRAY,TRIM1#,2#
BLACK CAR PACKAGE,FLAXEN,TRIM0#; DECONTENT PACKAGE,FLAXEN,TRIM0#
BLACK CAR PACKAGE,LT GRAY,TRIM1#,2#; DECONTENT PACKAGE,LT GRAY,TRIM1#,2#
63311FCLIP, ROOF HEADLINING, NO.1
FLAXEN,TRIM0#
LT.GRAY,TRIM1#,2#
63327EFASTENER, ROOF HEADLINING, NO.1
BLACK CAR PACKAGE; DECONTENT PACKAGE; NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.3:REFER ILLUST.
63351CPAD, ROOF HEADLINING
BLACK CAR PACKAGE; DECONTENT PACKAGE
63352DPAD, ROOF HEADLINING, NO.2
BLACK CAR PACKAGE; DECONTENT PACKAGE
63376ACLIP, HEADLINING, NO.2
63650ABOX ASSY, ROOF CONSOLE
FLAXEN,TRIM0#
LT.GRAY,TRIM1#,2#
MAYDAY SYSTEM-WITH,FLAXEN,TRIM0#
MAYDAY SYSTEM-WITH,LT.GRAY,TRIM1#,2#
DECONTENT PACKAGE&GARAGE OPENER-WITHOUT,FLAXEN,TRIM0#
BLACK CAR PACKAGE&GARAGE OPENER-WITHOUT,LT.GRAY,TRIM2#; DECONTENT PACKAGE&GARAGE OPENER-WITHOUT,LT.GRAY,TRIM1#,2#
CANADA SPEC,FLAXEN,TRIM0#; HAWAII SPEC,FLAXEN,TRIM0#; KOREA SPEC&HEADLAMP-LED,FLAXEN,TRIM0#; USA POSSESSION SPEC,FLAXEN,TRIM0#
CANADA SPEC,LT.GRAY,TRIM1#,2#; HAWAII SPEC,LT.GRAY,TRIM1#,2#; KOREA SPEC&HEADLAMP-LED,LT.GRAY,TRIM1#,2#; USA POSSESSION SPEC,LT.GRAY,TRIM1#,2#
MAYDAY SYSTEM-WITH,FLAXEN,TRIM0#
MAYDAY SYSTEM-WITH,LT.GRAY,TRIM1#,2#
63660DLOCK ASSY, ROOF CONSOLE
63665CMAT, ROOF CONSOLE BOX
66415BSPACER, SIDE RAIL, REAR NO.2 RH
66416SPACER, SIDE RAIL, REAR NO.3 RH
66425BSPACER, SIDE RAIL, REAR NO.2 LH
66426BSPACER, SIDE RAIL, REAR NO.3 LH
8121INTERIOR LAMP
8603NAVIGATION & FRONT MONITOR DISPLAY
9008011628
main90080-11628
16 parts on this diagram · 2 diagrams in section
