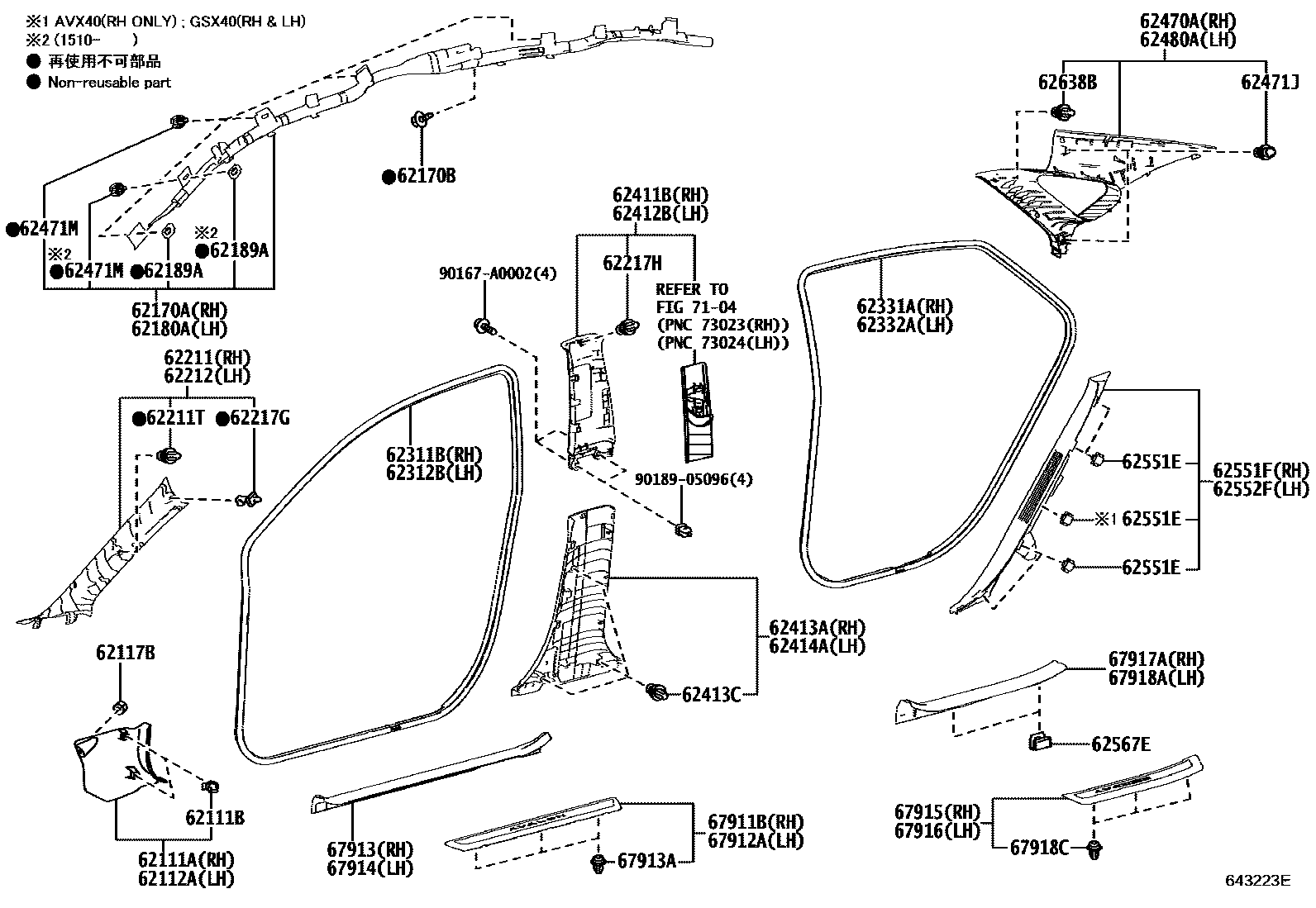

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111ATRIM SUB-ASSY, COWL SIDE, RH
BLACK,TRIM0#,1#,2#
62111BCLIP(FOR COWL SIDE TRIM)
62112ATRIM SUB-ASSY, COWL SIDE, LH
BLACK,TRIM0#,1#,2#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
62211GARNISH, FRONT PILLAR, RH
FLAXEN,TRIM0#
LT GRAY,TRIM1#,2#
FLAXEN,TRIM0#
LT GRAY,TRIM1#,2#
62211TCLIP(FOR FRONT PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
FLAXEN,TRIM0#
LT GRAY,TRIM1#,2#
FLAXEN,TRIM0#
LT GRAY,TRIM1#,2#
62217GCLIP, FRONT PILLAR GARNISH
62217HCLIP, CENTER PILLER GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62411BGARNISH, CENTER PILLAR, UPPER RH
FLAXEN,TRIM0#
LT GRAY,TRIM1#,2#
FLAXEN,TRIM0#
LT GRAY,TRIM1#,2#
62412BGARNISH, CENTER PILLAR, UPPER LH
FLAXEN,TRIM0#
LT GRAY,TRIM1#,2#
FLAXEN,TRIM0#
LT GRAY,TRIM1#,2#
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM0#,1#,2#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM0#,1#,2#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
FLAXEN,TRIM0#
LT.GRAY,TRIM1#,2#
62471JCLIP (FOR ROOF SIDE GARNISH)
62480AGARNISH ASSY, ROOF SIDE, INNER LH
FLAXEN,TRIM0#
LT.GRAY,TRIM1#,2#
62551ECLIP(FOR REAR SEAT SIDE GARNISH)
62551FGARNISH, REAR SEAT SIDE, RH
BLACK,TRIM0#,1#,2#
62552FGARNISH, REAR SEAT SIDE, LH
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
62638BCLIP
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
BLACK,TRIM0#,1#,2#
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
BLACK,TRIM0#,1#,2#
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM0#,1#,2#
67913ACLIP(FOR SCUFF PLATE)
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM0#,1#,2#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
67917APLATE, REAR DOOR SCUFF, RH
BLACK,TRIM0#,1#,2#
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM0#,1#,2#
67918CCLIP(FOR REAR SCUFF PLATE)
7104
90167A0002
main90167-A0002
9018905096
main90189-05096
44 parts on this diagram · 1 diagram in section
