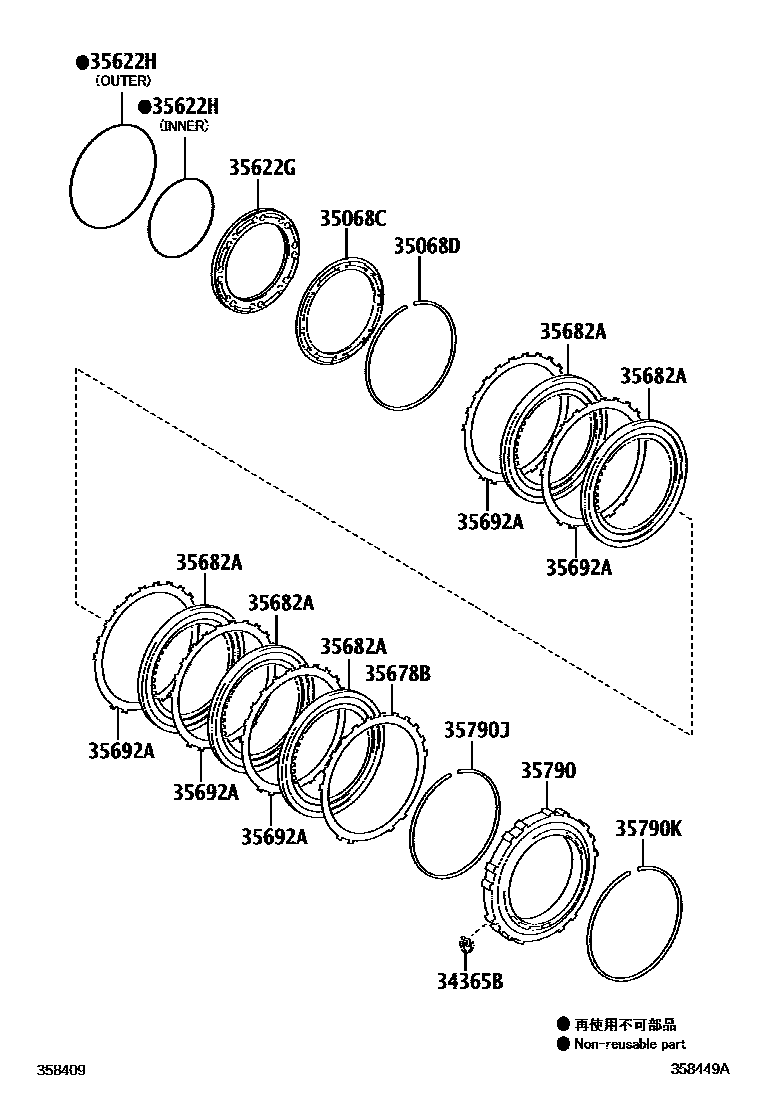

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
34365BRETAINER, OUTER RACE
35068CSPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
*325
*324
35068DRING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)
*324
*325
35622GPISTON, BRAKE, NO.2
*325
*324
35622HRING, O (FOR BRAKE PISTON NO.2)
*324,INNER
*324,OUTER
*325,INNER
*325,OUTER
35678BFLANGE, BRAKE, NO.2
T=4.0,MARK 40,*325
T=4.1,MARK 41,*325
T=4.2,MARK 42,*325
T=4.3,MARK 43,*325
T=4.4,MARK 44,*325
T=4.0,MARK 40,*324
T=4.1,MARK 41,*324
T=4.2,MARK 42,*324
T=4.3,MARK 43,*324
T=4.4,MARK 44,*324
35790CLUTCH ASSY, 1 WAY
*325
*324
*324
35790JRING, SNAP NO.1 (FOR 1 WAY CLUTCH)
*324
*325
35790KRING, SNAP NO.2 (FOR 1 WAY CLUTCH)
*324
*325
11 parts on this diagram · 1 diagram in section
