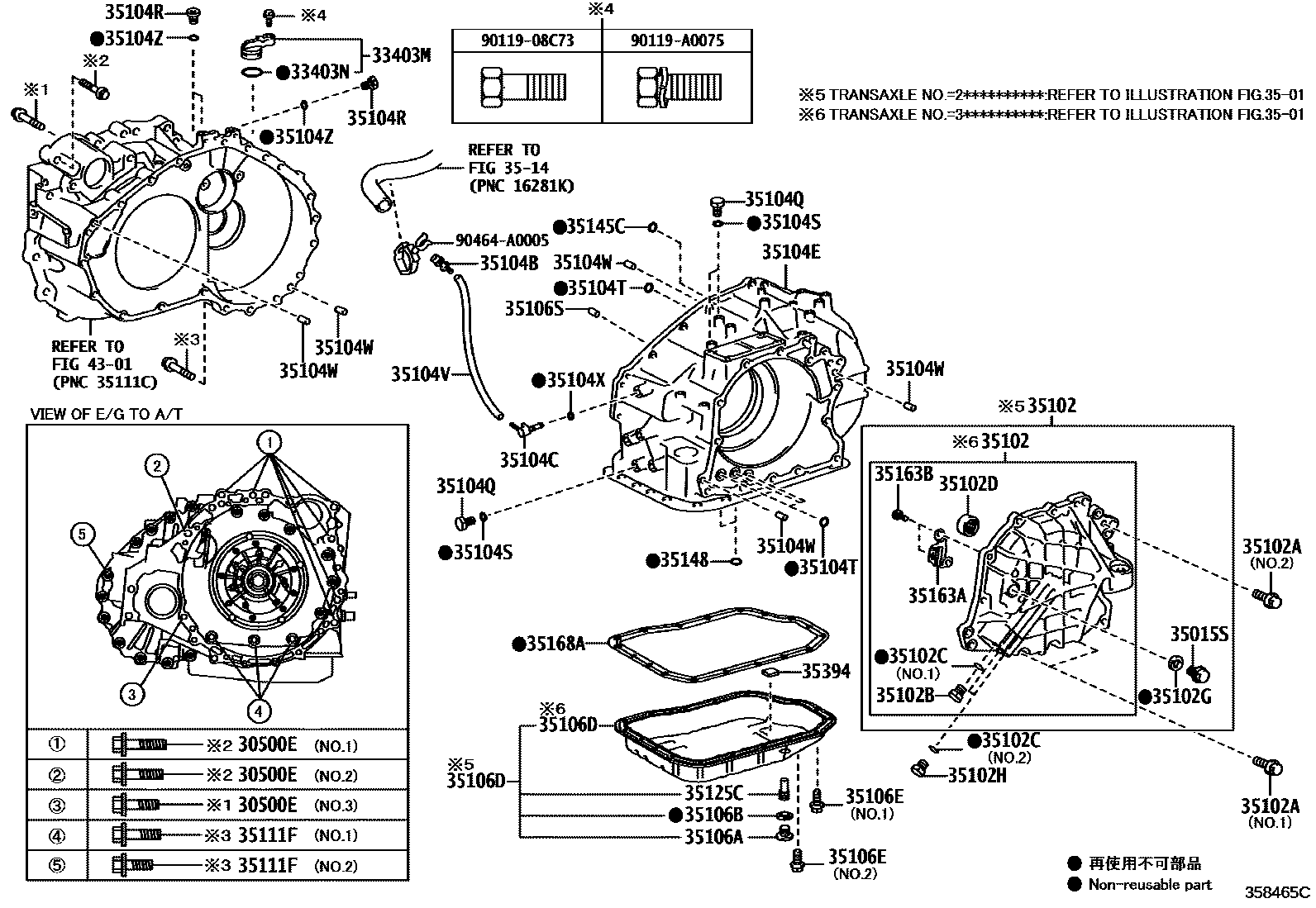

TRANSMISSION CASE & OIL PAN (ATM)
30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)
*10-1.25PX41-30,NO.3
*12-1.25PX55-30,NO.1
*12-1.25PX50-30,NO.2
33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)
33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)
*324
*325
35102COVER SUB-ASSY, TRANSAXLE REAR
*325
*325
*324
35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)
*8-1.25PX28-22,*324,NO.1
*8-1.25PX28-22,*325,NO.1
*8-1.25PX28-22,*325,NO.2
*8-1.25PX28-22,*324,NO.2
35102BPLUG(FOR TRANSAXLE REAR COVER)
*325
*324
35102CRING, O(FOR TRANSAXLE REAR COVER PULG)
*325,NO.1
*325,NO.2
*324,NO.1 & NO.2
35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)
*325
*324
35102GGASKET (FOR TRANSAXLE REAR COVER )
*324
*325
35102HPLUG, NO.2 (FOR TRANSAXLE REAR COVER)
*324
*325
35104BPLUG, BREATHER, NO.1 (ATM)
35104CPLUG, BREATHER, NO.2 (ATM)
35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE
*325
*324
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
*324
*325
35104RPLUG, NO.2 (FOR TRANSAXLE CASE)
*324
*325
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
*325
*324
35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)
*324
*325
35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)
35104XRING, O (FOR BREATHER PLUG)
35104ZGASKET (FOR TRANSAXLE CASE)
35106APLUG SUB-ASSY, DRAIN (ATM)
35106BGASKET, DRAIN PLUG (ATM)
*324
*325
35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
*325
*324
35106EBOLT (FOR TRANSAXLE OIL PAN)
*325,NO.2
*324,NO.1 & NO.2
*325,NO.1
35106SPIN, RING (FOR TRANSAXLE CASE)
*324
*325
35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
*8-1.25PX45-22,*324,NO.1
*8-1.25PX45-22,*325,NO.1
*8-1.25PX45-22,*325,NO.2
*8-1.25PX45-22,*324,NO.2
35125CTUBE, TRANSMISSION OIL FILLER, NO.1
*325
*324
3514
35145CGASKET, TRANSAXLE CASE
*325
*324
35148GASKET, GOVERNOR APPLY, NO.1
*325
*324
35163APLATE, TRANSAXLE REAR COVER
*325
*324
35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)
*325
*324
35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN
*325
*324
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
*325
*324
4301
9011908C73
main90119-08C73
90119A0075
main90119-A0075
90464A0005
main90464-A0005
40 parts on this diagram · 1 diagram in section
