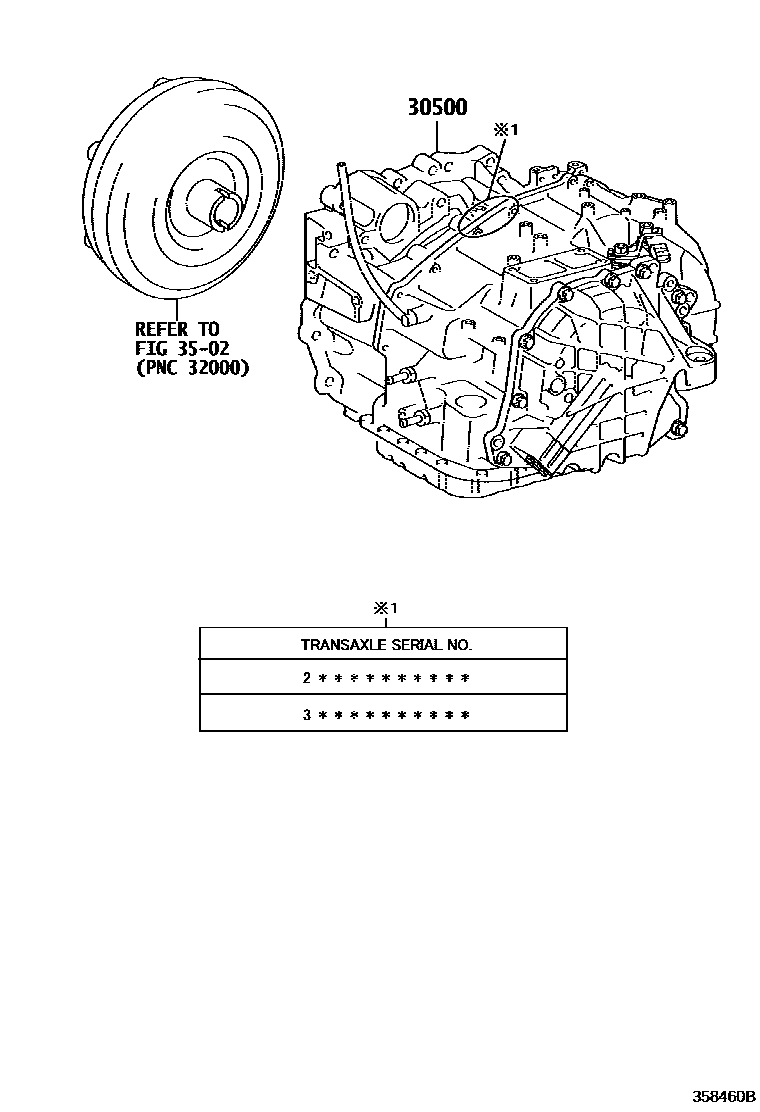

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

Parts diagram

30500TRANSAXLE ASSY, AUTOMATIC

main30500-06050i201210-201408

U660E,*323

main30500-06051i201408-201510

U660E,*323

main30500-33640i201210-201402

U660E,*322

main30500-33641i201402-201510

U660E,*322

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

2 parts on this diagram · 1 diagram in section
