AIR CLEANER

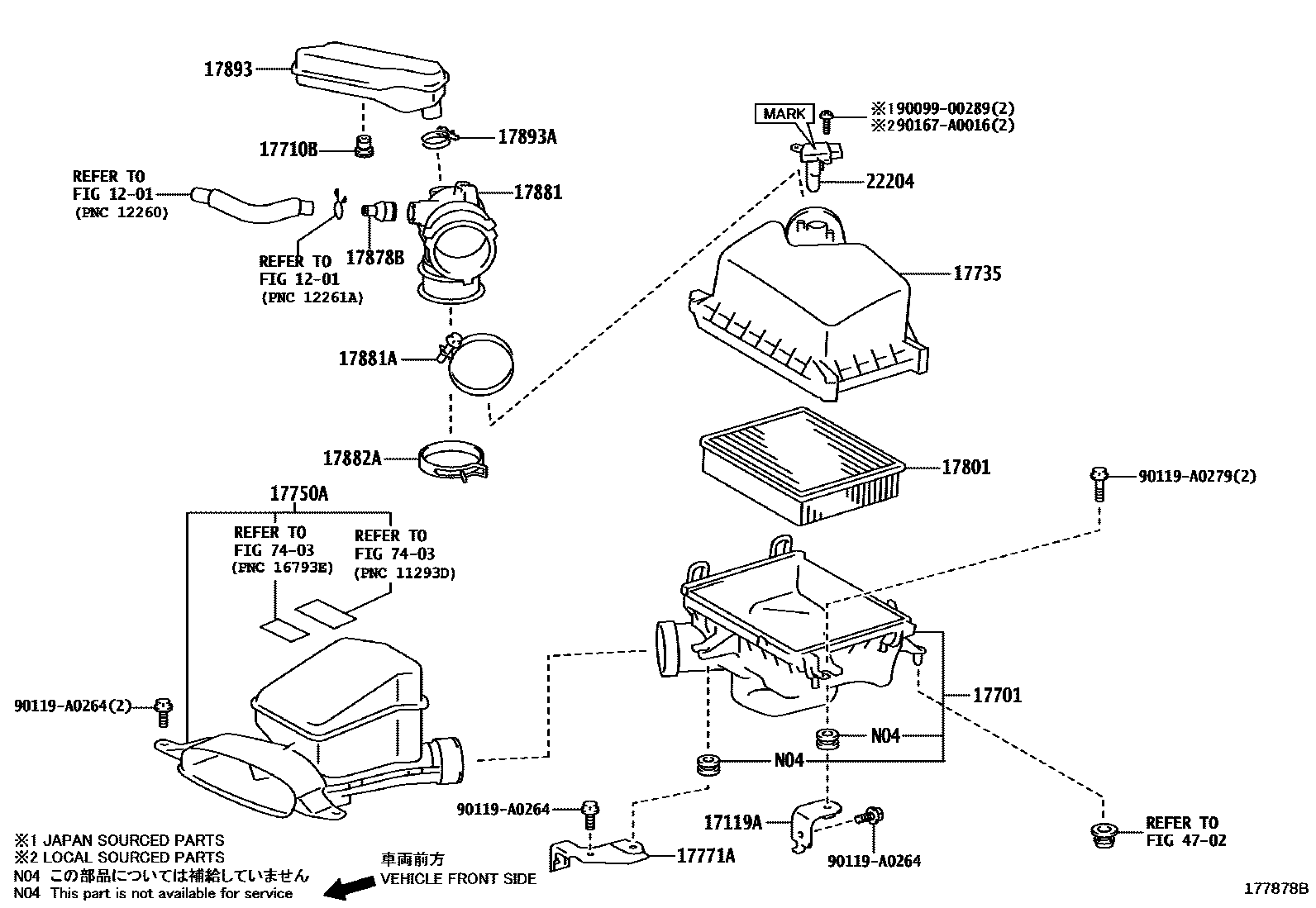

Parts diagram

1201VENTILATION HOSE

→ Go to FIG 12-01

17119ABRACKET, AIR CLEANER

main17119-0V020i201510

main17119-0V030i201211-201403

main17119-0V031i201510

17701CASE SUB-ASSY, AIR CLEANER

main17701-0P070i201210-201510

main17701-0V030i201510

17710BGROMMET

main90480-16049i201211-201510

17735CAP, AIR CLEANER

main17735-0P100i201510

main17735-0V030i201510

17750AINLET ASSY, AIR CLEANER

main17750-0V040i201211-201510

main17750-0V041i201605

17771ABRACKET, AIR CLEANER

main17771-0V010i201210-201510

main17771-0V020i201510-201701

main17771-36030i201701

(L)

main17771-36040i201701

(J)

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0P051i201210-201510

MARK = MADE IN USA

main17801-0V020i201510

(L)

main17801-31131i201510

MARK = MADE IN JAPAN

main17801-38011i201510

(J)

17878BTUBE, VENTILATION

main17878-0P020i201510

main17878-0V010i201510

17881HOSE, AIR CLEANER, NO.1

main17881-0P130i201510

main17881-0V090i201510

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10880i201211-201510

main96111-10900×2i201210-201510

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i201211-201510

17893RESONATOR, INTAKE AIR

main17893-0P120i201210-201510

main17893-0V070i201211-201510

17893ACLAMP, HOSE

main96111-10380i201210-201510

main96111-10430i201510

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0V010i201510

MARK 22204-0V010

main22204-0V020i201510

MARK 22204-0V020

main22204-28010i201510

MARK 22204-28010

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

9009900289

main90099-00289

90119A0264

main90119-A0264

90119A0279

main90119-A0279

90167A0016

main90167-A0016

21 parts on this diagram · 3 diagrams in section
