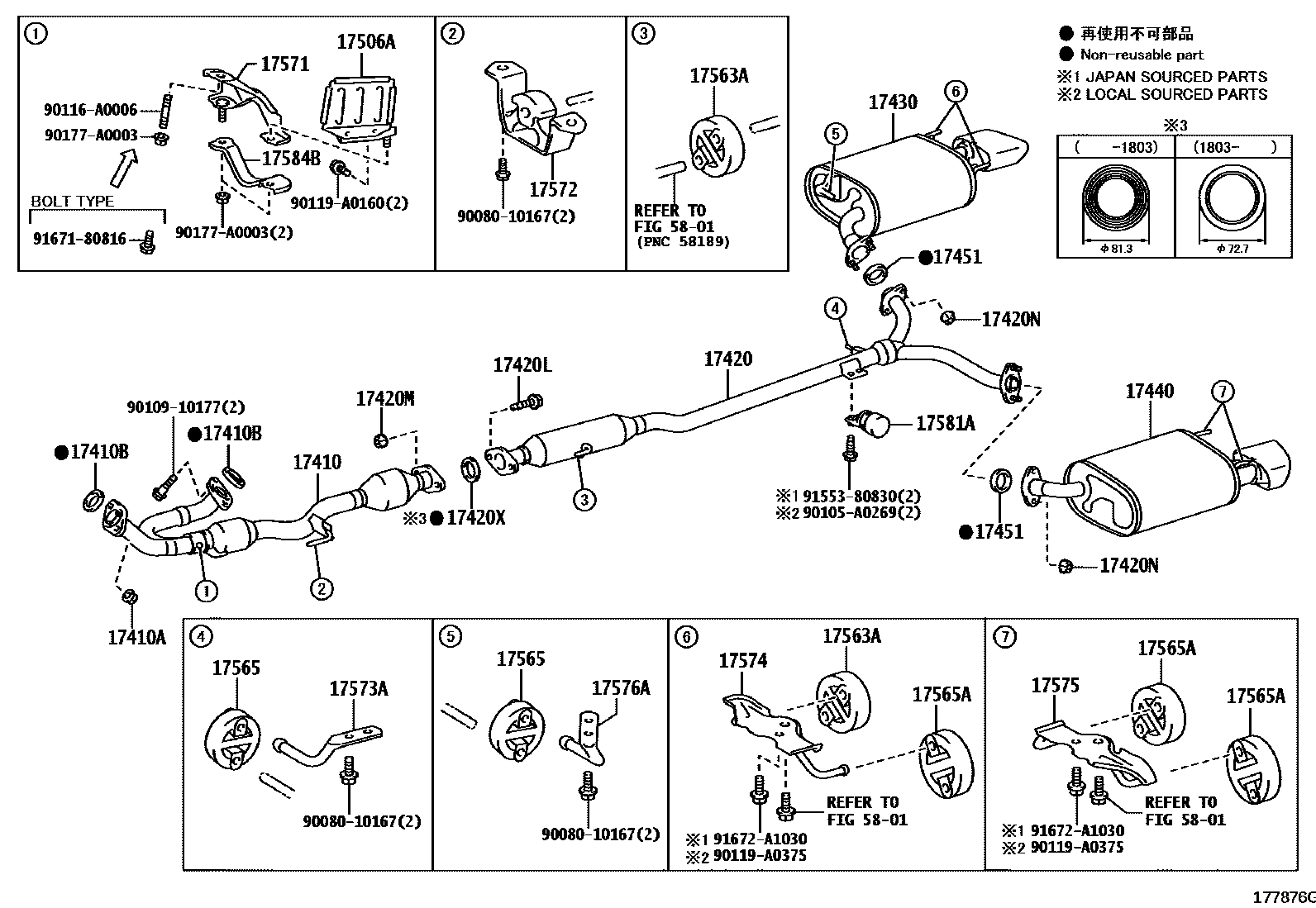

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
(L)
(J)
17420PIPE ASSY, EXHAUST, CENTER
17420LBOLT, FLANGE(FOR EXHAUST PIPE)
17420MNUT, LOCK(FOR EXHAUST PIPE)
17420NNUT, LOCK(FOR EXHAUST TAILPIPE)
17420XGASKET, EXHAUST PIPE, CENTER
(L)
(J)
17430PIPE ASSY, EXHAUST, TAIL
17440PIPE, EXHAUST TAIL, LH
17451GASKET, EXHAUST PIPE
(L)
(J)
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17563ASUPPORT, EXHAUST PIPE, NO.3
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6
17581ADAMPER, EXHAUST PIPE
17584BBRACKET, EXHAUST PIPE NO.1 SUPPORT
5801FLOOR PAN & LOWER BACK PANEL
9008010167
main90080-10167
90105A0269
main90105-A0269
9010910177
main90109-10177
90116A0006
main90116-A0006
90119A0160
main90119-A0160
90119A0375
main90119-A0375
90177A0003
main90177-A0003
9155380830
main91553-80830
9167180816
main91671-80816
91672A1030
main91672-A1030
34 parts on this diagram · 2 diagrams in section
