ENGINE OIL COOLER

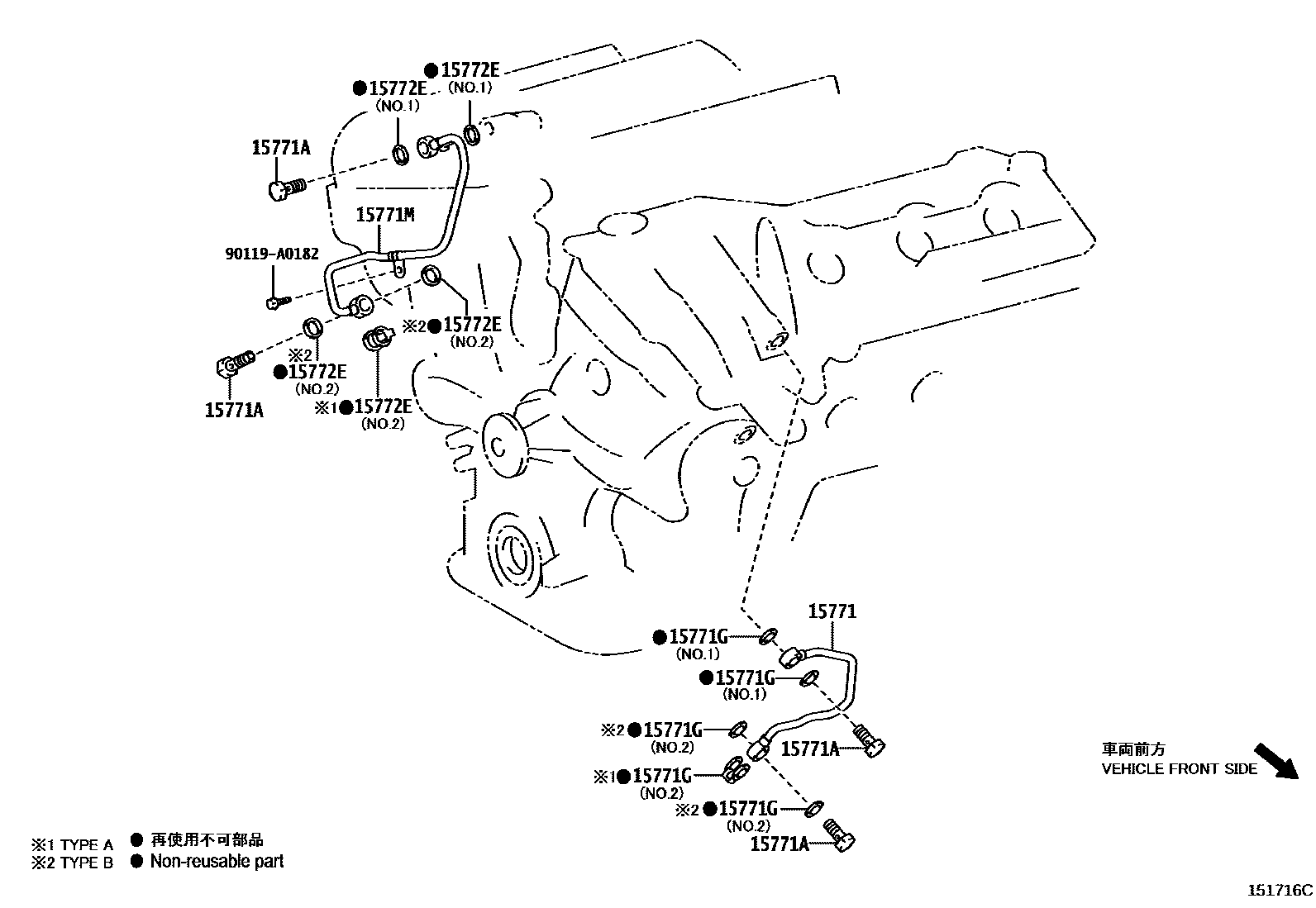

Parts diagram

15771PIPE, OIL, NO.1

main15771-31010i201210-201510

15771AUNION(FOR OIL PIPE)

main90401-16043×4i201210-201510

15771GGASKET

main90430-16016i201510

NO.2,TYPE A

main90430-16017×2i201510

NO.1

15771MPIPE, OIL

main15772-31030i201210-201510

15772EGASKET(FOR OIL PIPE)

main90430-16016i201210-201510

NO.2,TYPE A

main90430-16017×2i201210-201510

NO.1

90119A0182

main90119-A0182

6 parts on this diagram · 1 diagram in section
