HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1CONTROL PANEL 0003 1DUCT 0004 1DUCT 0005 1SENSOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

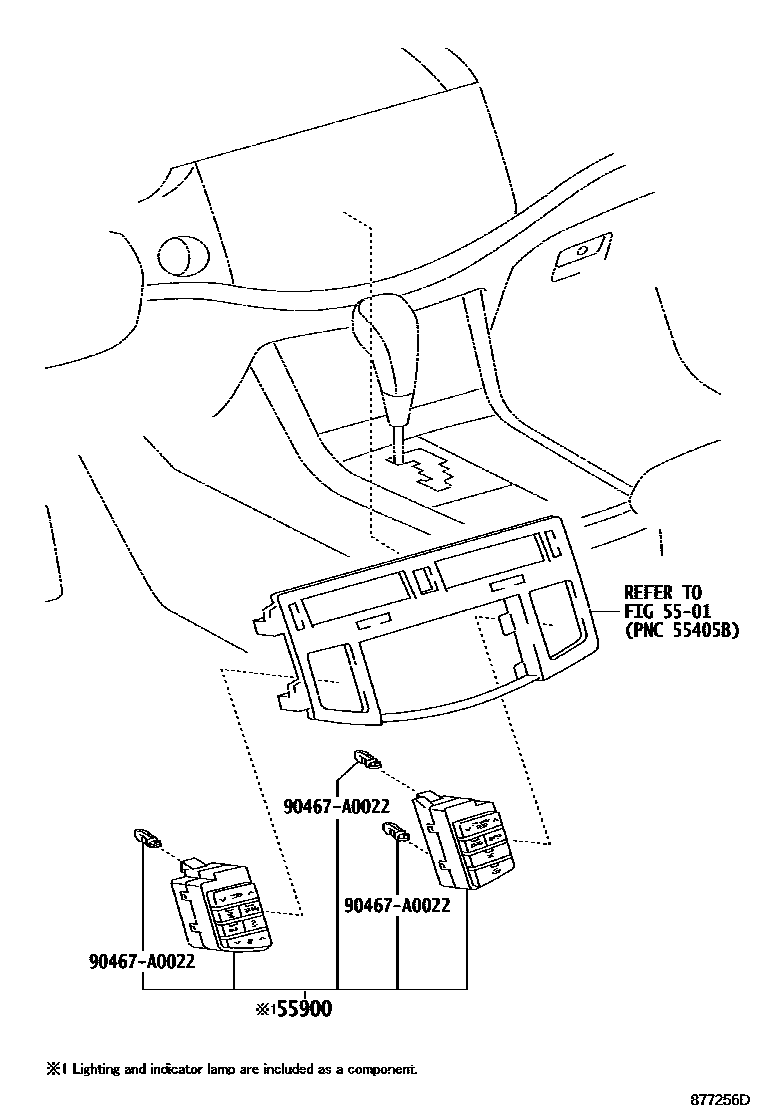

55900CONTROL ASSY, AIR CONDITIONER

main55900-07160supersedes 55900-07170iGSX30..LIMD,XLS200501-200707

main55900-07170iGSX30..XL200501-200707

main55900-07180iGSX30201003

90467A0022

main90467-A0022

3 parts on this diagram · 5 diagrams in section
