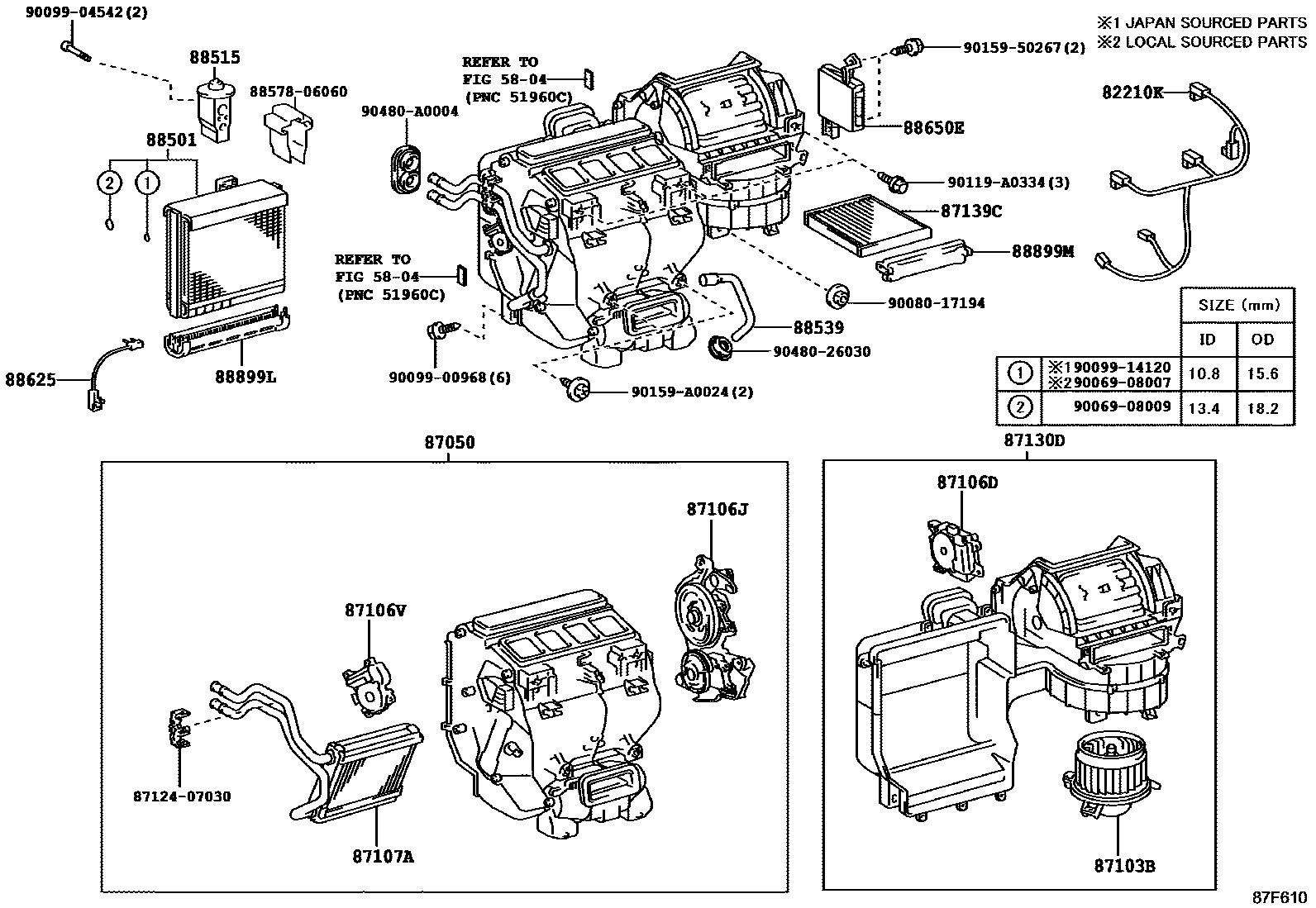

HEATING & AIR CONDITIONING - COOLER UNIT

5804MAT & CARPET

→ Go to FIG 58-04

82210KHARNESS ASSY, AIR CONDITIONER

main82212-06121iGSX30200802-201003

main82212-07010iGSX30200501-200707

87050RADIATOR ASSY, AIR CONDITIONER

main87050-06510iGSX30200602-200704

main87050-06511iGSX30..XL200707

main87050-06580iGSX30201205-201210

main87050-07130iGSX30200501-200602

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-07040iGSX30200707-200806

main87103-0E040iGSX30..LIMD,XLS200807-201003

87106DSERVO SUB-ASSY, DAMPER, NO.1

main87106-07140iGSX30201003

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-06250iGSX30200705-200707

main87106-06300iGSX30201205

main87106-07110iGSX30200501-200705

87106VSERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2)

main87106-07120iGSX30201003

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-07030iGSX30200501-200707

87130DBLOWER ASSY

main87130-06330iGSX30201205-201210

main87130-07070iGSX30200501-200611

main87130-07071iGSX30200611-200707

87139CFILTER, CLEAN AIR

main87139-02090iGSX30201111-201210

POLLEN FILTER

main87139-07010iGSX30..LIMD,XLS200707-201003

main87139-50060iGSX30201003-201204

DEODORANT FILTER

main87139-50100iGSX30201205-201210

*DPF

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-06110iGSX30200602-200707

main88501-06111iGSX30200807-200902

main88501-06112iGSX30201003-201010

main88501-06230iGSX30201205

main88501-07040iGSX30200501-200602

main88501-28400iGSX30200805-200807

main88501-48311iGSX30201010-201205

88515VALVE, COOLER EXPANSION

main88515-07030iGSX30201003-201205

main88515-68010iGSX30201205-201210

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-06120iGSX30200602-200610

main88539-06121iGSX30200707-201003

main88539-07040iGSX30200501-200601

88625THERMISTOR, COOLER, NO.1

main88620-06020iGSX30..LIMD,XLS200902-201003

main88625-41030iGSX30200501-200707

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-07090iGSX30..XL,XLS200501-200602

main88650-07100iGSX30..LIMD200501-200602

main88650-07110iGSX30..XL,XLS200602-200707

main88650-07120iGSX30..LIMD200602-200707

main88650-07130iGSX30..XLS200707-201003

main88650-07140iGSX30..LIMD200707-201003

main88650-07150iGSX30..XLS201003

main88650-07160iGSX30..LIMD201003

88899LPARTS, COOLING UNIT

main88899-06100iGSX30200602-200707

88899MPLATE, COVER(FOR AIR FILTER)

main88899-07010iGSX30200501-200707

8712407030CLAMP, HEATER

main87124-07030

8857806060PAKING, COOLER AIR DUCT

main88578-06060

9006908007

main90069-08007

9006908009

main90069-08009

9008017194

main90080-17194

9009900968

main90099-00968

9009904542

main90099-04542

9009914120

main90099-14120

90119A0334

main90119-A0334

9015950267

main90159-50267

90159A0024

main90159-A0024

9048026030

main90480-26030

90480A0004

main90480-A0004

30 parts on this diagram · 1 diagram in section
