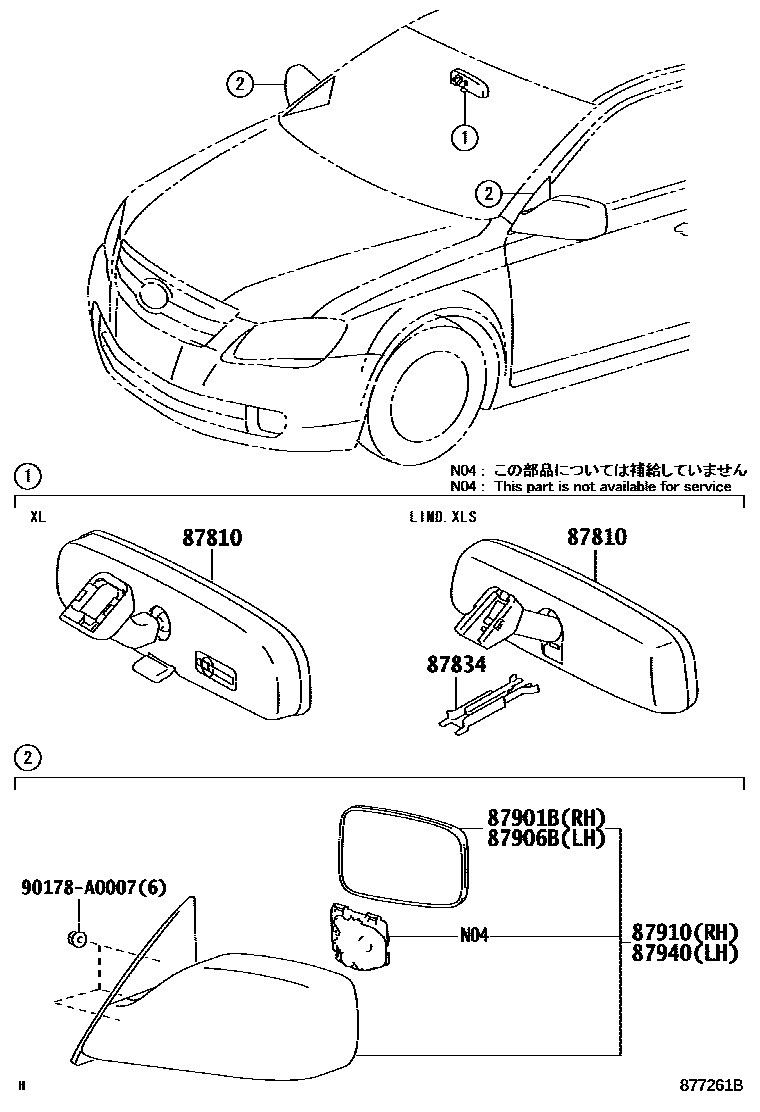

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-AC080i200501-200707

main87810-AD010i200501-200707

main87810-07010supersedes 87810-AD010i200707

OUTSIDE REAR VIEW MIRROR-HEATER + *57&EMV & NAVIGATION SYSTEM-WITH

main87810-07020supersedes 87810-07043i201003-201210

EMV & NAVIGATION SYSTEM-WITH

main87810-07030i201003-201210

BLACK CAR PACKAGE; DECONTENT PACKAGE

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-04010i201003

main87818-AC010i200707-201003

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87902-AC010i200501-200707

main87902-AC020supersedes 87902-AC010i200707-201003

main87902-AC030i200501-200707

main87902-AC031i200707-200906

main87902-AC032i200906-201003

main87903-07020i201003-201108

main87903-07021i201109-201203

main87903-07030i201003-201108

main87903-07031i201206-201210

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87906-07010i201204-201205

main87906-07011i201109-201203

main87907-AC010i200501-200707

main87907-AC020supersedes 87907-AC010i200501-200707

main87907-AC030i200501-200707

main87907-AC031i200707-200906

main87907-AC032i200906-201003

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-07080-A0i201003-201108

WHITE PEARL CS.,070

main87910-07080-B0i201003-201108

SILVER ME.,1F7

main87910-07080-B1i201003-201108

GRAY ME.,1G3

main87910-07080-C0i201003-201108

BLACK,202

main87910-07080-D0i201003-201108

BLACKISH RED MC.,3R0

main87910-07080-E0i201003-201108

BEIGE ME.,4T8

main87910-07080-E1i201003-201108

DK.BROWN ME.,4U5

main87910-07080-G0i201003-201108

OLIVE M.M.,6T7

main87910-07080-J0i201003-201108

BLUE ME.,8N0

main87910-07081-A0i201109-201111

WHITE PEARL CS.,070

main87910-07081-B0i201109-201111

SILVER ME.,1F7

main87910-07081-B1i201109-201111

GRAY ME.,1G3

main87910-07081-C0i201109-201111

BLACK,202

main87910-07081-D0i201109-201111

BLACKISH RED MC.,3R0

main87910-07081-E0i201109-201111

BEIGE ME.,4T8

main87910-07081-E1i201109-201111

DK.BROWN ME.,4U5

main87910-07081-G0i201109-201111

OLIVE M.M.,6T7

main87910-07081-J0i201109-201111

BLUE ME.,8N0

main87910-07083-A0i201111-201203

WHITE PEARL CS.,070

main87910-07083-B0i201111-201203

SILVER ME.,1F7

main87910-07083-B1i201111-201203

GRAY ME.,1G3

main87910-07083-C0i201111-201203

BLACK,202

main87910-07083-D0i201111-201203

BLACKISH RED MC.,3R0

main87910-07083-E0i201111-201203

BEIGE ME.,4T8

main87910-07083-E1i201111-201203

DK.BROWN ME.,4U5

main87910-07083-G0i201111-201203

OLIVE M.M.,6T7

main87910-07083-J0i201111-201203

BLUE ME.,8N0

main87910-07084-A0i201204-201210

WHITE PEARL CS.,070

main87910-07084-B0i201204-201210

SILVER ME.,1F7

main87910-07084-B1i201204-201210

GRAY ME.,1G3

main87910-07084-C0i201204-201210

BLACK,202

main87910-07084-D0i201204-201210

BLACKISH RED MC.,3R0

main87910-07084-E0i201204-201210

BEIGE ME.,4T8

main87910-07084-E1i201204-201210

DK.BROWN ME.,4U5

main87910-07084-G0i201204-201210

OLIVE M.M.,6T7

main87910-07084-J0i201204-201210

BLUE ME.,8N0

main87910-AC040-A0i200501-200707

WHITE PEARL CS.,070

main87910-AC040-B0i200501-200707

SILVER ME.,1D4

main87910-AC040-B1i200501-200707

GRAY M.M.,1E3

main87910-AC040-C0i200501-200707

BLACK,202

main87910-AC040-D0i200501-200707

DK RED MC,3Q7

main87910-AC040-E0i200707-200902

BEIGE M. M.,4Q2

main87910-AC040-E1i200808-201003

DK.BROWN ME.,4U5

main87910-AC040-E2i200902-201003

BEIGE ME.,4T8

main87910-AC040-G0i200707-201003

LT.GREEN ME.,6U0

main87910-AC040-J0i200501-200707

DK.BLUE M.M.,8P4

main87910-AC040-J1i200501-200707

BLUE ME.,8R5

main87910-AC050-A0supersedes 87910-AC040-A0i200501-200707

WHITE PEARL CS.,070

main87910-AC050-B0i200501-200707

SILVER ME.,1D4

main87910-AC050-B1i200501-200707

GRAY M.M.,1E3

main87910-AC050-C0supersedes 87910-AC040-C0i200501-200707

BLACK,202

main87910-AC050-D0supersedes 87910-AC040-D0i200707-200807

DK RED MC,3Q7; EMV & NAVIGATION SYSTEM-WITH,DK RED MC,3Q7

main87910-AC050-E0i200707-200807

BEIGE M. M.,4Q2

main87910-AC050-G0i200707-200807

LT.GREEN ME.,6U0

main87910-AC050-J0i200501-200707

DK.BLUE M.M.,8P4

main87910-AC050-J1supersedes 87910-AC040-J1i200707-200807

BLUE ME.,8R5; EMV & NAVIGATION SYSTEM-WITH,BLUE ME.,8R5

main87910-AC051-A0i200808-201003

EMV & NAVIGATION SYSTEM-WITH,WHITE PEARL CS.,070; WHITE PEARL CS.,070

main87910-AC051-B2i200808-201003

EMV & NAVIGATION SYSTEM-WITH,SILVER ME.,1F7; SILVER ME.,1F7

main87910-AC051-B3i200808-201003

EMV & NAVIGATION SYSTEM-WITH,GRAY ME.,1G3; GRAY ME.,1G3

main87910-AC051-C0i200808-201003

BLACK,202; EMV & NAVIGATION SYSTEM-WITH,BLACK,202

main87910-AC051-D0i200808-201003

DK RED MC,3Q7; EMV & NAVIGATION SYSTEM-WITH,DK RED MC,3Q7

main87910-AC051-E0i200808-200902

BEIGE M. M.,4Q2

main87910-AC051-E1i200808-201003

DK.BROWN ME.,4U5

main87910-AC051-G0i200808-201003

LT.GREEN ME.,6U0

main87910-AC051-J1i200808-201003

BLUE ME.,8R5; EMV & NAVIGATION SYSTEM-WITH,BLUE ME.,8R5

main87910-AC060-A0i200501-200707

WHITE PEARL CS.,070

main87910-AC060-B0i200501-200707

SILVER ME.,1D4

main87910-AC060-B1i200501-200707

GRAY M.M.,1E3

main87910-AC060-C0i200501-200707

BLACK,202

main87910-AC060-D0i200501-200707

DK RED MC,3Q7

main87910-AC060-E0i200501-200707

BEIGE M. M.,4Q2

main87910-AC060-G0i200501-200707

LT.GREEN ME.,6U0

main87910-AC060-J0i200501-200707

DK.BLUE M.M.,8P4

main87910-AC060-J1i200501-200707

BLUE ME.,8R5

main87910-AC061-A0i200707-200906

WHITE PEARL CS.,070

main87910-AC061-B2i200707-200906

SILVER ME.,1F7

main87910-AC061-B3i200707-200906

GRAY ME.,1G3

main87910-AC061-C0i200707-200906

BLACK,202

main87910-AC061-D0i200707-200906

DK RED MC,3Q7

main87910-AC061-E0i200707-200902

BEIGE M. M.,4Q2

main87910-AC061-E1i200808-200906

DK.BROWN ME.,4U5

main87910-AC061-E2i200902-200906

BEIGE ME.,4T8

main87910-AC061-G0i200707-200906

LT.GREEN ME.,6U0

main87910-AC061-J0i200707-200808

DK.BLUE M.M.,8P4

main87910-AC061-J1i200707-200906

BLUE ME.,8R5

main87910-AC062-A0i200906-201003

WHITE PEARL CS.,070

main87910-AC062-B2i200906-201003

SILVER ME.,1F7

main87910-AC062-B3i200906-201003

GRAY ME.,1G3

main87910-AC062-C0i200906-201003

BLACK,202

main87910-AC062-D0i200906-201003

DK RED MC,3Q7

main87910-AC062-E1i200906-201003

DK.BROWN ME.,4U5

main87910-AC062-E2i200906-201003

BEIGE ME.,4T8

main87910-AC062-G0i200906-201003

LT.GREEN ME.,6U0

main87910-AC062-J1i200906-201003

BLUE ME.,8R5

main87910-07070-A0supersedes 87910-AC050-A0i201003-201108

MEMORY PACKAGE,WHITE PEARL CS.,070

main87910-07070-B0supersedes 87910-AC050-B2i201003-201108

MEMORY PACKAGE,SILVER ME.,1F7

main87910-07070-B1supersedes 87910-AC050-B3i201003-201108

MEMORY PACKAGE,GRAY ME.,1G3

main87910-07070-C0supersedes 87910-AC050-C0i201003-201108

MEMORY PACKAGE,BLACK,202

main87910-07070-D0supersedes 87910-07064-D0i201003-201108

MEMORY PACKAGE,BLACKISH RED MC.,3R0

main87910-07070-E0supersedes 87910-AC051-E2i201003-201108

MEMORY PACKAGE,BEIGE ME.,4T8

main87910-07070-E1supersedes 87910-07064-E1i201003-201108

MEMORY PACKAGE,DK.BROWN ME.,4U5

main87910-07070-G0supersedes 87910-07064-G0i201003-201108

MEMORY PACKAGE,OLIVE M.M.,6T7

main87910-07070-J0supersedes 87910-07064-J0i201003-201108

MEMORY PACKAGE,BLUE ME.,8N0

main87910-07071-A0supersedes 87910-AC050-A0i201109-201111

MEMORY PACKAGE,WHITE PEARL CS.,070

main87910-07071-B0supersedes 87910-AC050-B2i201109-201111

MEMORY PACKAGE,SILVER ME.,1F7

main87910-07071-B1supersedes 87910-AC050-B3i201109-201111

MEMORY PACKAGE,GRAY ME.,1G3

main87910-07071-C0supersedes 87910-AC050-C0i201109-201111

MEMORY PACKAGE,BLACK,202

main87910-07071-D0supersedes 87910-07064-D0i201109-201111

MEMORY PACKAGE,BLACKISH RED MC.,3R0

main87910-07071-E0supersedes 87910-AC051-E2i201109-201111

MEMORY PACKAGE,BEIGE ME.,4T8

main87910-07071-E1supersedes 87910-07064-E1i201109-201111

MEMORY PACKAGE,DK.BROWN ME.,4U5

main87910-07071-G0supersedes 87910-07064-G0i201109-201111

MEMORY PACKAGE,OLIVE M.M.,6T7

main87910-07071-J0supersedes 87910-07064-J0i201109-201111

MEMORY PACKAGE,BLUE ME.,8N0

main87910-07073-A0supersedes 87910-AC050-A0i201111-201203

MEMORY PACKAGE,WHITE PEARL CS.,070

main87910-07073-B0supersedes 87910-AC050-B2i201111-201203

MEMORY PACKAGE,SILVER ME.,1F7

main87910-07073-B1supersedes 87910-AC050-B3i201111-201203

MEMORY PACKAGE,GRAY ME.,1G3

main87910-07073-C0supersedes 87910-AC050-C0i201111-201203

MEMORY PACKAGE,BLACK,202

main87910-07073-D0supersedes 87910-07064-D0i201111-201203

MEMORY PACKAGE,BLACKISH RED MC.,3R0

main87910-07073-E0supersedes 87910-AC051-E2i201111-201203

MEMORY PACKAGE,BEIGE ME.,4T8

main87910-07073-E1supersedes 87910-07064-E1i201111-201203

MEMORY PACKAGE,DK.BROWN ME.,4U5

main87910-07073-G0supersedes 87910-07064-G0i201111-201203

MEMORY PACKAGE,OLIVE M.M.,6T7

main87910-07073-J0supersedes 87910-07064-J0i201111-201203

MEMORY PACKAGE,BLUE ME.,8N0

main87910-07074-A0supersedes 87910-AC050-A0i201204-201210

MEMORY PACKAGE,WHITE PEARL CS.,070

main87910-07074-B0supersedes 87910-AC050-B2i201204-201210

MEMORY PACKAGE,SILVER ME.,1F7

main87910-07074-B1supersedes 87910-AC050-B3i201204-201210

MEMORY PACKAGE,GRAY ME.,1G3

main87910-07074-C0supersedes 87910-AC050-C0i201204-201210

MEMORY PACKAGE,BLACK,202

main87910-07074-D0supersedes 87910-07064-D0i201204-201210

MEMORY PACKAGE,BLACKISH RED MC.,3R0

main87910-07074-E0supersedes 87910-AC051-E2i201204-201210

MEMORY PACKAGE,BEIGE ME.,4T8

main87910-07074-E1supersedes 87910-07064-E1i201204-201210

MEMORY PACKAGE,DK.BROWN ME.,4U5

main87910-07074-G0supersedes 87910-07064-G0i201204-201210

MEMORY PACKAGE,OLIVE M.M.,6T7

main87910-07074-J0supersedes 87910-07064-J0i201204-201210

MEMORY PACKAGE,BLUE ME.,8N0

main87910-AC050-B2supersedes 87910-AC040-B2i200707-200807

EMV & NAVIGATION SYSTEM-WITH,SILVER ME.,1F7; SILVER ME.,1F7

main87910-AC050-B3supersedes 87910-AC040-B3i200707-200807

EMV & NAVIGATION SYSTEM-WITH,GRAY ME.,1G3; GRAY ME.,1G3

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-07070-A0i201003-201108

WHITE PEARL CS.,070

main87940-07070-B0i201003-201108

SILVER ME.,1F7

main87940-07070-B1i201003-201108

GRAY ME.,1G3

main87940-07070-C0i201003-201108

BLACK,202

main87940-07070-D0i201003-201108

BLACKISH RED MC.,3R0

main87940-07070-E0i201003-201108

BEIGE ME.,4T8

main87940-07070-E1i201003-201108

DK.BROWN ME.,4U5

main87940-07070-G0i201003-201108

OLIVE M.M.,6T7

main87940-07070-J0i201003-201108

BLUE ME.,8N0

main87940-07071-A0i201109-201111

WHITE PEARL CS.,070

main87940-07071-B0i201109-201111

SILVER ME.,1F7

main87940-07071-B1i201109-201111

GRAY ME.,1G3

main87940-07071-C0i201109-201111

BLACK,202

main87940-07071-D0i201109-201111

BLACKISH RED MC.,3R0

main87940-07071-E0i201109-201111

BEIGE ME.,4T8

main87940-07071-E1i201109-201111

DK.BROWN ME.,4U5

main87940-07071-G0i201109-201111

OLIVE M.M.,6T7

main87940-07071-J0i201109-201111

BLUE ME.,8N0

main87940-07073-A0i201111-201203

WHITE PEARL CS.,070

main87940-07073-B0i201111-201203

SILVER ME.,1F7

main87940-07073-B1i201111-201203

GRAY ME.,1G3

main87940-07073-C0i201111-201203

BLACK,202

main87940-07073-D0i201111-201203

BLACKISH RED MC.,3R0

main87940-07073-E0i201111-201203

BEIGE ME.,4T8

main87940-07073-E1i201111-201203

DK.BROWN ME.,4U5

main87940-07073-G0i201111-201203

OLIVE M.M.,6T7

main87940-07073-J0i201111-201203

BLUE ME.,8N0

main87940-07074-A0i201204-201210

WHITE PEARL CS.,070

main87940-07074-B0i201204-201210

SILVER ME.,1F7

main87940-07074-B1i201204-201210

GRAY ME.,1G3

main87940-07074-C0i201204-201210

BLACK,202

main87940-07074-D0i201204-201210

BLACKISH RED MC.,3R0

main87940-07074-E0i201204-201210

BEIGE ME.,4T8

main87940-07074-E1i201204-201210

DK.BROWN ME.,4U5

main87940-07074-G0i201204-201210

OLIVE M.M.,6T7

main87940-07074-J0i201204-201210

BLUE ME.,8N0

main87940-AC060-A0i200501-200707

WHITE PEARL CS.,070

main87940-AC060-B0i200501-200707

SILVER ME.,1D4

main87940-AC060-B1i200501-200707

GRAY M.M.,1E3

main87940-AC060-C0i200501-200707

BLACK,202

main87940-AC060-D0i200501-200707

DK RED MC,3Q7

main87940-AC060-E0i200501-200707

BEIGE M. M.,4Q2

main87940-AC060-E1i200808-201003

DK.BROWN ME.,4U5

main87940-AC060-E2i200902-201003

BEIGE ME.,4T8

main87940-AC060-G0i200707-201003

LT.GREEN ME.,6U0

main87940-AC060-J0i200707-200808

DK.BLUE M.M.,8P4

main87940-AC060-J1i200501-200707

BLUE ME.,8R5

main87940-AC070-A0supersedes 87940-AC060-A0i200501-200707

WHITE PEARL CS.,070

main87940-AC070-B0i200501-200707

SILVER ME.,1D4

main87940-AC070-B1i200501-200707

GRAY M.M.,1E3

main87940-AC070-C0supersedes 87940-AC060-C0i200501-200707

BLACK,202

main87940-AC070-D0supersedes 87940-AC060-D0i200707-200807

DK RED MC,3Q7; EMV & NAVIGATION SYSTEM-WITH,DK RED MC,3Q7

main87940-AC070-E0i200501-200707

BEIGE M. M.,4Q2

main87940-AC070-G0i200501-200707

LT.GREEN ME.,6U0

main87940-AC070-J0i200707-200807

DK.BLUE M.M.,8P4

main87940-AC070-J1supersedes 87940-AC060-J1i200707-200807

BLUE ME.,8R5; EMV & NAVIGATION SYSTEM-WITH,BLUE ME.,8R5

main87940-AC071-A0i200808-201003

EMV & NAVIGATION SYSTEM-WITH,WHITE PEARL CS.,070; WHITE PEARL CS.,070

main87940-AC071-B2i200808-201003

EMV & NAVIGATION SYSTEM-WITH,SILVER ME.,1F7; SILVER ME.,1F7

main87940-AC071-B3i200808-201003

EMV & NAVIGATION SYSTEM-WITH,GRAY ME.,1G3; GRAY ME.,1G3

main87940-AC071-C0i200808-201003

BLACK,202; EMV & NAVIGATION SYSTEM-WITH,BLACK,202

main87940-AC071-D0i200808-201003

DK RED MC,3Q7; EMV & NAVIGATION SYSTEM-WITH,DK RED MC,3Q7

main87940-AC071-E0i200808-200902

BEIGE M. M.,4Q2

main87940-AC071-E1i200808-201003

DK.BROWN ME.,4U5

main87940-AC071-G0i200808-201003

LT.GREEN ME.,6U0

main87940-AC071-J1i200808-201003

BLUE ME.,8R5; EMV & NAVIGATION SYSTEM-WITH,BLUE ME.,8R5

main87940-AC080-A0i200501-200707

WHITE PEARL CS.,070

main87940-AC080-B0i200501-200707

SILVER ME.,1D4

main87940-AC080-B1i200501-200707

GRAY M.M.,1E3

main87940-AC080-C0i200501-200707

BLACK,202

main87940-AC080-D0i200501-200707

DK RED MC,3Q7

main87940-AC080-E0i200501-200707

BEIGE M. M.,4Q2

main87940-AC080-G0i200501-200707

LT.GREEN ME.,6U0

main87940-AC080-J0i200501-200707

DK.BLUE M.M.,8P4

main87940-AC080-J1i200501-200707

BLUE ME.,8R5

main87940-AC081-A0i200707-200906

WHITE PEARL CS.,070

main87940-AC081-B2i200707-200906

SILVER ME.,1F7

main87940-AC081-B3i200707-200906

GRAY ME.,1G3

main87940-AC081-C0i200707-200906

BLACK,202

main87940-AC081-D0i200707-200906

DK RED MC,3Q7

main87940-AC081-E0i200707-200902

BEIGE M. M.,4Q2

main87940-AC081-E1i200808-200906

DK.BROWN ME.,4U5

main87940-AC081-E2i200902-200906

BEIGE ME.,4T8

main87940-AC081-G0i200707-200906

LT.GREEN ME.,6U0

main87940-AC081-J0i200707-200808

DK.BLUE M.M.,8P4

main87940-AC081-J1i200707-200906

BLUE ME.,8R5

main87940-AC082-A0i200906-201003

WHITE PEARL CS.,070

main87940-AC082-B2i200906-201003

SILVER ME.,1F7

main87940-AC082-B3i200906-201003

GRAY ME.,1G3

main87940-AC082-C0i200906-201003

BLACK,202

main87940-AC082-D0i200906-201003

DK RED MC,3Q7

main87940-AC082-E1i200906-201003

DK.BROWN ME.,4U5

main87940-AC082-E2i200906-201003

BEIGE ME.,4T8

main87940-AC082-G0i200906-201003

LT.GREEN ME.,6U0

main87940-AC082-J1i200906-201003

BLUE ME.,8R5

main87940-07060-A0supersedes 87940-AC070-A0i201003-201108

MEMORY PACKAGE,WHITE PEARL CS.,070

main87940-07060-B0supersedes 87940-AC070-B2i201003-201108

MEMORY PACKAGE,SILVER ME.,1F7

main87940-07060-B1supersedes 87940-AC070-B3i201003-201108

MEMORY PACKAGE,GRAY ME.,1G3

main87940-07060-C0supersedes 87940-AC070-C0i201003-201108

MEMORY PACKAGE,BLACK,202

main87940-07060-D0supersedes 87940-07054-D0i201003-201108

MEMORY PACKAGE,BLACKISH RED MC.,3R0

main87940-07060-E0supersedes 87940-AC071-E2i201003-201108

MEMORY PACKAGE,BEIGE ME.,4T8

main87940-07060-E1supersedes 87940-07054-E1i201003-201108

MEMORY PACKAGE,DK.BROWN ME.,4U5

main87940-07060-G0supersedes 87940-07054-G0i201003-201108

MEMORY PACKAGE,OLIVE M.M.,6T7

main87940-07060-J0supersedes 87940-07054-J0i201003-201108

MEMORY PACKAGE,BLUE ME.,8N0

main87940-07061-A0supersedes 87940-AC070-A0i201109-201111

MEMORY PACKAGE,WHITE PEARL CS.,070

main87940-07061-B0supersedes 87940-AC070-B2i201109-201111

MEMORY PACKAGE,SILVER ME.,1F7

main87940-07061-B1supersedes 87940-AC070-B3i201109-201111

MEMORY PACKAGE,GRAY ME.,1G3

main87940-07061-C0supersedes 87940-AC070-C0i201109-201111

MEMORY PACKAGE,BLACK,202

main87940-07061-D0supersedes 87940-07054-D0i201109-201111

MEMORY PACKAGE,BLACKISH RED MC.,3R0

main87940-07061-E0supersedes 87940-AC071-E2i201109-201111

MEMORY PACKAGE,BEIGE ME.,4T8

main87940-07061-E1supersedes 87940-07054-E1i201109-201111

MEMORY PACKAGE,DK.BROWN ME.,4U5

main87940-07061-G0supersedes 87940-07054-G0i201109-201111

MEMORY PACKAGE,OLIVE M.M.,6T7

main87940-07061-J0supersedes 87940-07054-J0i201109-201111

MEMORY PACKAGE,BLUE ME.,8N0

main87940-07063-A0supersedes 87940-AC070-A0i201111-201203

MEMORY PACKAGE,WHITE PEARL CS.,070

main87940-07063-B0supersedes 87940-AC070-B2i201111-201203

MEMORY PACKAGE,SILVER ME.,1F7

main87940-07063-B1supersedes 87940-AC070-B3i201111-201203

MEMORY PACKAGE,GRAY ME.,1G3

main87940-07063-C0supersedes 87940-AC070-C0i201111-201203

MEMORY PACKAGE,BLACK,202

main87940-07063-D0supersedes 87940-07054-D0i201111-201203

MEMORY PACKAGE,BLACKISH RED MC.,3R0

main87940-07063-E0supersedes 87940-AC071-E2i201111-201203

MEMORY PACKAGE,BEIGE ME.,4T8

main87940-07063-E1supersedes 87940-07054-E1i201111-201203

MEMORY PACKAGE,DK.BROWN ME.,4U5

main87940-07063-G0supersedes 87940-07054-G0i201111-201203

MEMORY PACKAGE,OLIVE M.M.,6T7

main87940-07063-J0supersedes 87940-07054-J0i201111-201203

MEMORY PACKAGE,BLUE ME.,8N0

main87940-07064-A0supersedes 87940-AC070-A0i201204-201210

MEMORY PACKAGE,WHITE PEARL CS.,070

main87940-07064-B0supersedes 87940-AC070-B2i201204-201210

MEMORY PACKAGE,SILVER ME.,1F7

main87940-07064-B1supersedes 87940-AC070-B3i201204-201210

MEMORY PACKAGE,GRAY ME.,1G3

main87940-07064-C0supersedes 87940-AC070-C0i201204-201210

MEMORY PACKAGE,BLACK,202

main87940-07064-D0supersedes 87940-07054-D0i201204-201210

MEMORY PACKAGE,BLACKISH RED MC.,3R0

main87940-07064-E0supersedes 87940-AC071-E2i201204-201210

MEMORY PACKAGE,BEIGE ME.,4T8

main87940-07064-E1supersedes 87940-07054-E1i201204-201210

MEMORY PACKAGE,DK.BROWN ME.,4U5

main87940-07064-G0supersedes 87940-07054-G0i201204-201210

MEMORY PACKAGE,OLIVE M.M.,6T7

main87940-07064-J0supersedes 87940-07054-J0i201204-201210

MEMORY PACKAGE,BLUE ME.,8N0

main87940-AC070-B2supersedes 87940-AC060-B2i200707-200807

EMV & NAVIGATION SYSTEM-WITH,SILVER ME.,1F7; SILVER ME.,1F7

main87940-AC070-B3supersedes 87940-AC060-B3i200707-200807

EMV & NAVIGATION SYSTEM-WITH,GRAY ME.,1G3; GRAY ME.,1G3

90178A0007

main90178-A0007

7 parts on this diagram · 2 diagrams in section
