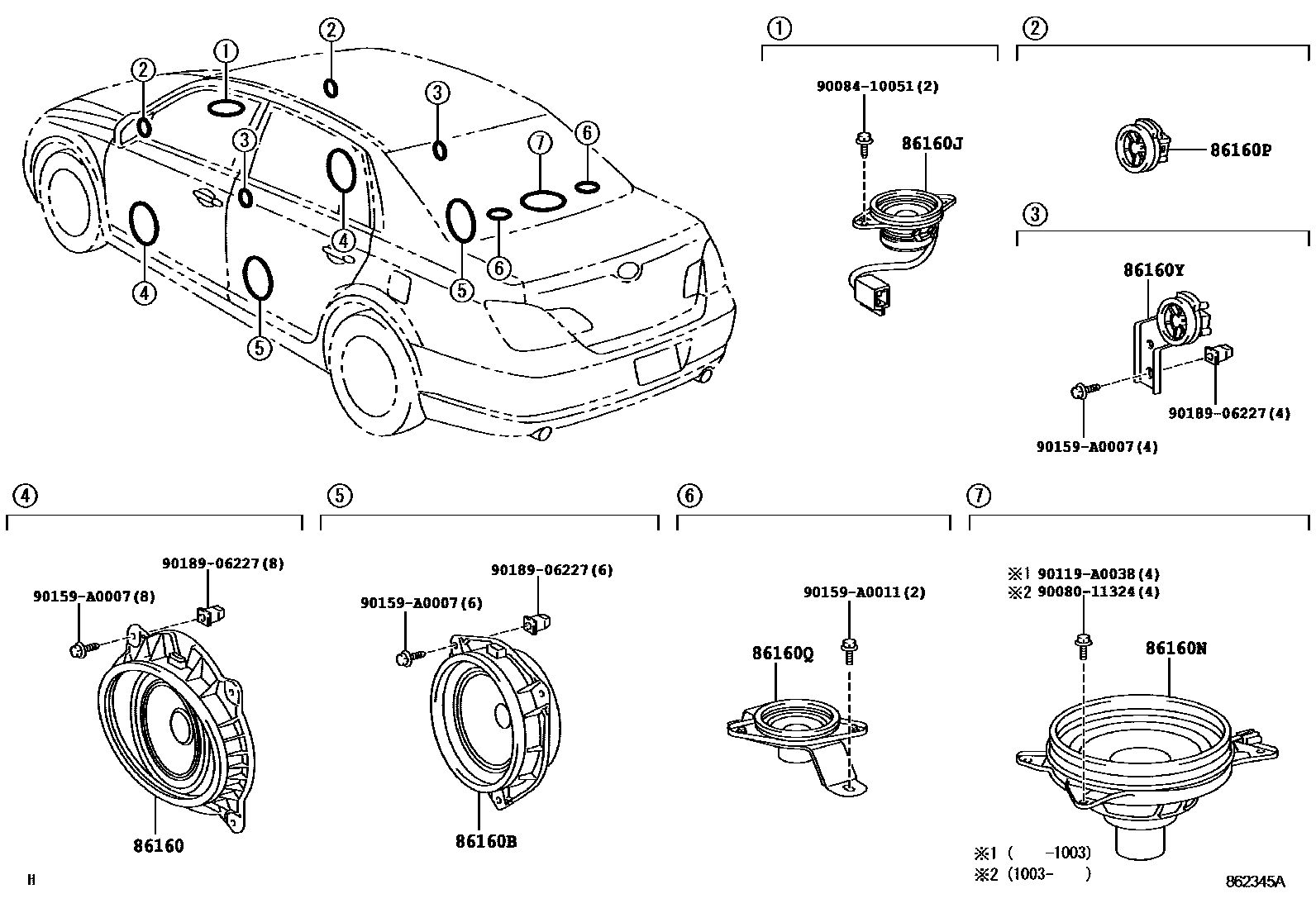

SPEAKER
86160SPEAKER ASSY, FRONT NO.1
AUDIO-JBL AM/FM/CD-CH 12SP; AUDIO-JBL AM/FM/CD-CH 12SP & CASSETTE
86160BSPEAKER ASSY, REAR
AUDIO-JBL AM/FM/CD-CH 12SP; AUDIO-JBL AM/FM/CD-CH 12SP & CASSETTE
86160JSPEAKER ASSY, FRONT NO.3
AUDIO-JBL AM/FM/CD-CH 12SP; AUDIO-JBL AM/FM/CD-CH 12SP & CASSETTE
86160NSPEAKER ASSY, STEREO COMPONENT, REAR
AUDIO-JBL CD-CH 12SP
AUDIO-JBL AM/FM/CD-CH 12SP
86160PSPEAKER ASSY, FRONT NO.2
AUDIO-JBL CD-CH 12SP
86160QSPEAKER ASSY, ROOF
AUDIO-JBL AM/FM/CD-CH 12SP; AUDIO-JBL AM/FM/CD-CH 12SP & CASSETTE
AUDIO-JBL CD-CH 12SP
86160YSPEAKER ASSY, REAR NO.2
AUDIO-JBL AM/FM/CD-CH 12SP,RH; RH
AUDIO-JBL AM/FM/CD-CH 12SP & CASSETTE,LH; AUDIO-JBL AM/FM/CD-CH 12SP,LH; LH
9008011324
main90080-11324
9008410051
main90084-10051
90119A0038
main90119-A0038
90159A0007
main90159-A0007
90159A0011
main90159-A0011
9018906227
main90189-06227
13 parts on this diagram · 1 diagram in section
