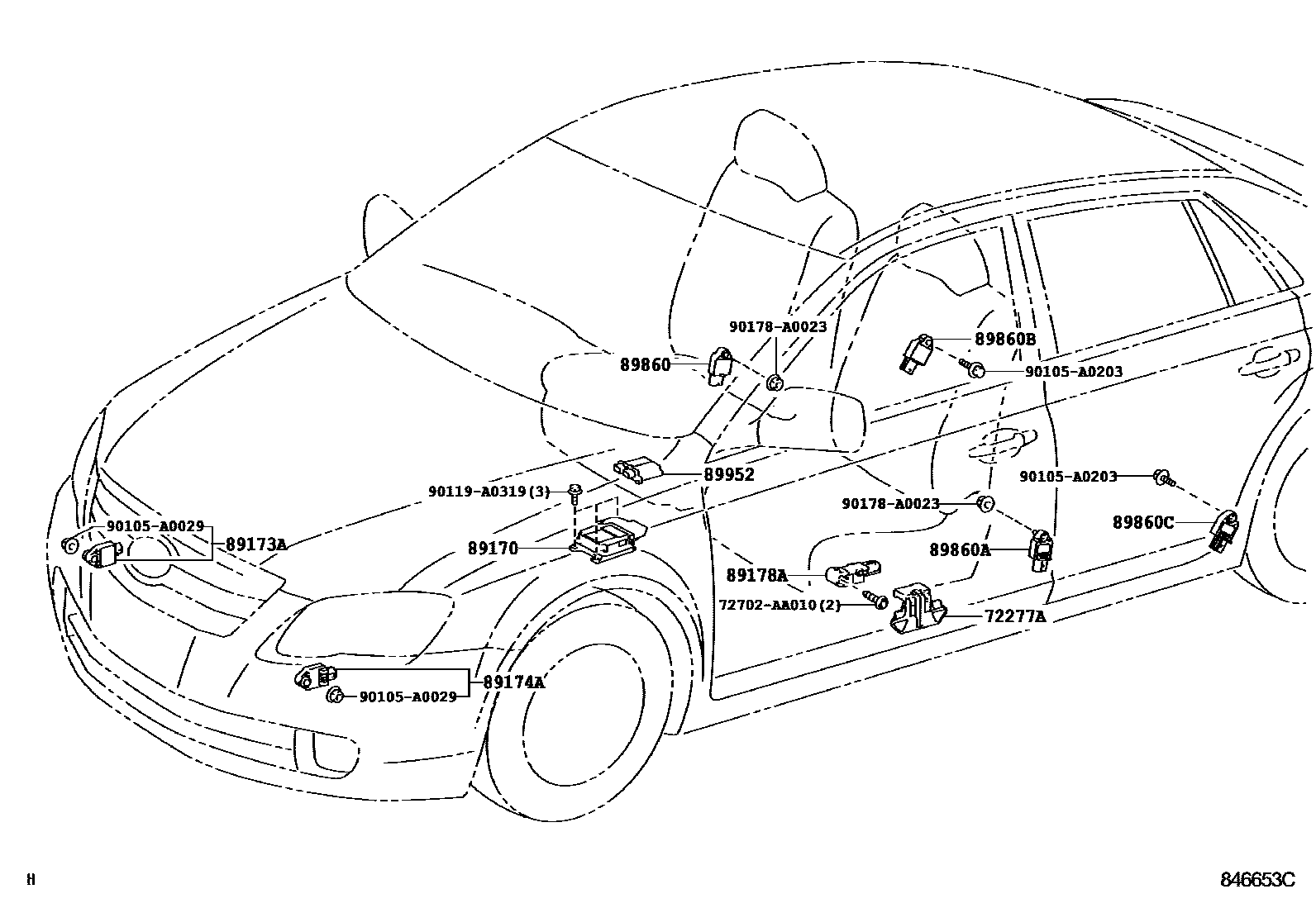

AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-06020iGSX30200602-201210

main72277-33021iGSX30200501-200601

89170SENSOR ASSY, AIRBAG

main89170-07220iGSX30200501-200605

main89170-07221iGSX30200605-201003

main89170-07230iGSX30201003-201012

main89170-07240iGSX30201012-201207

main89170-07280iGSX30201207

89173ASENSOR, AIRBAG, FRONT RH

main89173-09390iGSX30200501-201207

main89173-09A30iGSX30201207

89174ASENSOR, AIRBAG, FRONT LH

main89173-09390iGSX30200501-201207

main89173-09A30iGSX30201207

89178ASENSOR, SEAT POSITION AIRBAG

main89178-06040iGSX30200501-201210

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-02030iGSX30200501-201207

main89831-07060iGSX30201207

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-02030iGSX30200501-201207

main89831-07060iGSX30201207

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-04030iGSX30201207

main89831-07010iGSX30..LIMD,XLS200501-201207

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-04030iGSX30201207

main89831-07010iGSX30..LIMD,XLS200501-201207

89952COMPUTER, OCCUPANT DETECTION

main89952-35011iGSX30200501-201210

72702AA010BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-AA010

90105A0029

main90105-A0029

90105A0203

main90105-A0203

90119A0319

main90119-A0319

90178A0023

main90178-A0023

15 parts on this diagram · 1 diagram in section
