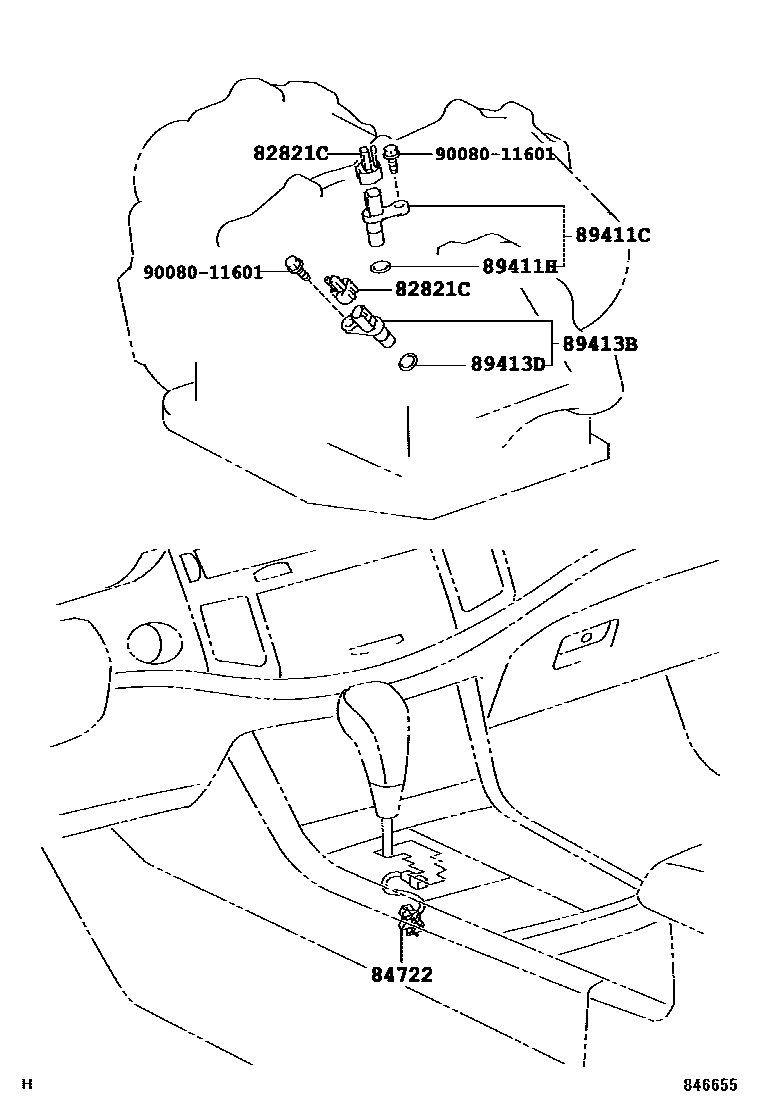

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

82821CCOVER, CONNECTOR

main82821-20210iGSX30200501-200707

84722SWITCH, TRANSMISSION CONTROL

main84722-20240iGSX30..XLS201003-201210

main84722-41060iGSX30..LIMD200707-201003

89411CSENSOR, SPEED

main89413-08010iGSX30200501-200707

89411HRING, O

main90301-11008iGSX30200501-200707

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-08020iGSX30200501-200707

main89413-08030iGSX30201001-201003

(L)

main89413-0T010iGSX30200806-200912

(L)

main89413-33030iGSX30200806-201003

(J)

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iGSX30200501-200707

9008011601

main90080-11601

7 parts on this diagram · 2 diagrams in section
