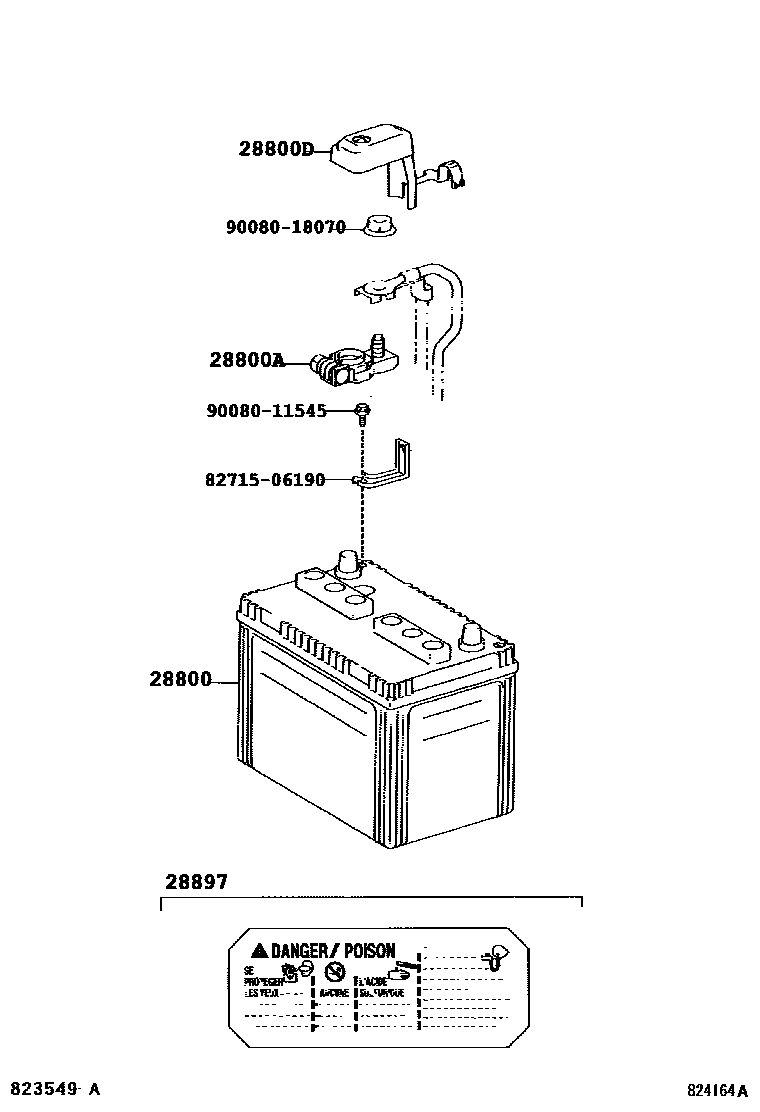

BATTERY & BATTERY CABLE

28800BATTERY

main28800-03044i2GRFE..GSX30200501-200707

80D26L,JOHNSON

main28800-07010i2GRFE..GSX30200501-200707

80D26L,DELPHI

main28800-AA041i2GRFE..GSX30200501-200707

80D26L,EXIDE

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2GRFE..GSX30200501-200707

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-06040i2GRFE..GSX30200501-200707

28897PLATE, BATTERY CAUTION

main28897-AA010i2GRFE..GSX30..XL,XLS200501-200604

CANADA SPEC

8271506190BRACKET,WIRING HARNESS CLAMP

main82715-06190

9008011545

main90080-11545

9008018070

main90080-18070

7 parts on this diagram · 1 diagram in section
