SEAT BELT & CHILD RESTRAINT SEAT

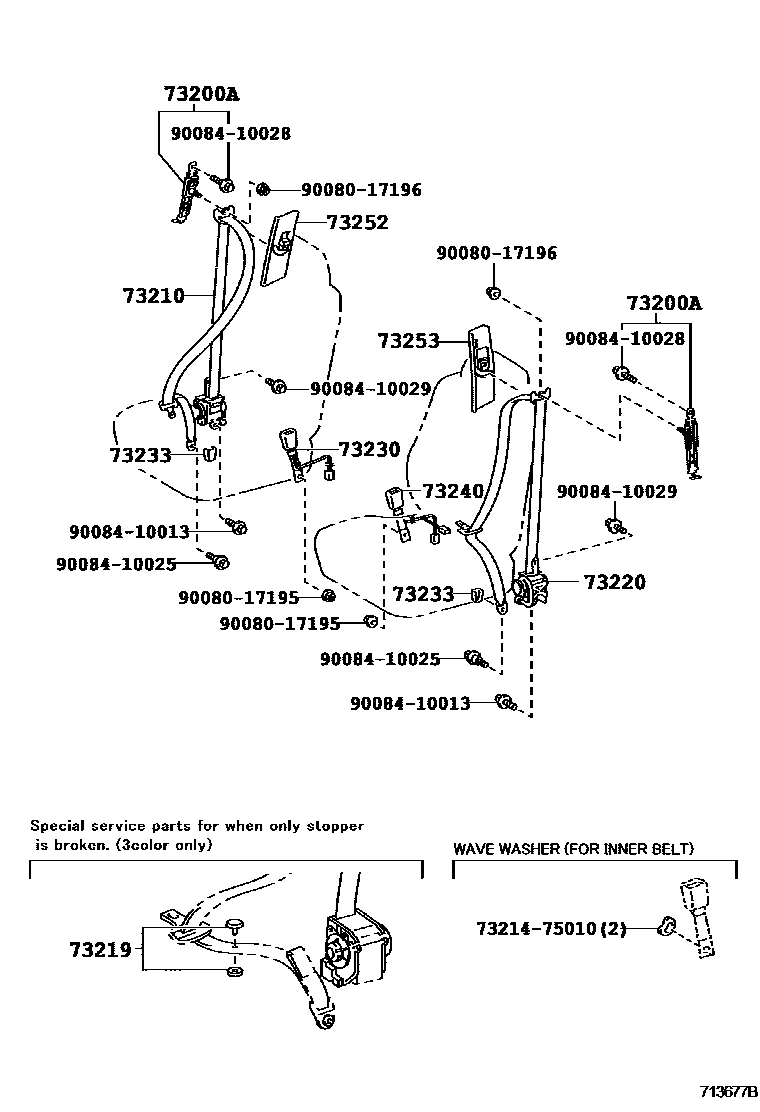

Parts diagram
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-AC010×2i200501-200707
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-AC050-A0i200501-200604
IVORY,TRIM0#
main73210-AC050-B0i200501-200604
LT. GRAY,TRIM16
main73210-AC050-B2i200501-200604
GRAY,TRIM17
main73210-AC051-A0i200605-200707
IVORY,TRIM0#
main73210-AC051-B0i200707-200807
GRAY,TRIM1#; GRAY,TRIM16
main73210-AC051-B2i200605-200707
GRAY,TRIM17
main73210-AC051-B4i200707-200807
DK. GRAY,TRIM18; SEAT COVER MATERIAL-LEATHER,DK. GRAY,TRIM18
main73210-AC052-A0i200808-201003
IVORY,TRIM0#
main73210-AC052-B0i200808-201003
GRAY,TRIM1#; GRAY,TRIM16
main73210-AC052-B2i200808-201003
GRAY,TRIM17
main73210-AC052-B4i200808-201003
DK. GRAY,TRIM18; SEAT COVER MATERIAL-LEATHER,DK. GRAY,TRIM18
main73210-AC053-A0i201003-201112
IVORY,TRIM0#
main73210-AC053-B2i201003-201112
GRAY,TRIM1#
main73210-AC053-C1i201003-201112
BLACK,TRIM2#
main73210-AC054-A0i201112-201210
IVORY,TRIM0#
main73210-AC054-B2i201112-201210
GRAY,TRIM1#
main73210-AC054-C1i201112-201210
BLACK,TRIM2#
main73210-AC050-B4i200501-200604
SPORTS PACKAGE,DK.GRAY,TRIM18
73219STOPPER, TONGUE PLATE
main73219-02010i201005
BLACK
main73219-02020i201005
GRAY
main73219-02030i200707-201003
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-AC030-A0i200501-200604
IVORY,TRIM0#
main73220-AC030-B0i200501-200604
LT. GRAY,TRIM16
main73220-AC030-B2i200501-200604
GRAY,TRIM17
main73220-AC031-A0i200707-200807
IVORY,TRIM0#
main73220-AC031-B0i200707-200807
GRAY,TRIM1#; GRAY,TRIM16
main73220-AC031-B2i200707-200807
GRAY,TRIM17
main73220-AC031-B4i200707-200807
DK. GRAY,TRIM18; SEAT COVER MATERIAL-LEATHER,DK. GRAY,TRIM18
main73220-AC032-A0i200808-201003
IVORY,TRIM0#
main73220-AC032-B0i200808-201003
GRAY,TRIM1#; GRAY,TRIM16
main73220-AC032-B2i200808-201003
GRAY,TRIM17
main73220-AC032-B4i200808-201003
DK. GRAY,TRIM18; SEAT COVER MATERIAL-LEATHER,DK. GRAY,TRIM18
main73220-AC033-A0i201003-201112
IVORY,TRIM0#
main73220-AC033-B2i201003-201112
GRAY,TRIM1#
main73220-AC033-C1i201003-201112
BLACK,TRIM2#
main73220-AC034-A0i201112-201210
IVORY,TRIM0#
main73220-AC034-B2i201112-201210
GRAY,TRIM1#
main73220-AC034-C1i201112-201210
BLACK,TRIM2#
main73220-AC030-B4i200501-200604
SPORTS PACKAGE,DK.DRAY,TRIM18
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-07020-A0supersedes 73230-AC090-A0i201003-201112
IVORY,TRIM0#; MEMORY PACKAGE&OUTSIDE REAR VIEW MIRROR-HEATER + *57 + MEMORY&SEAT LUMBAR SUPPORT-W(DRIVER & PASSENGER SIDE),IVORY,TRIM0#
main73230-07020-B0supersedes 73230-AC090-B0i201003-201112
LT.GRAY,TRIM1#; MEMORY PACKAGE&OUTSIDE REAR VIEW MIRROR-HEATER + *57 + MEMORY&SEAT LUMBAR SUPPORT-W(DRIVER & PASSENGER SIDE),LT.GRAY,TRIM1#
main73230-07020-C0i201003-201112
BLACK,TRIM2#; MEMORY PACKAGE&OUTSIDE REAR VIEW MIRROR-HEATER + *57 + MEMORY&SEAT LUMBAR SUPPORT-W(DRIVER & PASSENGER SIDE),BLACK,TRIM2#
main73230-07021-A0supersedes 73230-AC091-A0i201112-201210
IVORY,TRIM0#; MEMORY PACKAGE&OUTSIDE REAR VIEW MIRROR-HEATER + *57 + MEMORY&SEAT LUMBAR SUPPORT-W(DRIVER & PASSENGER SIDE),IVORY,TRIM0#
main73230-07021-B0supersedes 73230-AC091-B0i201112-201210
LT.GRAY,TRIM1#; MEMORY PACKAGE&OUTSIDE REAR VIEW MIRROR-HEATER + *57 + MEMORY&SEAT LUMBAR SUPPORT-W(DRIVER & PASSENGER SIDE),LT.GRAY,TRIM1#
main73230-07021-C0supersedes 73230-AC091-C0i201112-201210
BLACK,TRIM2#; MEMORY PACKAGE&OUTSIDE REAR VIEW MIRROR-HEATER + *57 + MEMORY&SEAT LUMBAR SUPPORT-W(DRIVER & PASSENGER SIDE),BLACK,TRIM2#
main73230-AC080-B1i200707-201003
GRAY,TRIM1#
main73230-AC090-A0supersedes 73230-AC080-A0i200501-200707
IVORY,TRIM0#
main73230-AC090-B0i200501-200707
LT.GRAY,TRIM17
main73230-AC090-B1supersedes 73230-AC080-B1i200501-200707
GRAY,TRIM16
main73230-AC090-B2i200707-201003
DK.GRAY,TRIM18; SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM18
main73230-07020-B1supersedes 73230-AC090-B1i200707-201003
SEAT LUMBAR SUPPORT-W(DRIVER & PASSENGER SIDE),GRAY,TRIM16
main73230-07020-B2i200808-201003
SEAT LUMBAR SUPPORT-W(DRIVER & PASSENGER SIDE),DK.GRAY,TRIM18
73233COVER, LAP BELT OUTER ANCHOR
main73233-33010-A1×2i200501-200707
IVORY,TRIM0#
main73233-33010-B8×2i200707-201003
DK.GRAY,TRIM18; SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM18
main73233-33010-C0×2i201003-201210
BLACK,TRIM2#
main73233-33010-P0×2i200707-201003
LT.GRAY,TRIM17
main73233-33010-P4×2i200707-201003
GRAY,TRIM1#; GRAY,TRIM16
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-AC060-A0i200707-201003
IVORY,TRIM0#
main73240-AC060-B0i201003-201112
LT.GRAY,TRIM1#
main73240-AC060-B1i200707-201003
GRAY,TRIM1#; GRAY,TRIM16
main73240-AC060-B2i200707-201003
DK.GRAY,TRIM18; SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM18
main73240-AC060-C0i201003-201112
BLACK,TRIM2#
main73240-AC061-A0i201112-201210
IVORY,TRIM0#
main73240-AC061-B0i201112-201210
LT.GRAY,TRIM1#
main73240-AC061-C0i201112-201210
BLACK,TRIM2#
73252COVER, SHOULDER BELT ANCHOR ADJUST, RH
main73252-AC020-A0i200501-200707
IVORY,TRIM0#
main73252-AC020-B0i200501-200707
LT.GRAY,TRIM16,17
main73252-AC020-B2i200707-201003
GRAY,TRIM18
73253COVER, SHOULDER BELT ANCHOR ADJUST, LH
main73253-AC020-A0i201003-201210
IVORY,TRIM0#
main73253-AC020-B0i200707-201003
LT.GRAY,TRIM16; LT.GRAY,TRIM16,17
main73253-AC020-B2i200707-201003
GRAY,TRIM18
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9008017195
main90080-17195
9008017196
main90080-17196
9008410013
main90084-10013
9008410025
main90084-10025
9008410028
main90084-10028
9008410029
main90084-10029

16 parts on this diagram · 3 diagrams in section
