REAR SEAT & SEAT TRACK

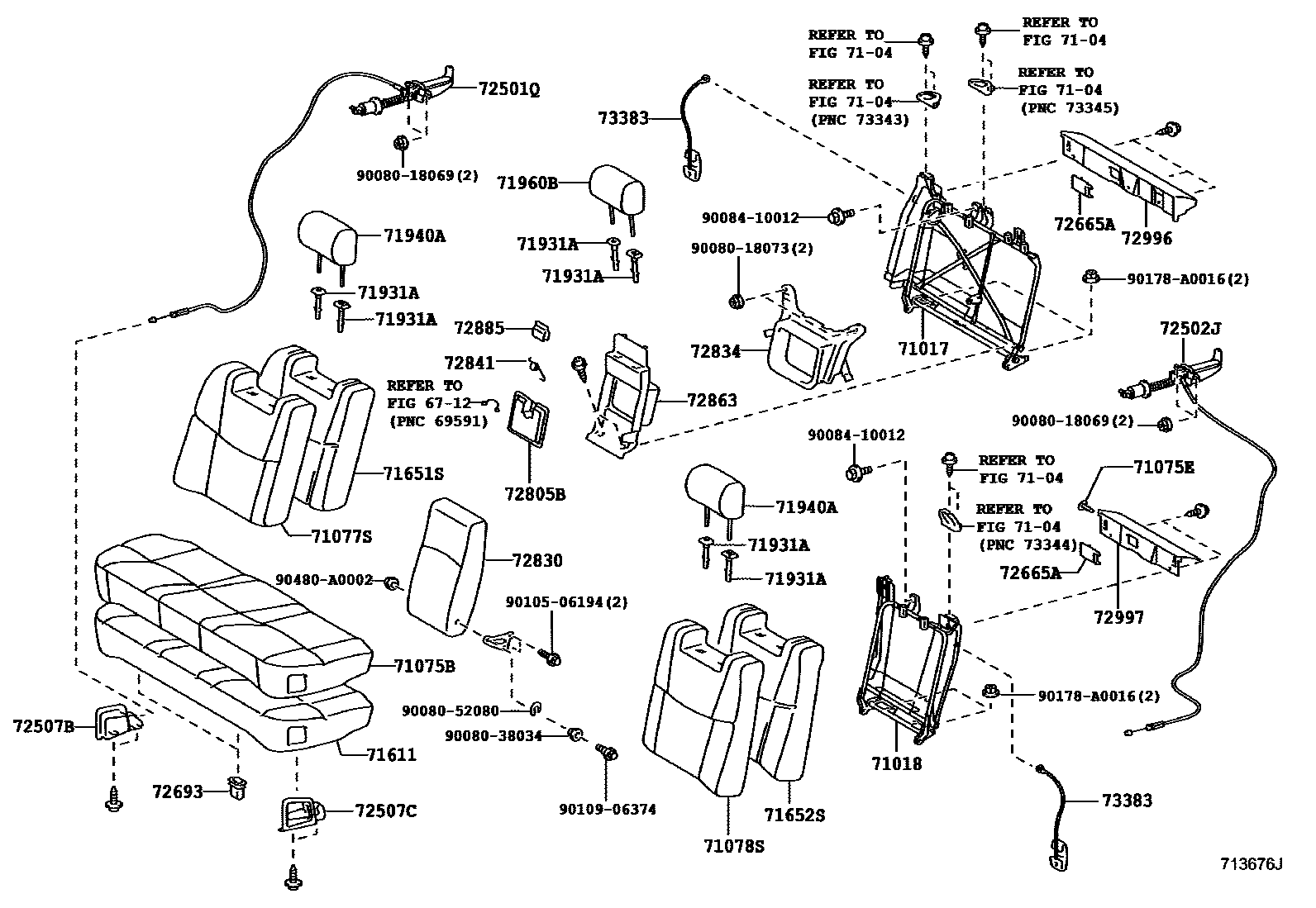

Parts diagram
6712LOCK CYLINDER SET
→ Go to FIG 67-12
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-AC040i200501-201210
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-AC010i200501-201210
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-07070-A0i201003-201210
IVORY,TRIM0#
main71075-07070-B0i201003-201210
LT.GRAY,TRIM1#
main71075-07070-C0i201003-201210
BLACK,TRIM2#
main71075-07080-A0i201003-201210
IVORY,TRIM0#
main71075-07080-B0i201003-201210
LT. GRAY,TRIM1#
main71075-07080-D0i201003-201210
CHAMBORD,TRIM2#
main71075-AC090-A1i200501-201003
IVORY,TRIM0#
main71075-AC090-B2i200501-201003
LT. GRAY,TRIM1#
main71075-AC100-A1i200707-201003
SPORTS PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),IVORY,TRIM0#
main71075-AC100-A1i200707-201003
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main71075-AC100-A1i200501-201003
IVORY,TRIM0#
main71075-AC100-B2i200501-201003
LT. GRAY,TRIM16
main71075-AC100-B2i200707-201003
SEAT COVER MATERIAL-LEATHER,LT. GRAY,TRIM16
main71075-AC100-B2i200707-201003
SPORTS PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),LT. GRAY,TRIM16
main71075-AC100-B3i200501-201003
GRAY,TRIM17
main71075-AC100-B4i200707-201003
SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM18
main71075-AC100-B4i200707-201003
DK.GRAY,TRIM18
main71075-AC100-B4i200707-201003
SPORTS PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM18
main71075-AC110-A1i200501-201003
IVORY,TRIM0#
main71075-AC110-B2i200501-201003
LT. GRAY,TRIM16
main71075-AC110-B3i200501-201003
GRAY,TRIM17
main71075-AC110-B4i200808-201003
DK GRAY,TRIM18
71075ECLIP(FOR REAR SEAT)
main90467-07076-A0i200506-201210
IVORY,TRIM0#
main90467-07076-B7i200506-201003
DK.GRAY,TRIM18
main90467-07076-C0i201003-201210
BLACK,TRIM2#
main90467-07076-P1i200506-201003
LT.GRAY,TRIM17
main90467-07076-P1i201003-201210
LT.GRAY,TRIM1#
main90467-07076-P6i200506-201003
GRAY,TRIM16
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-07060-A0i201003-201210
IVORY,TRIM0#
main71077-07060-B0i201003-201210
LT.GRAY,TRIM1#
main71077-07060-C0i201003-201210
BLACK,TRIM2#
main71077-07070-A0i201003-201210
IVORY,TRIM0#
main71077-07070-B0i201003-201210
LT. GRAY,TRIM1#
main71077-07070-D0i201003-201210
CHAMBORD,TRIM2#
main71077-AC150-A2i200501-201003
IVORY,TRIM0#
main71077-AC150-B5i200501-201003
GRAY,TRIM1#
main71077-AC160-A1i200707-201003
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main71077-AC160-A1i200501-201003
IVORY,TRIM0#
main71077-AC160-A1i200707-201003
SPORTS PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),IVORY,TRIM0#
main71077-AC160-B2i200707-201003
SPORTS PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),LT. GRAY,TRIM16
main71077-AC160-B2i200707-201003
SEAT COVER MATERIAL-LEATHER,LT. GRAY,TRIM16
main71077-AC160-B2i200501-201003
LT. GRAY,TRIM16
main71077-AC160-B3i200501-201003
GRAY,TRIM17
main71077-AC160-B4i200707-201003
DK.GRAY,TRIM18
main71077-AC160-B4i200707-201003
SPORTS PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM18
main71077-AC160-B4i200707-201003
SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM18
main71077-AC170-A1i200501-201003
IVORY,TRIM0#
main71077-AC170-B2i200501-201003
LT. GRAY,TRIM16
main71077-AC170-B3i200501-201003
GRAY,TRIM17
main71077-AC170-B4i200808-201003
DK GRAY,TRIM18
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-07020-A0i201003-201210
IVORY,TRIM0#
main71078-07020-B0i201003-201210
LT.GRAY,TRIM1#
main71078-07020-C0i201003-201210
BLACK,TRIM2#
main71078-07030-A0i201003-201210
IVORY,TRIM0#
main71078-07030-B0i201003-201210
LT. GRAY,TRIM1#
main71078-07030-D0i201003-201210
CHAMBORD,TRIM2#
main71078-AC010-A2i200501-201003
IVORY,TRIM0#
main71078-AC010-B5i200501-201003
GRAY,TRIM1#
main71078-AC020-A1i200707-201003
SPORTS PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),IVORY,TRIM0#
main71078-AC020-A1i200707-201003
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main71078-AC020-A1i200501-201003
IVORY,TRIM0#
main71078-AC020-B2i200707-201003
SPORTS PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),LT. GRAY,TRIM16
main71078-AC020-B2i200501-201003
LT. GRAY,TRIM16
main71078-AC020-B2i200707-201003
SEAT COVER MATERIAL-LEATHER,LT. GRAY,TRIM16
main71078-AC020-B3i200501-201003
GRAY,TRIM17
main71078-AC020-B4i200707-201003
SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM18
main71078-AC020-B4i200707-201003
DK.GRAY,TRIM18
main71078-AC020-B4i200707-201003
SPORTS PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM18
main71078-AC030-A1i200501-201003
IVORY,TRIM0#
main71078-AC030-B2i200501-201003
LT. GRAY,TRIM16
main71078-AC030-B3i200501-201003
GRAY,TRIM17
main71078-AC030-B4i200808-201003
DK GRAY,TRIM18
71611PAD, REAR SEAT CUSHION
main71503-AC040i200501-201210
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-AC010i200501-201210
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-AC010i200501-201210
71931ASUPPORT, REAR SEAT HEADREST
main71930-44020-A0i200808-201210
W(LOCK),IVORY,TRIM0#
main71930-44020-B0i200808-201003
W(LOCK),DK.GRAY,TRIM18
main71930-44020-B7i200808-201003
W(LOCK),GRAY,TRIM16
main71930-44020-B8i201003-201210
W(LOCK),LT.GRAY,TRIM1#
main71930-44020-B8i200808-201003
W(LOCK),LT.GRAY,TRIM17
main71930-44020-C0i201003-201210
W(LOCK),BLACK,TRIM2#
main71930-47010-A0i200501-200808
W(LOCK),IVORY,TRIM0#
main71930-47010-B2i200501-200808
W(LOCK),DK.GRAY,TRIM18
main71930-47010-B2i200707-200808
W(LOCK),SPORTS PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER SIDE &PASSENGER SIDE),DK.GRAY,TRIM18
main71930-47010-B2i200707-200808
W(LOCK),SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM18
main71930-47010-B9i200707-200808
W(LOCK),GRAY,TRIM1#
main71930-47010-B9i200501-200808
W(LOCK),GRAY,TRIM16
main71930-47010-P0i200501-200808
W(LOCK),LT.GRAY,TRIM17
main71931-47010-A0i200501-201210
W/O(LOCK),IVORY,TRIM0#
main71931-47010-B2i200501-201003
W/O(LOCK),DK.GRAY,TRIM18
main71931-47010-C0i201003-201210
W/O(LOCK),BLACK,TRIM2#
main71931-47010-P2i200501-201003
W/O(LOCK),GRAY,TRIM16
main71931-47010-P2i200707-200808
W/O(LOCK),GRAY,TRIM1#
main71931-47010-P3i200501-201003
W/O(LOCK),LT.GRAY,TRIM17
main71931-47010-P3i201003-201210
W/O(LOCK),LT.GRAY,TRIM1#
71940AHEADREST ASSY, REAR SEAT
main71940-07060-A2i201003-201008
IVORY,TRIM0#
main71940-07060-B2i201003-201008
LT.GRAY,TRIM1#
main71940-07060-C1i201003-201008
BLACK,TRIM2#
main71940-07061-A2i201009-201210
IVORY,TRIM0#
main71940-07061-B2i201009-201210
LT.GRAY,TRIM1#
main71940-07061-C1i201009-201210
BLACK,TRIM2#
main71940-07070-A0i201003-201008
IVORY,TRIM0#
main71940-07070-B0i201003-201008
LT.GRAY,TRIM1#
main71940-07070-C0i201003-201008
BLACK,TRIM2#
main71940-07071-A0i201009-201210
IVORY,TRIM0#
main71940-07071-B0i201009-201210
LT.GRAY,TRIM1#
main71940-07071-C0i201009-201210
BLACK,TRIM2#
main71940-AC090-A0i200501-201003
IVORY,TRIM0#
main71940-AC090-B0i200501-201003
GRAY,TRIM1#
main71940-AC100-A0i200707-201003
SPORTS PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),IVORY,TRIM0#
main71940-AC100-A0i200501-201003
IVORY,TRIM0#
main71940-AC100-A0i200707-201003
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main71940-AC100-B0i200501-201003
LT.GRAY,TRIM17
main71940-AC100-B1i200707-201003
SPORTS PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM18
main71940-AC100-B1i200707-201003
DK.GRAY,TRIM18
main71940-AC100-B1i200707-201003
SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM18
main71940-AC100-B2i200501-201003
GRAY,TRIM16
main71940-AC100-B2i200707-201003
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM16
main71940-AC100-B2i200707-201003
SPORTS PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),GRAY,TRIM16
71960BHEADREST ASSY, REAR SEAT, CENTER
main71940-07081-A0i201003-201210
IVORY,TRIM0#
main71940-07081-B0i201003-201210
LT.GRAY,TRIM1#
main71940-07081-C0i201003-201210
BLACK,TRIM2#
main71940-07120-A0i201003-201210
IVORY,TRIM0#
main71940-07120-B0i201003-201210
LT.GRAY,TRIM1#
main71940-07120-C0i201003-201210
BLACK,TRIM2#
main71940-AC110-A0i200501-201003
IVORY,TRIM0#
main71940-AC110-B0i200501-201003
GRAY,TRIM1#
main71940-AC120-A0i200707-201003
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main71940-AC120-A0i200501-201003
IVORY,TRIM0#
main71940-AC120-A0i200707-201003
SPORTS PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),IVORY,TRIM0#
main71940-AC120-B0i200501-201003
LT.GRAY,TRIM17
main71940-AC120-B1i200707-201003
DK.GRAY,TRIM18
main71940-AC120-B1i200707-201003
SPORTS PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM18
main71940-AC120-B1i200707-201003
SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM18
main71940-AC120-B2i200501-201003
GRAY,TRIM16
main71940-AC120-B2i200707-201003
SPORTS PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),GRAY,TRIM16
main71940-AC120-B2i200707-201003
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM16
72501QARM SUB-ASSY, NO.1 SEAT RECLINING ADJUSTER, UPPER NO.2 RH
main72505-AC010i200501-201003
72502JARM SUB-ASSY NO.1 SEAT RECLINING ADJUSTER, UPPER NO.2 LH
main72506-AC010i200501-201003
72507BHANDLE SUB-ASSY, RECLINING RELEASE, RH
main72507-AC010-A0i200501-201210
IVORY,TRIM0#
main72507-AC010-B0i200501-201003
LT.GRAY,TRIM17
main72507-AC010-B0i201003-201210
LT.GRAY,TRIM1#
main72507-AC010-B1i200501-201003
GRAY,TRIM16
main72507-AC010-B1i200707-200808
GRAY,TRIM1#
main72507-AC010-B2i200501-201003
DK.GRAY,TRIM18
main72507-AC010-C0i201003-201210
BLACK,TRIM2#
72507CHANDLE SUB-ASSY, RECLINING RELEASE, LH
main72507-AC020-A0i200501-201210
IVORY,TRIM0#
main72507-AC020-B0i200501-201003
LT.GRAY,TRIM17
main72507-AC020-B0i201003-201210
LT.GRAY,TRIM1#
main72507-AC020-B1i200501-201003
GRAY,TRIM16
main72507-AC020-B2i200501-201003
DK.GRAY,TRIM18
main72507-AC020-C0i201003-201210
BLACK,TRIM2#
72665ACAP(FOR REAR SEATBACK LOCK COVER)
main73949-AC010-A0i200501-201210
IVORY,TRIM0#
main73949-AC010-B0i200501-201003
LT.GRAY,TRIM17
main73949-AC010-B0i201003-201210
LT.GRAY,TRIM1#
main73949-AC010-B1i200501-201003
GRAY,TRIM16
main73949-AC010-B2i200501-201003
DK.GRAY,TRIM18
main73949-AC010-C0i201003-201210
BLACK,TRIM2#
72693HOOK, REAR SEAT CUSHION LOCK
main72693-12080i200501-201003
72805BDOOR SUB-ASSY, REAR SEAT CENTER ARMREST
main72833-AC010-A0i201003-201210
IVORY,TRIM0#
main72833-AC010-B1i201003-201210
LT.GRAY,TRIM1#
main72833-AC010-C0i201003-201210
BLACK,TRIM2#
main72833-AC050-A0i200501-201003
IVORY,TRIM0#
main72833-AC050-B0i200501-201003
LT.GRAY,TRIM17
main72833-AC050-B1i200707-201003
DK.GRAY,TRIM18
main72833-AC050-B1i200707-201003
SPORTS PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM18
main72833-AC050-B1i200707-201003
SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM18
main72833-AC050-B2i200501-201003
GRAY,TRIM1#
main72833-AC050-B2i200501-201003
GRAY,TRIM16
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-07040-A0i200702-200707
IVORY,TRIM0#
main72830-07040-A2i200707-201003
IVORY,TRIM0#
main72830-07040-B0i200702-200707
LT.GRAY,TRIM17
main72830-07040-B1i200702-200707
GRAY,TRIM16
main72830-07040-B4i200707-201003
LT.GRAY,TRIM17
main72830-07040-B5i200707-201003
GRAY,TRIM16
main72830-07040-B6i200808-201003
DK GRAY,TRIM18
main72830-07050-A0i201003-201210
IVORY,TRIM0#
main72830-07050-B0i201003-201210
LT GRAY,TRIM1#
main72830-07050-C0i201003-201210
BLACK,TRIM2#
main72830-AC100-A1i200501-201003
IVORY,TRIM0#
main72830-AC100-B2i200501-201003
LT. GRAY,TRIM1#
main72830-AC110-A1i200707-201003
SPORTS PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),IVORY,TRIM0#
main72830-AC110-A1i200501-201210
IVORY,TRIM0#
main72830-AC110-A1i200707-201003
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main72830-AC110-B2i200501-201003
LT. GRAY,TRIM17
main72830-AC110-B2i201003-201210
LT. GRAY,TRIM1#
main72830-AC110-B3i200707-201003
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM16
main72830-AC110-B3i200501-201003
GRAY,TRIM16
main72830-AC110-B3i200707-201003
SPORTS PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),GRAY,TRIM16
main72830-AC110-B4i200707-201003
SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM18
main72830-AC110-B4i200707-201003
SPORTS PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM18
main72830-AC110-B4i200707-201003
DK.GRAY,TRIM18
main72830-AC110-C0i201003-201210
BLACK,TRIM2#
main72830-AC120-A1i200501-200702
IVORY,TRIM0#
main72830-AC120-B2i200501-200702
LT. GRAY,TRIM17
main72830-AC120-B3i200501-200702
GRAY,TRIM16
72834PANEL, REAR SEAT CENTER ARMREST, NO.2
main72834-AC010i200501-201003
72841SPRING, REAR SEAT CENTER ARMREST, NO.1
main72841-07010i201003-201210
main72841-AC010i200501-201003
72863BOX, REAR SEAT CENTER ARMREST
main72863-AC020-A0i200501-201210
IVORY,TRIM0#
main72863-AC020-B0i200501-201003
LT.GRAY,TRIM17
main72863-AC020-B0i201003-201210
LT.GRAY,TRIM1#
main72863-AC020-B1i200501-201003
GRAY,TRIM1#
main72863-AC020-B1i200501-201003
GRAY,TRIM16
main72863-AC020-B2i200707-201003
SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM18
main72863-AC020-B2i200707-201003
DK.GRAY,TRIM18
main72863-AC020-B2i200707-201003
SPORTS PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM18
main72863-AC020-C0i201003-201210
BLACK,TRIM2#
72885HANDLE, REAR SEAT ARMREST
main72885-33010-A1i201003-201210
IVORY,TRIM0#
main72885-33010-B1i201003-201210
LT.GRAY,TRIM1#
main72885-33010-C0i201003-201210
BLACK,TRIM2#
main72885-AC030-A0i200501-201003
IVORY,TRIM0#
main72885-AC030-B0i200501-201003
LT.GRAY,TRIM17
main72885-AC030-B1i200707-201003
SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM18
main72885-AC030-B1i200707-201003
DK.GRAY,TRIM18
main72885-AC030-B1i200707-201003
SPORTS PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM18
main72885-AC030-B2i200501-201003
GRAY,TRIM1#
main72885-AC030-B2i200501-201003
GRAY,TRIM16
72996COVER, REAR SEATBACK, RH
main72996-AC040-A0i200501-201210
IVORY,TRIM0#
main72996-AC040-B0i201003-201210
LT.GRAY,TRIM1#
main72996-AC040-B0i200501-201003
LT.GRAY,TRIM17
main72996-AC040-B1i200501-201003
GRAY,TRIM16
main72996-AC040-B2i200501-201003
DK.GRAY,TRIM18
main72996-AC040-C0i201003-201210
BLACK,TRIM2#
72997COVER, REAR SEATBACK, LH
main72997-AC020-A0i200501-201210
IVORY,TRIM0#
main72997-AC020-B0i200501-201003
LT.GRAY,TRIM17
main72997-AC020-B0i201003-201210
LT.GRAY,TRIM1#
main72997-AC020-B1i200501-201003
GRAY,TRIM16
main72997-AC020-B2i200501-201003
DK.GRAY,TRIM18
main72997-AC020-C0i201003-201210
BLACK,TRIM2#
73383HOOK, RR SEAT BELT
main73383-AA020i200501-201210
9008018069
main90080-18069
9008018073
main90080-18073
9008038034
main90080-38034
9008052080
main90080-52080
9008410012
main90084-10012
9010506194
main90105-06194
9010906374
main90109-06374
90178A0016
main90178-A0016
90480A0002
main90480-A0002

38 parts on this diagram · 1 diagram in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
