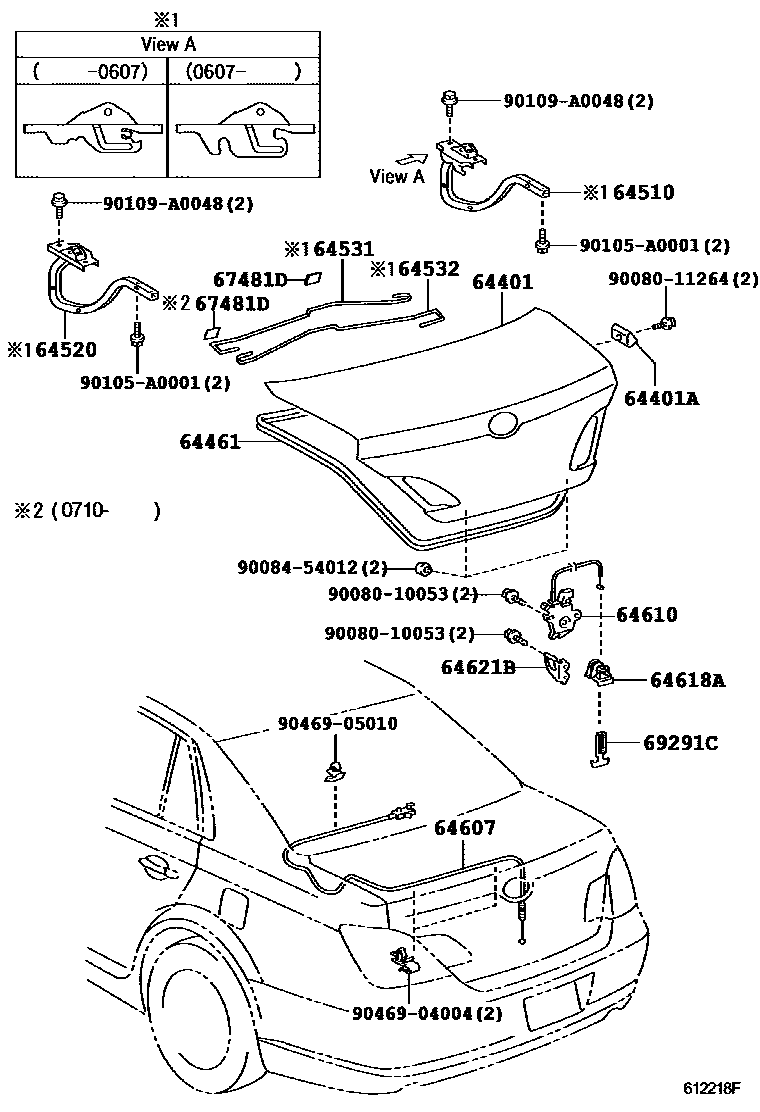

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1 0002 1

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-07100iGSX30..LIMD201003

main64401-AC050iGSX30..LIMD,XLS200707-201003

main64401-07080supersedes 64401-07090iGSX30..XLS201003

BLACK CAR PACKAGE; DECONTENT PACKAGE

main64401-AC070iGSX30..XL200506-200707

SPORTS PACKAGE

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main64459-53010×2iGSX30..LIMD,XLS200707-201003

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-07040iGSX30201003

main64461-AC030iGSX30200501-200707

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-AC030iGSX30200501-200607

main64510-AC031iGSX30200607-200707

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-AC030iGSX30200501-200607

main64520-AC031iGSX30200607-200707

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-07010iGSX30201003-201210

main64531-AC050iGSX30200501-200607

main64531-AC051iGSX30200607-200707

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-07010iGSX30201003-201210

main64532-AC050iGSX30200501-200607

main64532-AC051iGSX30200707-201003

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-AC030iGSX30..XL200707

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-AC030iGSX30200501-200707

64618ACLAMP, LUGGAGE LOCK CONTROL CABLE

main64618-AC020iGSX30..XL200707

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-AC010iGSX30200501-200707

67481DSEAL, LUGGAGE TORSION BAR

main67481-AA020iGSX30200501-200707

69291CHANDLE, LUGGAGE COMPARTMENT DOOR, INSIDE

main69291-AC010iGSX30200501-200707

9008010053

main90080-10053

9008011264

main90080-11264

9008454012

main90084-54012

90105A0001

main90105-A0001

90109A0048

main90109-A0048

9046904004

main90469-04004

9046905010

main90469-05010

20 parts on this diagram · 2 diagrams in section
