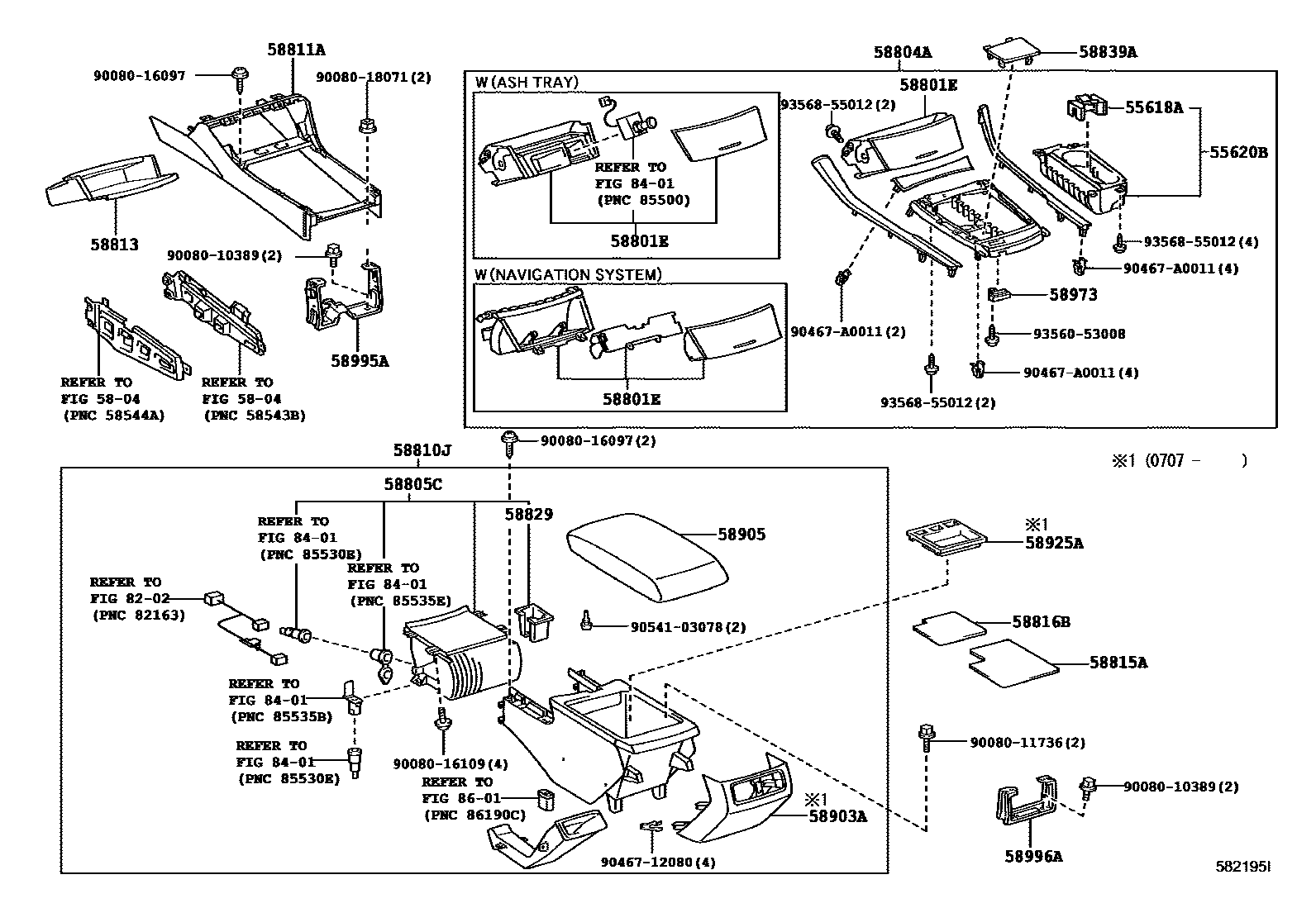

CONSOLE BOX & BRACKET
55618AHOLDER, CONSOLE BOX CUP
55620BHOLDER, INSTRUMENT PANEL CUP
5804
58801EBOX SUB-ASSY, CONSOLE, UPPER
MEDIUM YELLOWISH BROWN,TRIM0#,1#
DARK REDDISH BROWN,TRIM2#
SPORTS PACKAGE&AUDIO-JBL AM/FM/CD-CH 12SP & CASSETTE
ASH TRAY-WITH(FR)
EMV & NAVIGATION SYSTEM-WITH
EMV & NAVIGATION SYSTEM-WITH
EMV & NAVIGATION SYSTEM-WITH
EMV & NAVIGATION SYSTEM-WITH
58804APANEL SUB-ASSY, CONSOLE, UPPER
DARK GRAY,TRIM18
SILVER FINISH,TRIM0#,16
DARK GRAY,TRIM18
SILVER FINISH,TRIM0#,16
SANDALWOOD,TRIM0#,1#
SANDALWOOD,TRIM0#,1#
MEDIUM YELLOWISH BROWN,TRIM0#,1#
DARK REDDISH BROWN,TRIM2#
AUDIO-AM/FM/CD-CH 9SP & CASSETTE,DARK GRAY,TRIM18
AUDIO-AM/FM/CD-CH 9SP & CASSETTE,SILVER,TRIM0#,16
AUDIO-JBL AM/FM/CD-CH 12SP & CASSETTE,LT.BROWN,TRIM16
AUDIO-JBL AM/FM/CD-CH 12SP & CASSETTE,LT.BROWN,TRIM0#,17
ASH TRAY-WITH(FR),DARK GRAY,TRIM18
ASH TRAY-WITH(FR),SILVER,TRIM0#,16
ASH TRAY-WITH(FR),LT.BROWN,TRIM16
ASH TRAY-WITH(FR),LT.BROWN,TRIM0#,17
EMV & NAVIGATION SYSTEM-WITH,LT.BROWN,TRIM16
EMV & NAVIGATION SYSTEM-WITH,LT.BROWN,TRIM0#,17
EMV & NAVIGATION SYSTEM-WITH,SANDALWOOD,TRIM0#,1#
EMV & NAVIGATION SYSTEM-WITH,LT.BROWN,TRIM16
EMV & NAVIGATION SYSTEM-WITH,LT.BROWN,TRIM0#,17
EMV & NAVIGATION SYSTEM-WITH,SANDALWOOD,TRIM0#,1#
SPORTS PACKAGE&AUDIO-JBL AM/FM/CD-CH 12SP&EMV & NAVIGATION SYSTEM-WITH,DARK GRAY,TRIM1#
SPORTS PACKAGE&AUDIO-JBL AM/FM/CD-CH 12SP&EMV & NAVIGATION SYSTEM-WITH
SPORTS PACKAGE&AUDIO-JBL AM/FM/CD-CH 12SP&EMV & NAVIGATION SYSTEM-WITH,DARK GRAY,TRIM1#
SPORTS PACKAGE&AUDIO-JBL AM/FM/CD-CH 12SP&EMV & NAVIGATION SYSTEM-WITH,DARK GRAY,TRIM1#
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
IVORY,TRIM0#
LT.GRAY,TRIM17
GRAY,TRIM16
DK.GRAY,TRIM18
IVORY,TRIM0#
LT.GRAY,TRIM1#
GRAY,TRIM16
DK.GRAY,TRIM18
BLACK,TRIM2#
58810JBOX ASSY, CONSOLE
IVORY,TRIM0#
LT.GRAY,TRIM17
GRAY,TRIM16
DK.GRAY,TRIM18
IVORY,TRIM0#
LT.GRAY,TRIM17
GRAY,TRIM16
IVORY,TRIM0#
LT.GRAY,TRIM17
DK.GRAY,TRIM18
GRAY,TRIM16
IVORY,TRIM0#
LT.GRAY,TRIM17
DK.GRAY,TRIM18
GRAY,TRIM16
IVORY,TRIM0#
LT.GRAY,TRIM17
GRAY,TRIM16
DK.GRAY,TRIM18
IVORY,TRIM0#
LT.GRAY,TRIM17
GRAY,TRIM16
DK.GRAY,TRIM18
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
58811ABOX, CONSOLE, FRONT
IVORY,TRIM0#
LT.GRAY,TRIM17
GRAY,TRIM16
DK.GRAY,TRIM18
BLACK,TRIM2#
AUDIO-AM/FM/CD-CH 9SP & CASSETTE,IVORY,TRIM0#
AUDIO-AM/FM/CD 9SP & CASSETTE,LT.GRAY,TRIM17
AUDIO-JBL AM/FM/CD-CH 12SP & CASSETTE,GRAY,TRIM16
AUDIO-AM/FM/CD 9SP & CASSETTE,DK.GRAY,TRIM18
58813BOX, CONSOLE, UPPER
58815ACARPET, CONSOLE BOX
58816BINSERT, CONSOLE BOX
58829POCKET, CONSOLE BOX
58839ACOVER, CONSOLE BOX HOLE
58903APANEL SUB-ASSY, CONSOLE REAR END
IVORY,TRIM0#
LT.GRAY,TRIM17
GRAY,TRIM16
DK GRAY,TRIM18
IVORY,TRIM0#
LT.GRAY,TRIM17
GRAY,TRIM16
DK.GRAY,TRIM18
BLACK,TRIM2#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
IVORY,TRIM0#
LT.GRAY,TRIM17
GRAY,TRIM16
DK.GRAY,TRIM18
IVORY,TRIM0#
IVORY,TRIM0#
LT.GRAY,TRIM17
GRAY,TRIM16
DK.GRAY,TRIM18
LT.GRAY,TRIM1#
BLACK,TRIM2#
58925APOCKET, CONSOLE BOX, REAR
58973PIN, CONSOLE COMPARTMENT DOOR LOCK
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
8202
8401
8601
9008010389
main90080-10389
9008011736
main90080-11736
9008016097
main90080-16097
9008016109
main90080-16109
9008018071
main90080-18071
9046712080
main90467-12080
90467A0011
main90467-A0011
9054103078
main90541-03078
9356053008
main93560-53008
9356855012
main93568-55012
32 parts on this diagram · 1 diagram in section
