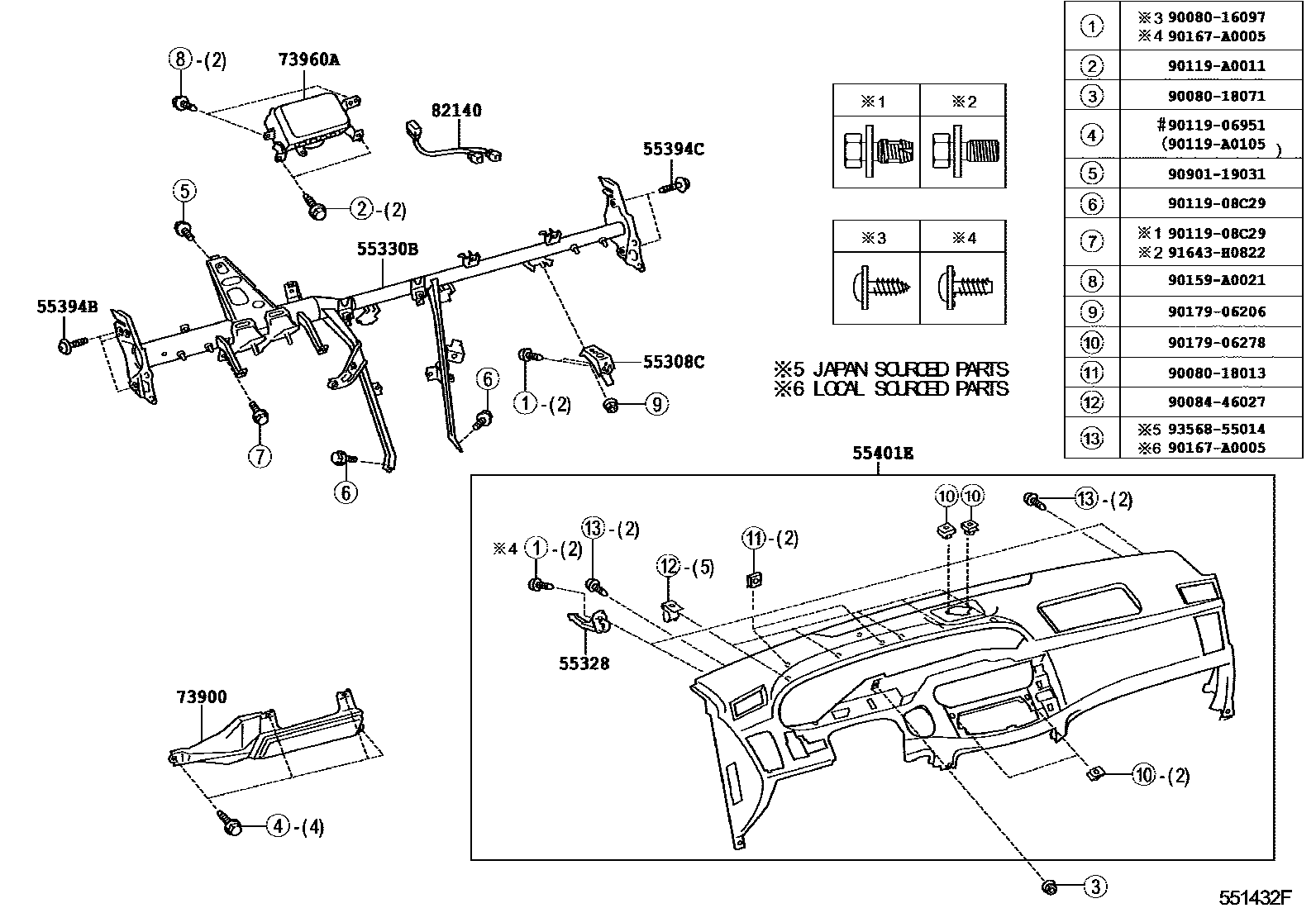

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1CENTER 0005 1PASSENGER SIDE 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-07010iGSX30200501-200707

55328PIN, INSTRUMENT PANEL, NO.1

main55328-48040×2iGSX30..LIMD,XLS200707-201003

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-07030iGSX30200707-200906

main55330-07031iGSX30..LIMD,XLS200906-201003

main55330-07040iGSX30201003-201009

main55330-07041iGSX30201010

55394BBOLT, INSTRUMENT PANEL

main55394-30020×3iGSX30200501-200602

main55394-30021×3iGSX30201003

55394CBOLT, INSTRUMENT PANEL

main55394-33041×2iGSX30201003

main55394-51010×2iGSX30200501-200602

main55394-51011×2iGSX30200603-200604

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-07060-B1iGSX30..LIMD,XLS200501-200707

LT.GRAY,TRIM17

main55401-07060-B2iGSX30..XL200501-200707

DK.GRAY,TRIM18

main55401-07060-B3iGSX30200707-201003

GRAY,TRIM16

main55401-07060-E1iGSX30200707-201003

SANDAL WOOD,TRIM0#

main55401-07070-C0iGSX30201003-201210

IVORY,TRIM0#

main55401-07070-C1iGSX30201003-201210

LT.GRAY,TRIM1#

main55401-07070-C2iGSX30201003-201210

BLACK,TRIM2#

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-07010-A0iGSX30200501-200612

IVORY,TRIM0#

main73900-07010-B0iGSX30200501-200612

LT.GRAY,TRIM17

main73900-07010-B1iGSX30200501-200612

GRAY,TRIM16

main73900-07010-B2iGSX30..XL200501-200612

DK.GRAY,TRIM18

main73900-07011-A0iGSX30201003-201210

IVORY,TRIM0#

main73900-07011-B0iGSX30..LIMD,XLS200707-201003

LT.GRAY,TRIM17

main73900-07011-B1iGSX30200707-201003

GRAY,TRIM16

main73900-07011-B2iGSX30200707-201003

DK.GRAY,TRIM18

main73900-07011-C0iGSX30201003-201210

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-07060iGSX30..LIMD,XLS200707-201003

main73960-07070iGSX30201003

82140WIRE ASSY, INSTRUMENT PANEL

main82140-0N010iGSX30201010

main82140-30020iGSX30201003-201009

9008016097

main90080-16097

9008018013

main90080-18013

9008018071

main90080-18071

9008446027

main90084-46027

9011906951

main90119-06951

9011908C29

main90119-08C29

90119A0011

main90119-A0011

90119A0105

main90119-A0105

90159A0021

main90159-A0021

90167A0005

main90167-A0005

9017906206

main90179-06206

9017906278

main90179-06278

9090119031

main90901-19031

91643H0822

main91643-H0822

9356855014

main93568-55014

24 parts on this diagram · 8 diagrams in section
