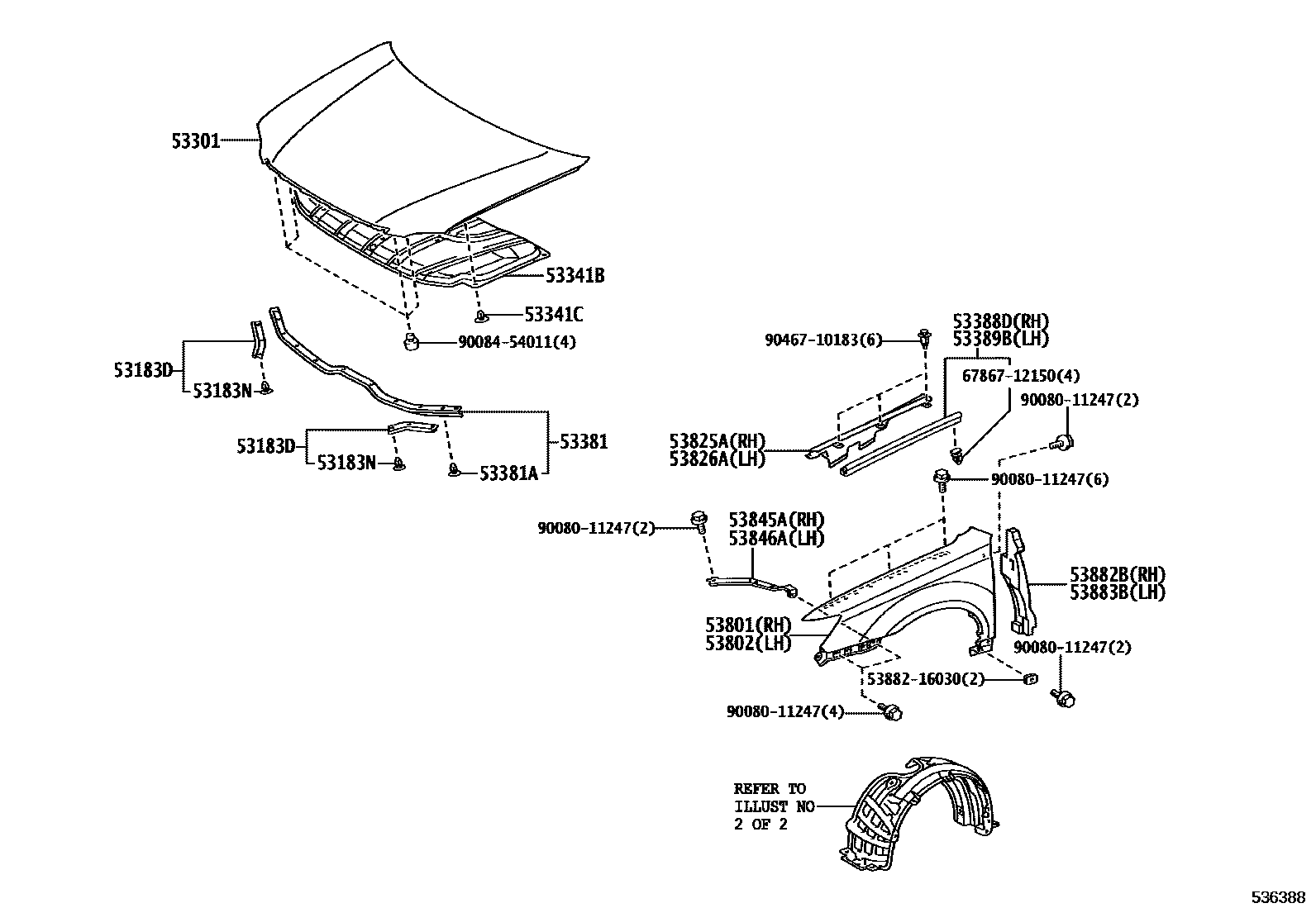

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53183DSEAL, HEADLAMP COVER TO HOOD

main53183-07010iGSX30201003

main53183-AC030iGSX30..XL200501-201003

53183NCLIP(FOR HEADLAMP COVER SEAL)

main90080-46010iGSX30..LIMD,XLS200501-201003

53301HOOD SUB-ASSY

main53301-07040iGSX30201003-201004

main53301-07041iGSX30201004-201210

main53301-AC040iGSX30200501-201003

53341BINSULATOR, HOOD

main53341-07010iGSX30201003

main53341-AC030iGSX30200501-201003

53341CCLIP(FOR HOOD INSULATOR)

main90467-A0003iGSX30200501-201003

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-AC030iGSX30200501-201003

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90080-46010iGSX30200501-201003

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-AC010iGSX30200501-201003

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-AC010iGSX30200501-201003

53801FENDER SUB-ASSY, FRONT RH

main53811-07060iGSX30201003

main53811-AC050iGSX30..LIMD,XLS200501-201003

53802FENDER SUB-ASSY, FRONT LH

main53812-07060iGSX30201003

main53812-AC050iGSX30..XL200501-201003

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-07010iGSX30200501-201003

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-07010iGSX30200501-201003

53845ABRACE, FRONT WHEEL OPENING APRON, RH

main53845-AC020iGSX30200501-201210

53846ABRACE, FRONT WHEEL OPENING APRON, LH

main53846-AC020iGSX30200501-201210

53882BSEAL, FRONT FENDER, RH

main53882-AC020iGSX30200501-201003

53883BSEAL, FRONT FENDER, LH

main53883-AC020iGSX30200501-201003

5388216030PACKING, FRONT FENDER MAIN

main53882-16030

6786712150CLIP, DOOR WEATHERSTRIP

main67867-12150

9008011247

main90080-11247

9008454011

main90084-54011

9046710183

main90467-10183

22 parts on this diagram · 2 diagrams in section
