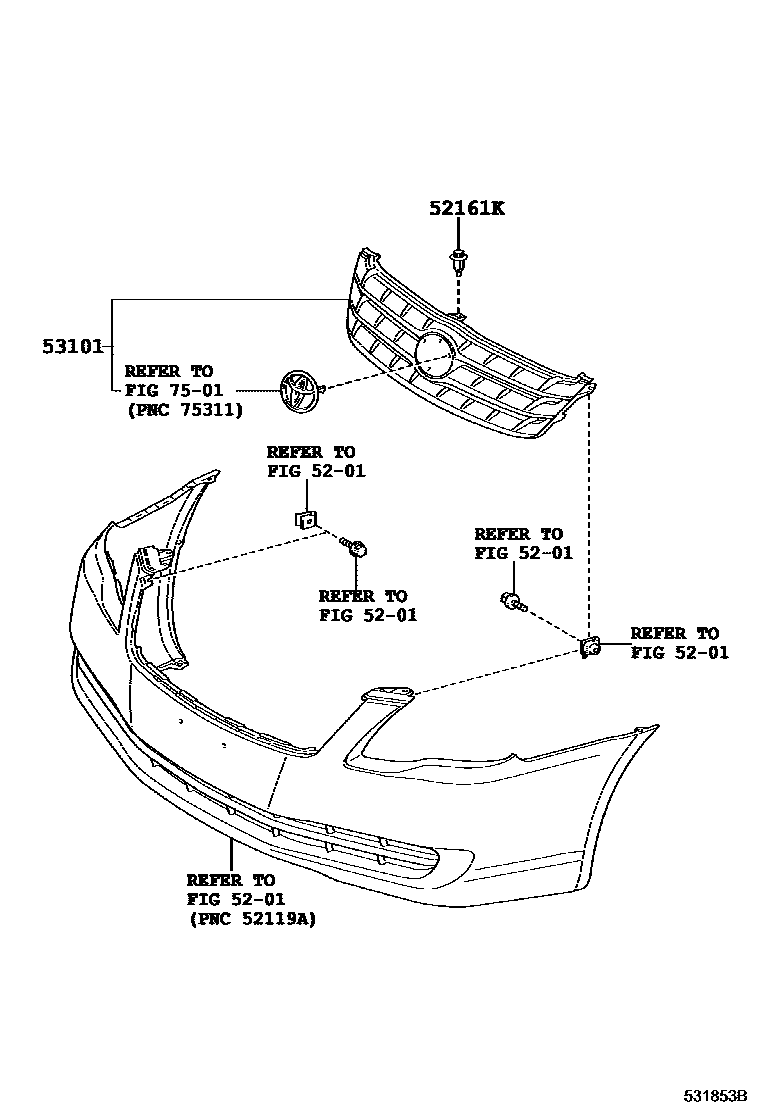

RADIATOR GRILLE

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

52161KPIECE, FRONT BUMPER

main52161-02020iGSX30200501-201210

53101GRILLE SUB-ASSY, RADIATOR

main53101-07030iGSX30..XL200707-201003

PLATED

main53101-07050iGSX30..LIMD,XLS200707-201003

PLATED

main53101-AC030-A0iGSX30200501-200707

WHITE PEARL CS.,070

main53101-AC030-B0iGSX30200501-200707

SILVER ME.,1D4

main53101-AC030-B1iGSX30200501-200707

GRAY M.M.,1E3

main53101-AC030-C0iGSX30200501-200707

BLACK,202

main53101-AC030-D0iGSX30200501-200707

DK RED MC,3Q7

main53101-AC030-E0iGSX30200501-200707

BEIGE M. M.,4Q2

main53101-AC030-G0iGSX30200501-200707

LT.GREEN ME.,6U0

main53101-AC030-J0iGSX30200501-200707

DK.BLUE M.M.,8P4

main53101-AC030-J1iGSX30200501-200707

BLUE ME.,8R5

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

4 parts on this diagram · 2 diagrams in section
