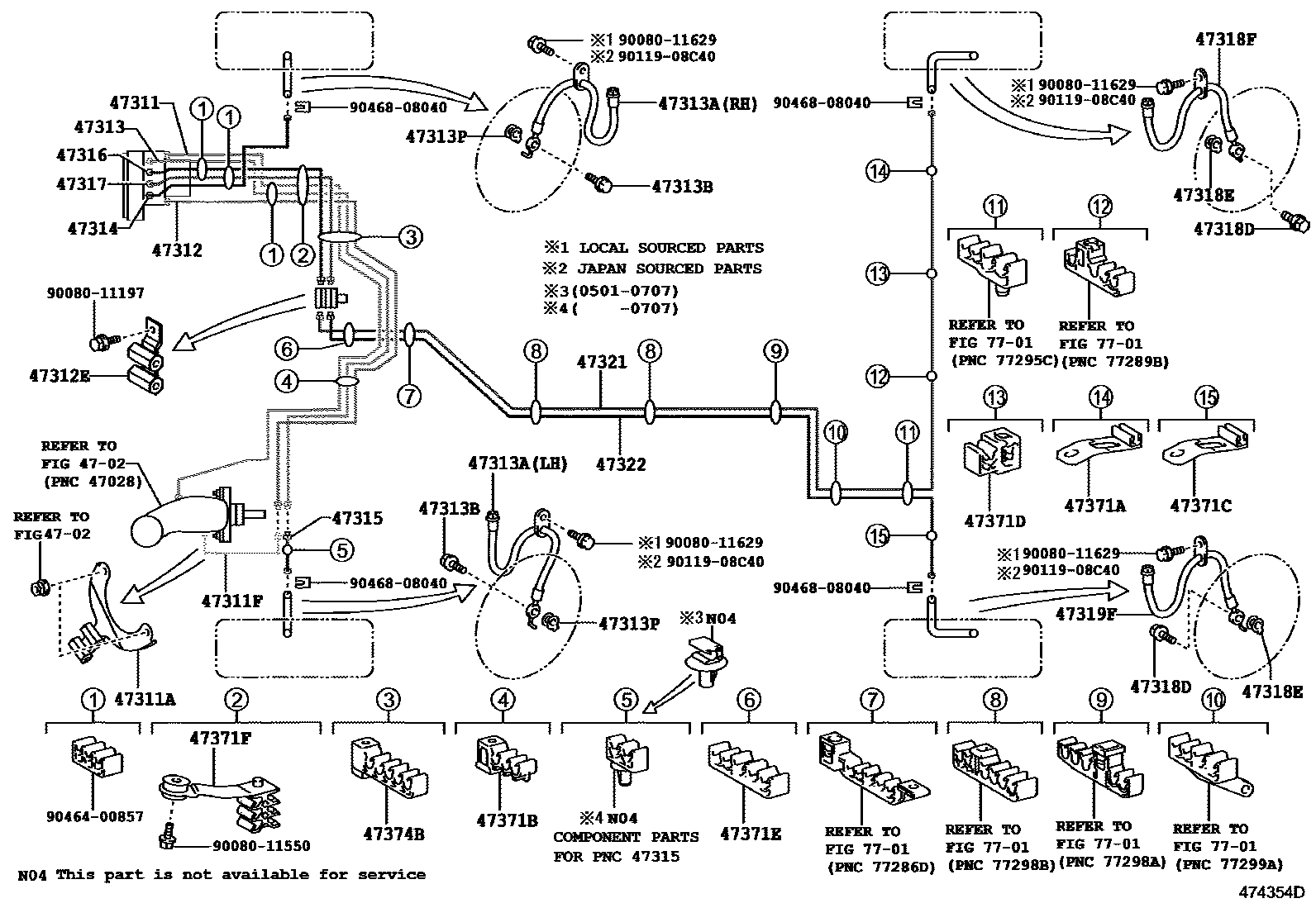

BRAKE TUBE & CLAMP

0001 1 0002 1W(VSC) 0004 1 0005 1W(VSC)

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-06140iGSX30200707-200808

main47311-07060iGSX30..LIMD,XLS200808-201003

main47311-07090iGSX30200501-200707

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10256iGSX30200501-200707

main90412-10262iGSX30200707-201210

47311FTUBE, FRONT BRAKE, FRAME NO.1

main47311-06130iGSX30200707-201210

main47311-07100iGSX30200501-200707

47312TUBE, FRONT BRAKE, NO.2

main47312-06110iGSX30200707-200808

main47312-07040iGSX30..XL200808-201003

main47312-07070iGSX30200501-200707

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10246iGSX30..LIMD,XLS200501-201003

47313TUBE, FRONT BRAKE, NO.3

main47313-06100iGSX30200707-200808

main47313-07010iGSX30200808-201003

main47313-07040iGSX30200501-200707

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-A2011iGSX30200501-201003

RH

main90947-A2012iGSX30200501-201003

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iGSX30200501-200601

main90401-10058iGSX30200602-201003

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iGSX30200501-200707

main47389-50021iGSX30..XL200707-201003

47314TUBE, FRONT BRAKE, NO.4

main47314-06100iGSX30200707-200808

main47314-07020iGSX30..LIMD,XLS200808-201003

main47314-07050iGSX30200501-200707

47315TUBE, FRONT BRAKE, NO.5

main47315-06140iGSX30..LIMD,XLS200707-201003

main47315-07070iGSX30200501-200707

47316TUBE, FRONT BRAKE, NO.6

main47316-06170iGSX30200707-200808

main47316-07050iGSX30200808-201003

main47316-07080iGSX30200501-200707

47317TUBE, FRONT BRAKE, NO.7

main47317-06150iGSX30200707-200808

main47317-07050iGSX30..XL200808-201003

main47317-07080iGSX30200501-200707

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015iGSX30200501-200601

main90401-10058iGSX30200602-201003

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iGSX30200602-200707

main47389-50021iGSX30..LIMD,XLS200707-201003

main90430-10074iGSX30200501-200602

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90080-94125iGSX30200501-200601

main90947-A2017iGSX30..LIMD,XLS200602-201003

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90080-94126iGSX30200501-200601

main90947-A2018iGSX30200602-201003

47321TUBE, REAR BRAKE, NO.1

main47321-07060iGSX30200501-201210

47322TUBE, REAR BRAKE, NO.2

main47322-07060iGSX30200501-201210

47371ACLAMP, BRAKE TUBE, NO.1

main47371-32130iGSX30200501-201210

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01C95iGSX30200501-201003

47371CCLAMP, BRAKE TUBE, NO.7

main47371-32140iGSX30200501-201210

47371DCLAMP, BRAKE TUBE, NO.8

main90949-01B45iGSX30200501-201210

47371ECLAMP, BRAKE TUBE, NO.9

main90949-01C53iGSX30200501-201210

47371FCLAMP, BRAKE TUBE, NO.10

main90949-A4009iGSX30200501-201003

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D06iGSX30..LIMD,XLS200808-201003

main90949-A1009iGSX30200501-200808

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9008011197

main90080-11197

9008011550

main90080-11550

9008011629

main90080-11629

9011908C40

main90119-08C40

9046400857

main90464-00857

9046808040

main90468-08040

34 parts on this diagram · 4 diagrams in section
