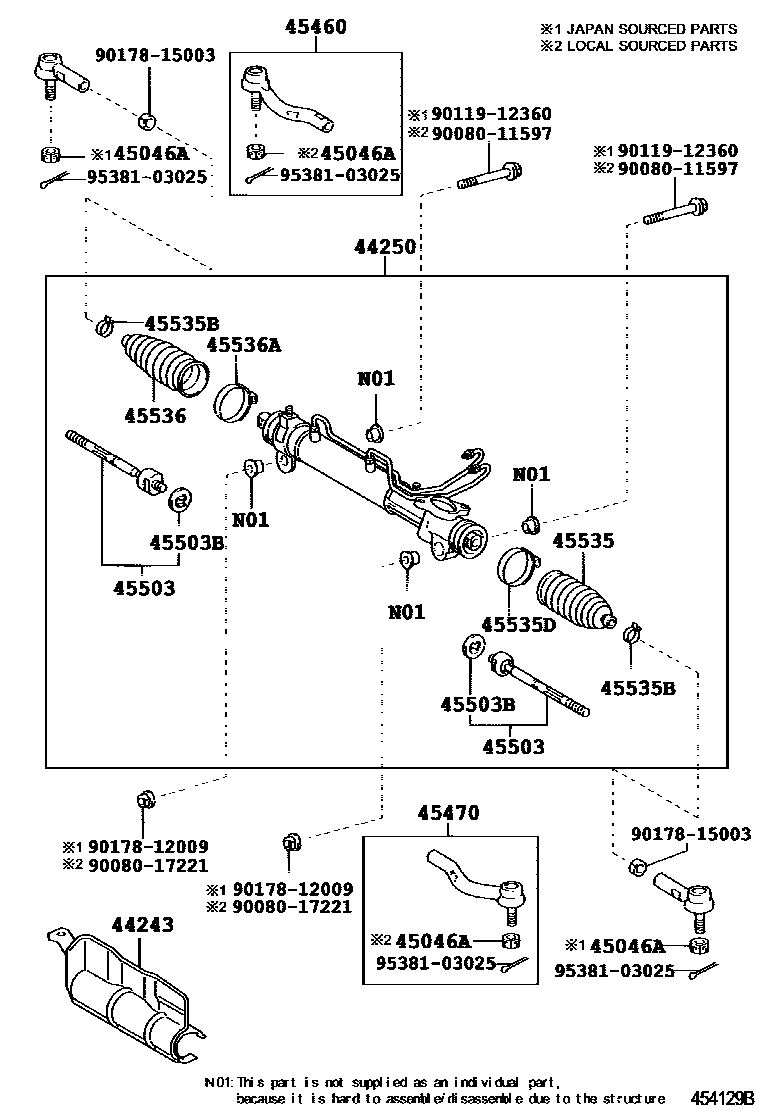

FRONT STEERING GEAR & LINK

0001 1 0002 1

44243INSULATOR, POWER STEERING RACK HOUSING HEAT

main44243-33010iGSX30200501-200707

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-07100iGSX30200501-200707

main44250-07101iGSX30200710-201003

45046ANUT, CASTLE(FOR TIE ROD END)

main90080-17220×2iGSX30200501-200707

(L)

main90171-12028×2iGSX30..XL200707

(J)

45460ROD ASSY, TIE, RH

main45460-09050iGSX30200501-200707

45470ROD ASSY, TIE, LH

main45470-09040iGSX30..XL200707

45503END SUB-ASSY, STEERING RACK

main45503-09420iGSX30200501-200707

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14009×2iGSX30200501-200707

OD=35.2

45535BOOT, STEERING RACK, NO.1

main45535-06030iGSX30200501-200707

45535BCLIP(FOR STEERING RACK BOOT)

main90080-46153×2iGSX30200501-200707

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90080-46293iGSX30200501-200707

45536BOOT, STEERING RACK, NO.2

main45535-06030iGSX30200501-200707

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90080-46293iGSX30200501-200707

9008011597

main90080-11597

9008017221

main90080-17221

9011912360

main90119-12360

9017812009

main90178-12009

9017815003

main90178-15003

9538103025

main95381-03025

18 parts on this diagram · 2 diagrams in section
