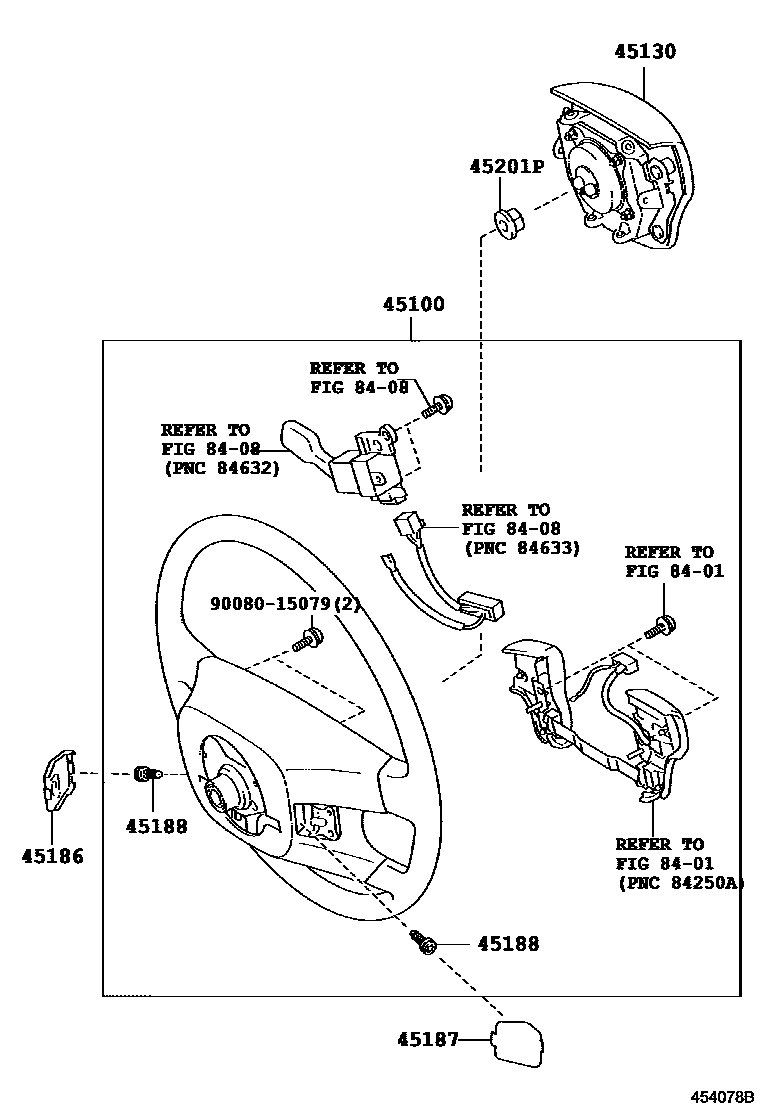

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-07211-A0i200501-200707

4-SPOKE,URETHANE,IVORY,TRIM0#

main45100-07211-B1i200501-200707

4-SPOKE,URETHANE,GRAY,TRIM1#

main45100-07370-B0i201003-201210

4-SPOKE,WOOD&LEATHER,INTERIOR UPGRADE PACK,LT GREY / MED YELLOW BRN,TRIM1#; 4-SPOKE,WOOD&LEATHER,LT GREY / MED YELLOW BRN,TRIM1#

main45100-07370-C0i201003-201210

4-SPOKE,WOOD&LEATHER,BLK / DRK RED BRN,TRIM2#; 4-SPOKE,WOOD&LEATHER,INTERIOR UPGRADE PACK,BLK / DRK RED BRN,TRIM2#

main45100-07221-A0i200608-200707

4-SPOKE,LEATHER,STEERING WHEEL-LEATHER W/STEERING S/W,IVORY,TRIM0#

main45100-07221-B1i200501-200608

4-SPOKE,LEATHER,SPORTS PACKAGE,GRAY,TRIM16

main45100-07221-B2i200608-200707

4-SPOKE,LEATHER,STEERING WHEEL-LEATHER W/STEERING S/W,DK.GRAY,TRIM18

main45100-07223-A0supersedes 45100-07214-A0i200707-200708

4-SPOKE,LEATHER,IVORY,TRIM0#; 4-SPOKE,LEATHER,STEERING WHEEL-LEATHER W/STEERING S/W,IVORY,TRIM0#

main45100-07223-B1i200707-200708

4-SPOKE,LEATHER,GRAY,TRIM16; 4-SPOKE,LEATHER,STEERING WHEEL-LEATHER W/STEERING S/W,GRAY,TRIM16

main45100-07223-B2i200707-200708

4-SPOKE,LEATHER,STEERING WHEEL-LEATHER W/STEERING S/W,DK.GRAY,TRIM18

main45100-07224-A0supersedes 45100-07214-A0i200709-201003

4-SPOKE,LEATHER,IVORY,TRIM0#; 4-SPOKE,LEATHER,STEERING WHEEL-LEATHER W/STEERING S/W,IVORY,TRIM0#

main45100-07224-B1i200709-201003

4-SPOKE,LEATHER,GRAY,TRIM16; 4-SPOKE,LEATHER,STEERING WHEEL-LEATHER W/STEERING S/W,GRAY,TRIM16

main45100-07224-B2i200709-201003

4-SPOKE,LEATHER,DK.GRAY,TRIM18; 4-SPOKE,LEATHER,STEERING WHEEL-LEATHER W/STEERING S/W,DK.GRAY,TRIM18

main45100-07231-A0supersedes 45100-07221-A0i200501-200707

4-SPOKE,LEATHER,EMV & NAVIGATION SYSTEM-WITH,IVORY,TRIM0#

main45100-07231-B0supersedes 45100-07221-B0i200501-200707

4-SPOKE,LEATHER,EMV & NAVIGATION SYSTEM-WITH,LT.GRAY,TRIM17

main45100-07231-B1supersedes 45100-07221-B1i200501-200707

4-SPOKE,LEATHER,EMV & NAVIGATION SYSTEM-WITH,GRAY,TRIM16

main45100-07231-B2i200608-200707

4-SPOKE,LEATHER,STEERING WHEEL-LEATHER W/STEERING S/W&EMV & NAVIGATION SYSTEM-WITH,DK.GRAY,TRIM1#

main45100-07281-A0supersedes 45100-07221-A0i200501-200707

4-SPOKE,WOOD&LEATHER,INTERIOR UPGRADE PACK,IVORY,TRIM0#; 4-SPOKE,WOOD&LEATHER,IVORY,TRIM0#

main45100-07281-B0supersedes 45100-07221-B0i200501-200707

4-SPOKE,WOOD&LEATHER,INTERIOR UPGRADE PACK,LT.GRAY,TRIM17; 4-SPOKE,WOOD&LEATHER,LT.GRAY,TRIM17

main45100-07281-B1supersedes 45100-07221-B1i200501-200707

4-SPOKE,WOOD&LEATHER,GRAY,TRIM16; 4-SPOKE,WOOD&LEATHER,INTERIOR UPGRADE PACK,GRAY,TRIM16

main45100-07283-A1supersedes 45100-07360-A0i200707-200708

4-SPOKE,WOOD&LEATHER,INTERIOR UPGRADE PACK,IVORY,TRIM0#

main45100-07283-B2supersedes 45100-07224-B0i200707-200708

4-SPOKE,WOOD&LEATHER,INTERIOR UPGRADE PACK,LT.GRAY,TRIM17

main45100-07283-B3supersedes 45100-07224-B1i200707-200708

4-SPOKE,WOOD&LEATHER,INTERIOR UPGRADE PACK,GRAY,TRIM16

main45100-07284-A1supersedes 45100-07360-A0i200709-201003

4-SPOKE,WOOD&LEATHER,INTERIOR UPGRADE PACK,IVORY,TRIM0#

main45100-07284-B2supersedes 45100-07224-B0i200709-201003

4-SPOKE,WOOD&LEATHER,INTERIOR UPGRADE PACK,LT.GRAY,TRIM17

main45100-07284-B3supersedes 45100-07224-B1i200709-201003

4-SPOKE,WOOD&LEATHER,INTERIOR UPGRADE PACK,GRAY,TRIM16

main45100-07284-B4i200808-201003

4-SPOKE,WOOD&LEATHER,INTERIOR UPGRADE PACK,SANDAL WOOD/ DARK GRAY,TRIM18

main45100-07291-A0supersedes 45100-07281-A0i200501-200707

4-SPOKE,WOOD&LEATHER,CRUISE CONTROL-LASER RADAR CRUISE,IVORY,TRIM0#

main45100-07291-B0supersedes 45100-07281-B0i200501-200707

4-SPOKE,WOOD&LEATHER,CRUISE CONTROL-LASER RADAR CRUISE,LT.GRAY,TRIM17

main45100-07291-B1supersedes 45100-07281-B1i200501-200707

4-SPOKE,WOOD&LEATHER,CRUISE CONTROL-LASER RADAR CRUISE,GRAY,TRIM16

main45100-07301-A0supersedes 45100-07221-A0i200501-200707

4-SPOKE,WOOD&LEATHER,EMV & NAVIGATION SYSTEM-WITH,IVORY,TRIM0#; 4-SPOKE,WOOD&LEATHER,INTERIOR UPGRADE PACK&EMV & NAVIGATION SYSTEM-WITH,IVORY,TRIM0#

main45100-07301-B0supersedes 45100-07221-B0i200501-200707

4-SPOKE,WOOD&LEATHER,EMV & NAVIGATION SYSTEM-WITH,LT.GRAY,TRIM17; 4-SPOKE,WOOD&LEATHER,INTERIOR UPGRADE PACK&EMV & NAVIGATION SYSTEM-WITH,LT.GRAY,TRIM17

main45100-07301-B1supersedes 45100-07221-B1i200501-200707

4-SPOKE,WOOD&LEATHER,EMV & NAVIGATION SYSTEM-WITH,GRAY,TRIM16; 4-SPOKE,WOOD&LEATHER,INTERIOR UPGRADE PACK&EMV & NAVIGATION SYSTEM-WITH,GRAY,TRIM16

main45100-07311-A0supersedes 45100-07281-A0i200501-200707

4-SPOKE,WOOD&LEATHER,CRUISE CONTROL-LASER RADAR CRUISE&EMV & NAVIGATION SYSTEM-WITH,IVORY,TRIM0#

main45100-07311-B0supersedes 45100-07281-B0i200501-200707

4-SPOKE,WOOD&LEATHER,CRUISE CONTROL-LASER RADAR CRUISE&EMV & NAVIGATION SYSTEM-WITH,LT.GRAY,TRIM17

main45100-07311-B1supersedes 45100-07281-B1i200501-200707

4-SPOKE,WOOD&LEATHER,CRUISE CONTROL-LASER RADAR CRUISE&EMV & NAVIGATION SYSTEM-WITH,GRAY,TRIM16

main45100-07331-A0supersedes 45100-07360-A0i200707-200708

4-SPOKE,LEATHER,AUDIO-JBL AM/FM/CD-CH 12SP,IVORY,TRIM0#

main45100-07331-B0supersedes 45100-07224-B0i200707-200708

4-SPOKE,LEATHER,AUDIO-JBL AM/FM/CD-CH 12SP,LT.GRAY,TRIM17

main45100-07331-B1supersedes 45100-07214-B1i200707-200708

4-SPOKE,LEATHER,STEERING WHEEL-LEATHER W/STEERING S/W&AUDIO-JBL AM/FM/CD-CH 12SP,DK.GRAY,TRIM1#

main45100-07331-B2supersedes 45100-07224-B1i200707-200708

4-SPOKE,LEATHER,AUDIO-JBL AM/FM/CD-CH 12SP,GRAY,TRIM16

main45100-07332-A0supersedes 45100-07360-A0i200709-201003

4-SPOKE,LEATHER,AUDIO-JBL AM/FM/CD-CH 12SP,IVORY,TRIM0#

main45100-07332-B0supersedes 45100-07224-B0i200709-201003

4-SPOKE,LEATHER,AUDIO-JBL AM/FM/CD-CH 12SP,LT.GRAY,TRIM17

main45100-07332-B1supersedes 45100-07214-B1i200709-201003

4-SPOKE,LEATHER,AUDIO-JBL AM/FM/CD-CH 12SP,DK.GRAY,TRIM18; 4-SPOKE,LEATHER,STEERING WHEEL-LEATHER W/STEERING S/W&AUDIO-JBL AM/FM/CD-CH 12SP,DK.GRAY,TRIM1#

main45100-07332-B2supersedes 45100-07224-B1i200709-201003

4-SPOKE,LEATHER,AUDIO-JBL AM/FM/CD-CH 12SP,GRAY,TRIM16

main45100-07341-A1supersedes 45100-07360-A0i200707-200708

4-SPOKE,WOOD&LEATHER,INTERIOR UPGRADE PACK&AUDIO-JBL AM/FM/CD-CH 12SP,IVORY,TRIM0#; 4-SPOKE,WOOD&LEATHER,IVORY,TRIM0#

main45100-07341-B2supersedes 45100-07224-B0i200707-200708

4-SPOKE,WOOD&LEATHER,INTERIOR UPGRADE PACK&AUDIO-JBL AM/FM/CD-CH 12SP,LT.GRAY,TRIM17; 4-SPOKE,WOOD&LEATHER,LT.GRAY,TRIM17

main45100-07341-B3supersedes 45100-07224-B1i200707-200708

4-SPOKE,WOOD&LEATHER,GRAY,TRIM16; 4-SPOKE,WOOD&LEATHER,INTERIOR UPGRADE PACK&AUDIO-JBL AM/FM/CD-CH 12SP,GRAY,TRIM16

main45100-07342-A1supersedes 45100-07360-A0i200709-201003

4-SPOKE,WOOD&LEATHER,INTERIOR UPGRADE PACK&AUDIO-JBL AM/FM/CD-CH 12SP,IVORY,TRIM0#; 4-SPOKE,WOOD&LEATHER,IVORY,TRIM0#

main45100-07342-B2supersedes 45100-07224-B0i200709-201003

4-SPOKE,WOOD&LEATHER,INTERIOR UPGRADE PACK&AUDIO-JBL AM/FM/CD-CH 12SP,LT.GRAY,TRIM17; 4-SPOKE,WOOD&LEATHER,LT.GRAY,TRIM17

main45100-07342-B3supersedes 45100-07224-B1i200709-201003

4-SPOKE,WOOD&LEATHER,GRAY,TRIM16; 4-SPOKE,WOOD&LEATHER,INTERIOR UPGRADE PACK&AUDIO-JBL AM/FM/CD-CH 12SP,GRAY,TRIM16

main45100-07342-B4i200808-201003

4-SPOKE,WOOD&LEATHER,INTERIOR UPGRADE PACK&AUDIO-JBL AM/FM/CD-CH 12SP,SANDAL WOOD/ DARK GRAY,TRIM18; 4-SPOKE,WOOD&LEATHER,SANDAL WOOD / DARK GRAY,TRIM18

main45100-07351-A1supersedes 45100-07370-A0i200707-200708

4-SPOKE,WOOD&LEATHER,CRUISE CONTROL-LASER RADAR CRUISE,IVORY,TRIM0#

main45100-07351-B2supersedes 45100-07342-B2i200707-200708

4-SPOKE,WOOD&LEATHER,CRUISE CONTROL-LASER RADAR CRUISE,LT.GRAY,TRIM17

main45100-07351-B3supersedes 45100-07342-B3i200707-200708

4-SPOKE,WOOD&LEATHER,CRUISE CONTROL-LASER RADAR CRUISE,GRAY,TRIM16

main45100-07352-A1supersedes 45100-07370-A0i200709-201003

4-SPOKE,WOOD&LEATHER,CRUISE CONTROL-LASER RADAR CRUISE,IVORY,TRIM0#

main45100-07352-B2supersedes 45100-07342-B2i200709-201003

4-SPOKE,WOOD&LEATHER,CRUISE CONTROL-LASER RADAR CRUISE,LT.GRAY,TRIM17

main45100-07352-B3supersedes 45100-07342-B3i200709-201003

4-SPOKE,WOOD&LEATHER,CRUISE CONTROL-LASER RADAR CRUISE,GRAY,TRIM16

main45100-07352-B4supersedes 45100-07342-B4i200808-201003

4-SPOKE,WOOD&LEATHER,CRUISE CONTROL-LASER RADAR CRUISE,SANDAL WOOD / DARK GRAY,TRIM18

main45100-07370-A0supersedes 45100-07360-A0i201003-201210

4-SPOKE,WOOD&LEATHER,INTERIOR UPGRADE PACK,IVORY / MED YELLOW BRN,TRIM0#; 4-SPOKE,WOOD&LEATHER,IVORY / MED YELLOW BRN,TRIM0#

main45100-07380-A0supersedes 45100-07360-A0i201003-201210

4-SPOKE,LEATHER,DECONTENT PACKAGE,IVORY,TRIM0#

main45100-07380-B0supersedes 45100-07360-B0i201003-201210

4-SPOKE,LEATHER,DECONTENT PACKAGE,LT.GRAY,TRIM1#

main45100-07380-C0supersedes 45100-07360-C0i201003-201210

4-SPOKE,LEATHER,DECONTENT PACKAGE,BLACK,TRIM2#

45130BUTTON ASSY, HORN

main45130-07070-A0i200501-200503

IVORY,TRIM0#

main45130-07070-B0i200501-200503

LT.GRAY,TRIM17

main45130-07070-B1i200501-200503

GRAY,TRIM16

main45130-07070-B2i200501-200503

DK.GRAY,TRIM18

main45130-07071-A0i200503-200504

IVORY,TRIM0#

main45130-07071-B0i200503-200504

LT.GRAY,TRIM17

main45130-07071-B1i200503-200504

GRAY,TRIM16

main45130-07071-B2i200503-200504

DK.GRAY,TRIM18

main45130-07072-A0i200505-200707

IVORY,TRIM0#

main45130-07072-B0i201003-201210

LT.GRAY,TRIM1#

main45130-07072-B1i200707-201003

GRAY,TRIM16

main45130-07072-B2i200707-201003

DK.GRAY,TRIM18

main45130-07072-C0i201003-201210

BLACK,TRIM2#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-07020-A0i200707-201003

IVORY,TRIM0#

main45186-07020-B0i200501-200707

LT.GRAY,TRIM17

main45186-07020-B1i200501-200707

GRAY,TRIM16

main45186-07020-B2i200707-201003

DK.GRAY,TRIM18

main45186-07020-C0i201003-201210

BLACK,TRIM2#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-07010-A0i200501-200707

IVORY,TRIM0#

main45187-07010-B0i200501-200707

LT.GRAY,TRIM17

main45187-07010-B1i200501-200707

GRAY,TRIM16

main45187-07010-B2i200501-200707

DK.GRAY,TRIM18

main45187-07010-C0i201003-201210

BLACK,TRIM2#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-07010×2i200501-200707

L=18.5

45201PNUT, STEERING WHEEL SET

main90080-17234i200501-200707

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9008015079

main90080-15079

9 parts on this diagram · 1 diagram in section
