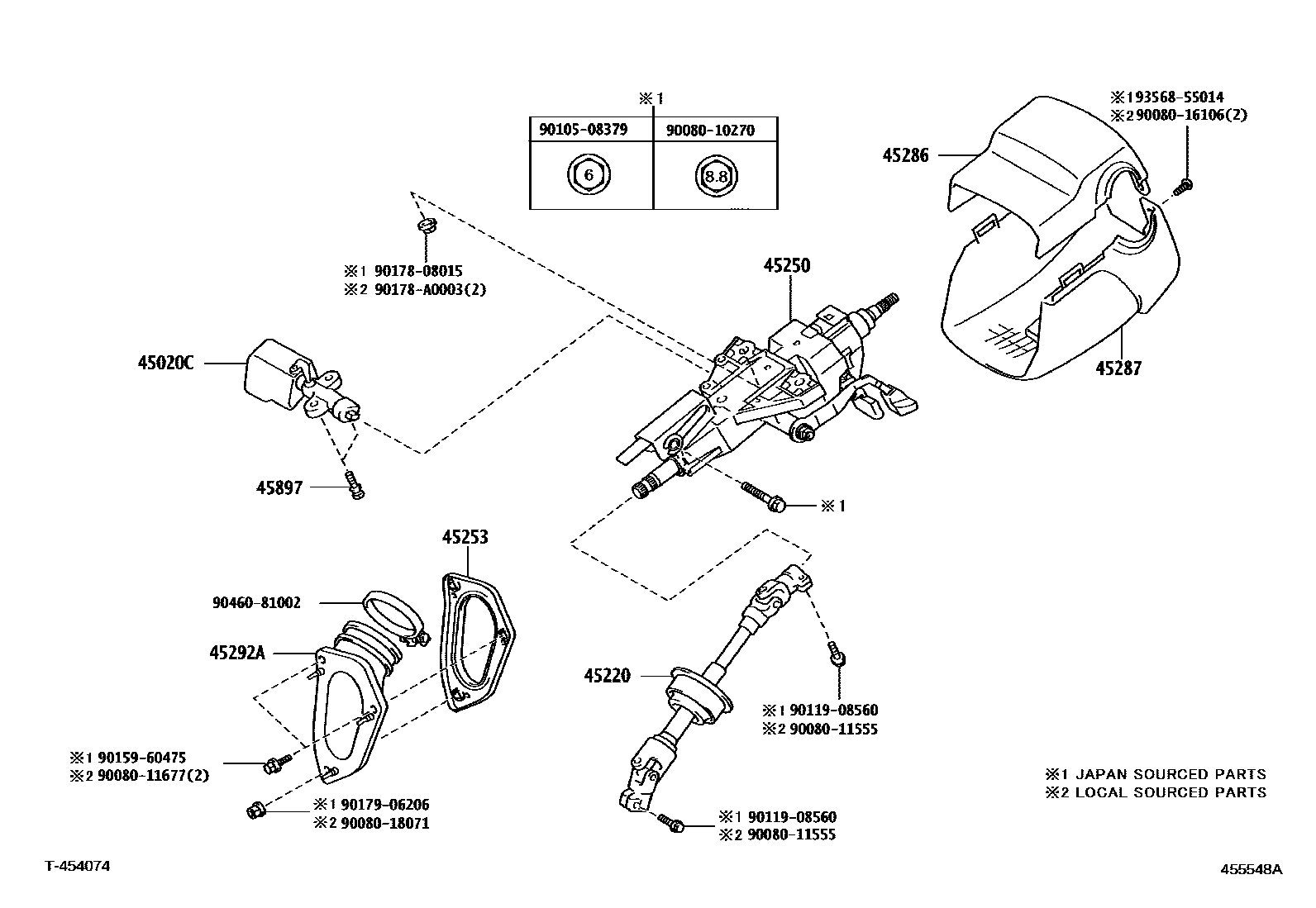

STEERING COLUMN & SHAFT

0001 1 0002 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-AC013iGSX30..LIMD200501-200707

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-33260iGSX30200507-200610

main45220-33270iGSX30201003

45250COLUMN ASSY, STEERING

main45250-AC011iGSX30..LIMD200501-200707

main45250-AC012iGSX30..LIMD201003

main45250-AC021iGSX30..XL,XLS200707-200808

main45250-AC022iGSX30..XLS201003

45253COVER, STEERING COLUMN HOLE

main45253-06020iGSX30200501-200707

45286COVER, STEERING COLUMN

main45286-AC010-A0iGSX30201003-201210

IVORY,TRIM0#

main45286-AC010-B0iGSX30201003-201210

LT.GRAY,TRIM1#

main45286-AC010-B1iGSX30200707-201003

GRAY,TRIM16

main45286-AC010-B2iGSX30..XL200501-200707

DK.GRAY,TRIM18

main45286-AC010-C0iGSX30201003-201210

BLACK,TRIM2#

45287COVER, STEERING COLUMN, LWR

main45287-AC012-A0iGSX30201003-201210

IVORY,TRIM0#

main45287-AC012-B0iGSX30201003-201210

LT.GRAY,TRIM1#

main45287-AC012-B1iGSX30200707-201003

GRAY,TRIM16

main45287-AC012-B2iGSX30200707-201003

DK.GRAY,TRIM18

main45287-AC012-C0iGSX30201003-201210

BLACK,TRIM2#

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-06050iGSX30..XL200707

45897BOLT, STEERING LOCK SET

main45897-08010×2iGSX30201108

main45897-12020×2iGSX30200501-200707

9008010270

main90080-10270

9008011555

main90080-11555

9008011677

main90080-11677

9008016106

main90080-16106

9008018071

main90080-18071

9010508379

main90105-08379

9011908560

main90119-08560

9015960475

main90159-60475

9017808015

main90178-08015

90178A0003

main90178-A0003

9017906206

main90179-06206

9046081002

main90460-81002

9356855014

main93568-55014

21 parts on this diagram · 2 diagrams in section
