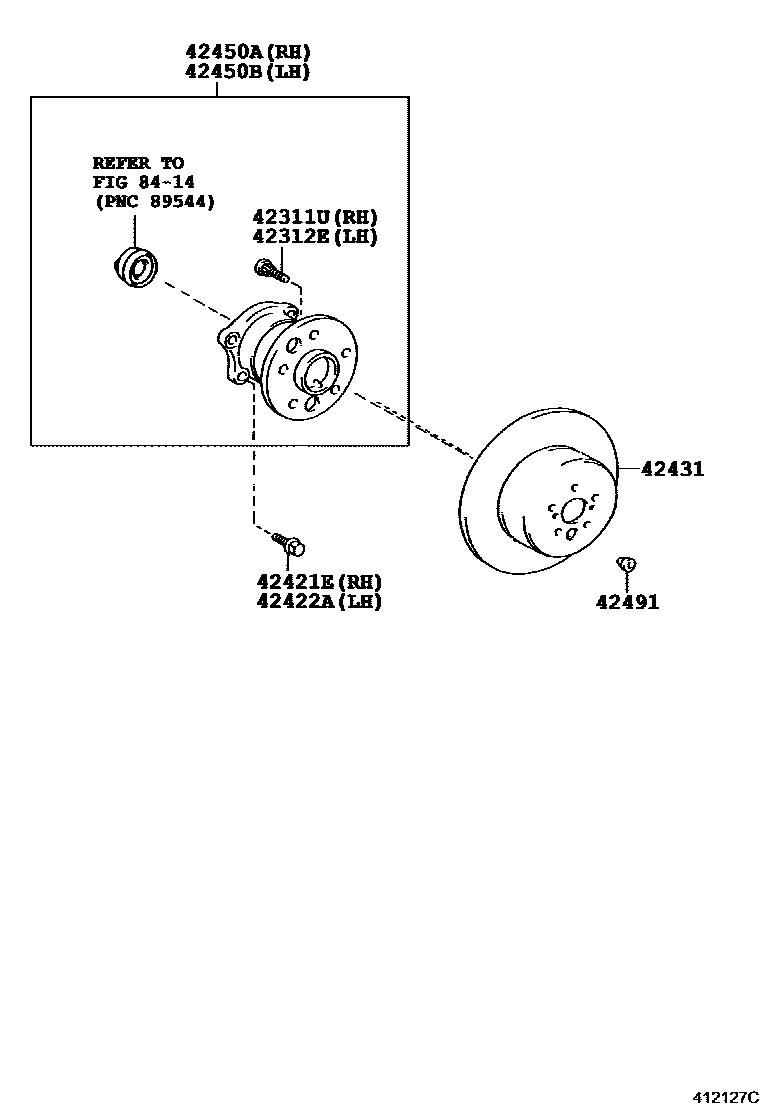

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iGSX30..LIMD,XLS200707-201003

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iGSX30200501-200707

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10510×4iGSX30200501-200707

(J)

main90105-A0021×4iGSX30201003

(L)

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10510×4iGSX30..XL200707

(J)

main90105-A0021×4iGSX30200501-200707

(L)

42431DISC, REAR

main42431-06050×2iGSX30200501-200606

main42431-06051×2iGSX30200606-200707

main42431-06110×2iGSX30200707-201003

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-06021iGSX30200501-200707

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42460-06021iGSX30200501-200707

KOYO

main42460-06030iGSX30200501-200601

NSK

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2iGSX30200802-201003

(J)

main47493-0E010×2iGSX30200707-200802

8414ABS & VSC

→ Go to FIG 84-14

9 parts on this diagram · 1 diagram in section
