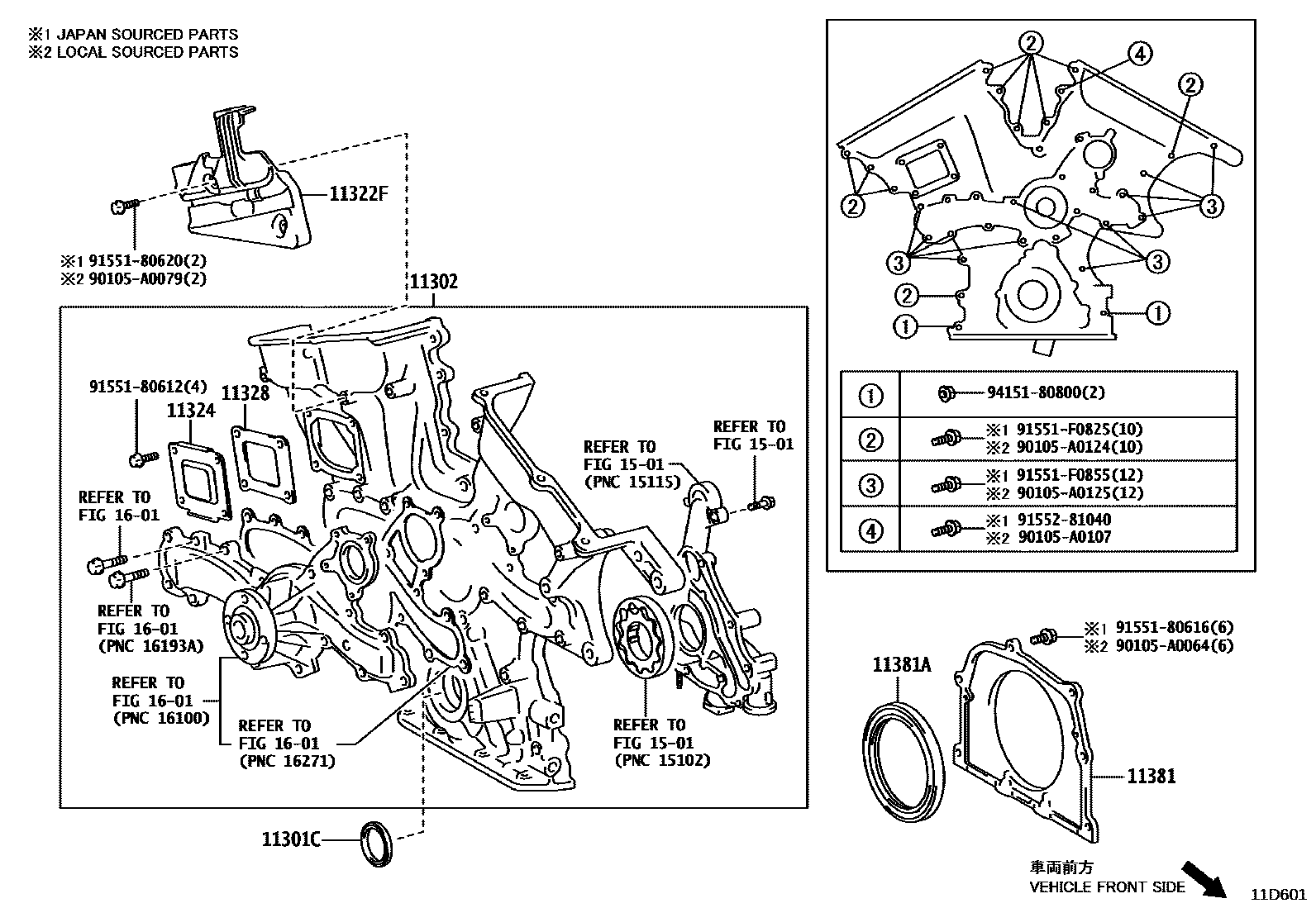

TIMING GEAR COVER & REAR END PLATE

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42037i2GRFE..GSX30200501-200707

(J)

main90311-A0005i2GRFE..GSX30200601-200707

(L)

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0P040i2GRFE..GSX30..LIMD,XLS200707-201003

main11310-31020i2GRFE..GSX30200501-200707

(J)

11322FCOVER, TIMING GEAR, NO.2

main11322-31020i2GRFE..GSX30200501-200509

main11322-31021i2GRFE..GSX30201003

11324PLATE, TIMING CHAIN COVER

main11324-0P010i2GRFE..GSX30..LIMD,XLS200707-201003

main11324-31020i2GRFE..GSX30200501-200707

(J)

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-0P010i2GRFE..GSX30200601-200707

(L)

main11328-31030i2GRFE..GSX30200501-200707

(J)

11381RETAINER, ENGINE REAR OIL SEAL

main11381-31020i2GRFE..GSX30200501-200506

main11381-31021i2GRFE..GSX30200506-200707

11381ASEAL, ENGINE REAR OIL

main90080-31053i2GRFE..GSX30..XL200707

main90311-92006i2GRFE..GSX30200501-200707

*132

1501ENGINE OIL PUMP

→ Go to FIG 15-01

1601WATER PUMP

→ Go to FIG 16-01

90105A0064

main90105-A0064

90105A0079

main90105-A0079

90105A0107

main90105-A0107

90105A0124

main90105-A0124

90105A0125

main90105-A0125

9155180612

main91551-80612

9155180616

main91551-80616

9155180620

main91551-80620

91551F0825

main91551-F0825

91551F0855

main91551-F0855

9155281040

main91552-81040

9415180800

main94151-80800

21 parts on this diagram · 1 diagram in section
