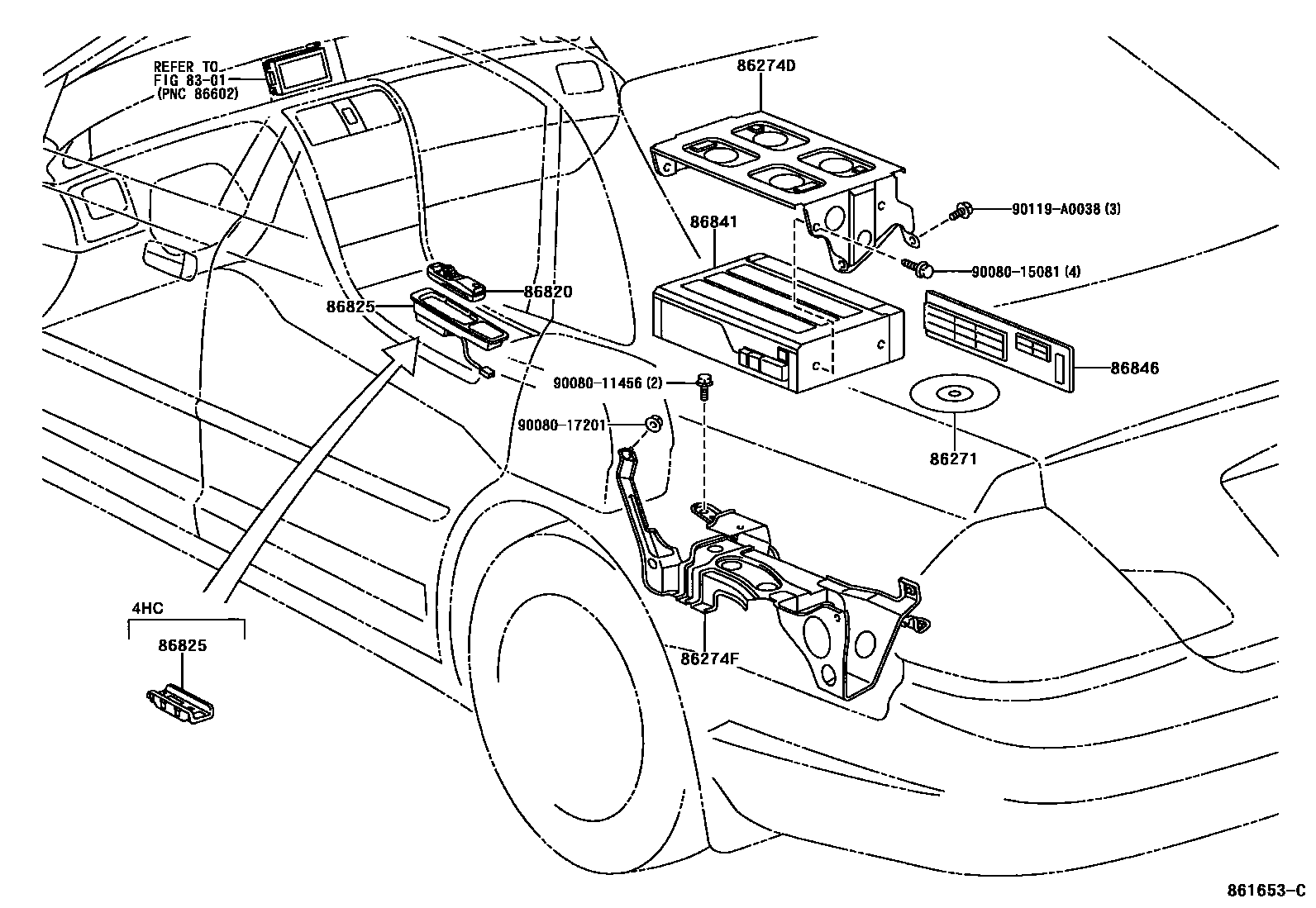

NAVIGATION & FRONT MONITOR DISPLAY

8301METER

→ Go to FIG 83-01

86271DISC, DISC PLAYER

main86271-33030iMCX20..XLS200206-200208

main86271-33031iMCX20..XLS200208-200309

main86271-33032iMCX20..XLS200309-200410

main86271-33033iMCX20..XLS200410-200501

86274DBRACKET, DISC PLAYER

main86274-41020iMCX20..XLS200206

86274FBRACKET, DISC PLAYER, NO.2

main86274-41030iMCX20..XLS200206

86820CONTROLLER ASSY, NAVIGATION

main86820-41031iMCX20..XLS200206

86825HOLDER, NAVIGATION CONTROLLER

main86825-41030iMCX20..4HC..XLS200206-200501

main86825-41040iMCX20..4FC..XLS200206-200501

86841COMPUTER, NAVIGATION

main86841-53030iMCX20..XLS200206-200501

86846PLATE, NAVIGATION COMPUTER

main86846-33020iMCX20..XLS200206

9008011456

main90080-11456

9008015081

main90080-15081

9008017201

main90080-17201

90119A0038

main90119-A0038

12 parts on this diagram · 1 diagram in section
