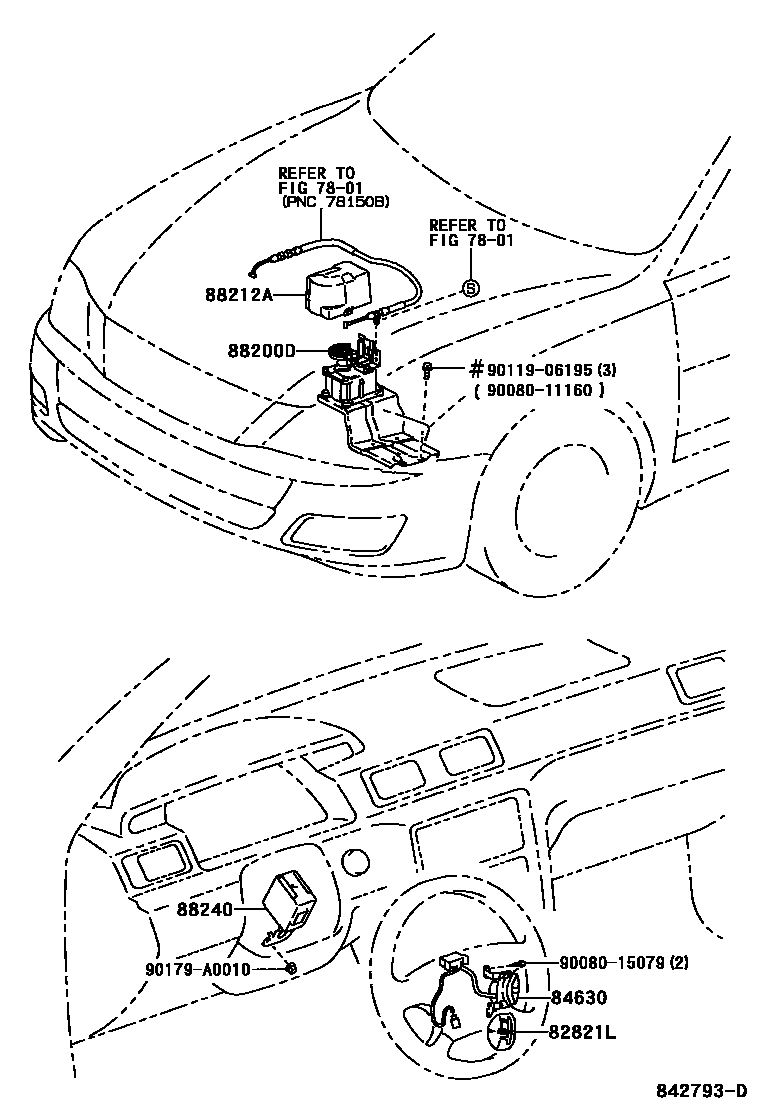

CRUISE CONTROL (AUTO DRIVE)

7801ACCELERATOR LINK

→ Go to FIG 78-01

82821LCOVER, CONNECTOR(FOR CRUISE CONTROL SWITCH)

main82821-07040iMCX20199908-200206

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-07020iMCX20199908-200206

main84630-07030iMCX20200206-200501

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-07010iMCX20199908-200206

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-06010iMCX20199908-200206

88240COMPUTER ASSY, CRUISE CONTROL

main88240-07060iMCX20199908-200206

9008011160

main90080-11160

9008015079

main90080-15079

9011906195

main90119-06195

90179A0010

main90179-A0010

10 parts on this diagram · 1 diagram in section
