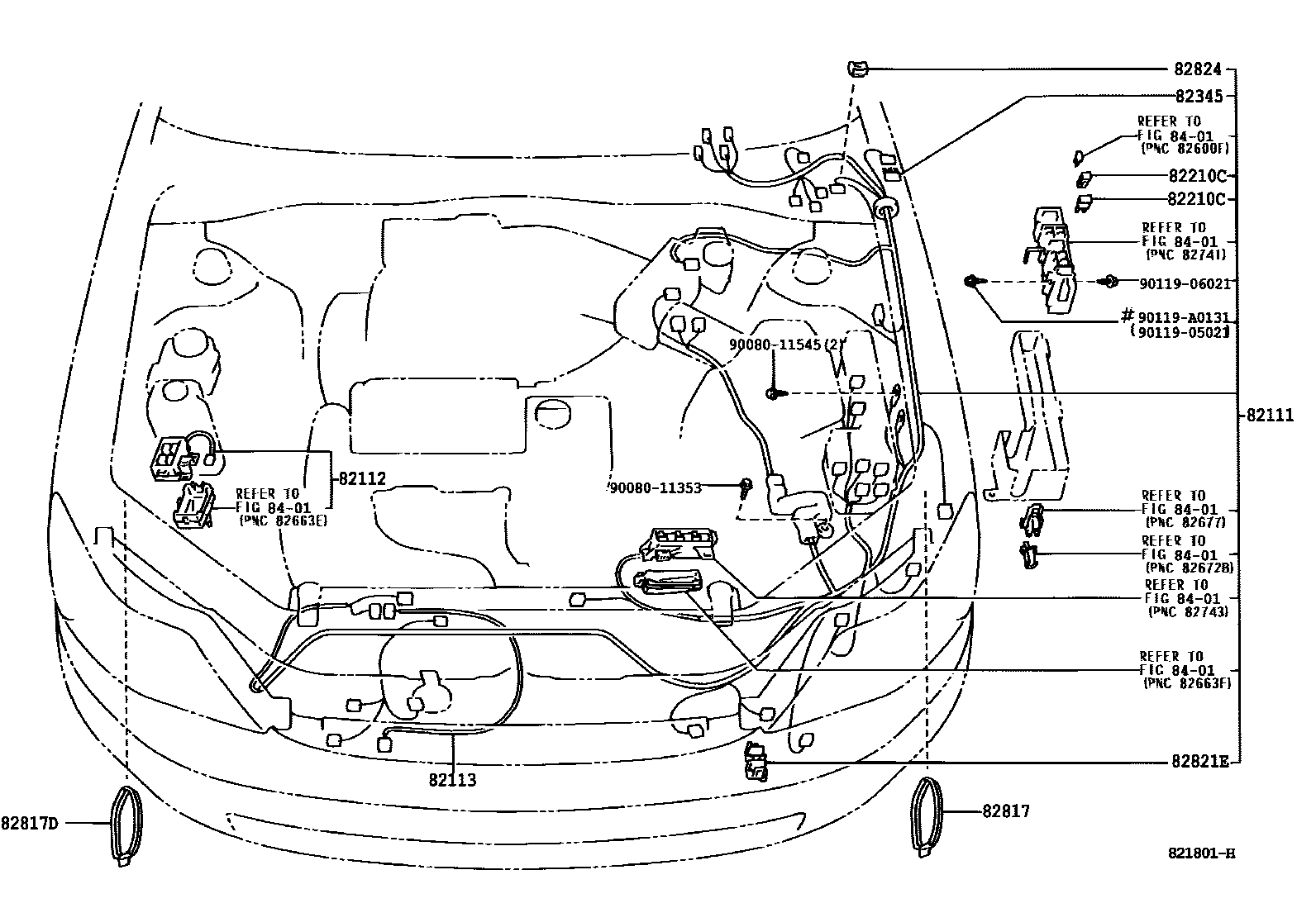

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
W(VSC)
W(VSC)
W(DAY TIME RUNNING LIGHT SYSTEM)
W(DAY TIME RUNNING LIGHT SYSTEM & VSC)
TAIWAN SPEC
TAIWAN SPEC & W(VSC)
W(VSC)
W(VSC)
W(VSC)
82112WIRE, ENGINE ROOM, NO.2
82113WIRE, ENGINE ROOM, NO.3
82210CFUSIBLE LINK
60A,TERM.:MALE,YEL
120A,TERM.:MALE,WHT
30A,TERM.:FEMALE,PNK
40A,TERM.:FEMALE,GRN
50A,FEMALE,RED,32VDC
82345DIODE
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION; TYPE B:REFER TO ILLUSTRATION & W(VSC)
82817PROTECTOR, WIRING HARNESS, NO.1
82817DPROTECTOR, WIRING HARNESS, NO.5
82821ECOVER, CONNECTOR
82824CONNECTOR, WIRING HARNESS
8401SWITCH & RELAY & COMPUTER
9008011353
main90080-11353
9008011545
main90080-11545
9011905021
main90119-05021
9011906021
main90119-06021
90119A0131
main90119-A0131
15 parts on this diagram · 10 diagrams in section
