ROOF HEADLINING & SILENCER PAD

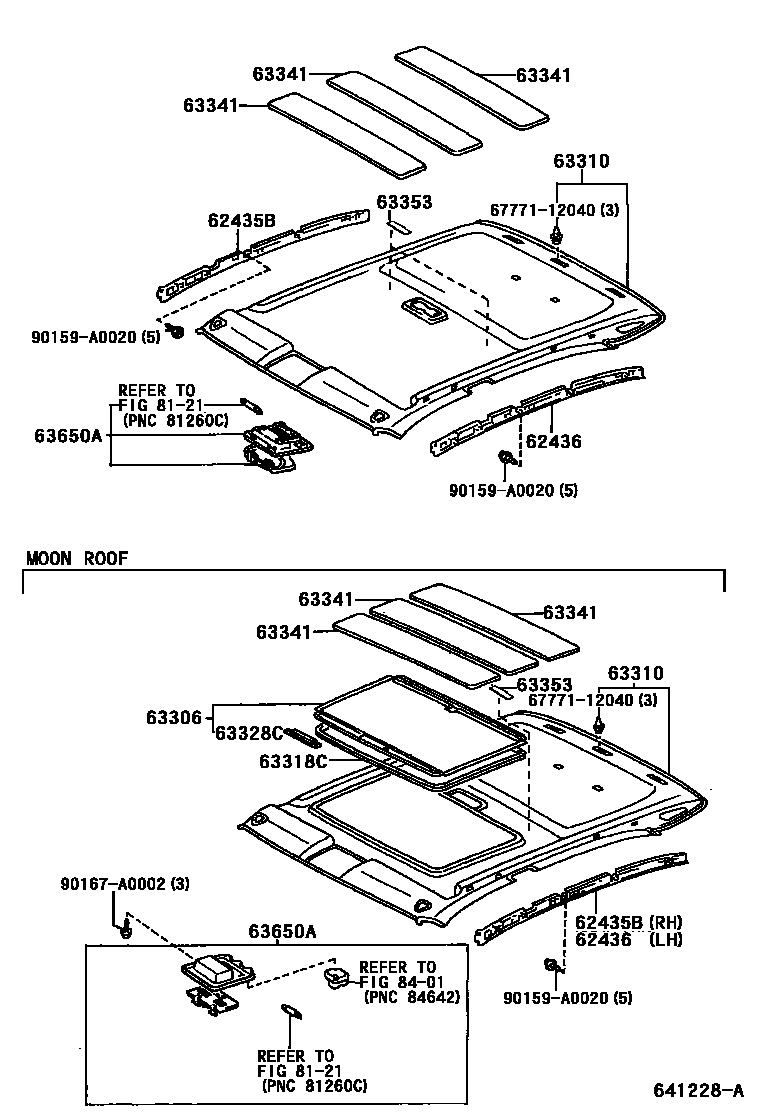

Parts diagram

62435BPAD, ROOF SIDE RAIL, FRONT RH

main62435-AC010i199908-200206

main62435-AC020i200206

62436PAD, ROOF SIDE RAIL, FRONT LH

main62436-AC010i199908-200206

main62436-AC020i200206

63306TRIM SUB-ASSY, SUNSHADE

main63306-AC010-A0i199908-200501

IVORY,TRIM0#

main63306-AC010-B0i199908-200501

STONE,TRIM1#

main63306-AC010-E0i199908-200501

FAWN,TRIM4#

63310HEADLINING ASSY, ROOF

main63310-AC020-A0i199908-200206

IVORY,TRIM0#

main63310-AC020-B0i199908-200206

STONE,TRIM1#

main63310-AC020-E0i199908-200206

FAWN,TRIM4#

main63310-AC080-A0i199908-200206

W(MOON ROOF),IVORY,TRIM0#

main63310-AC080-B0i199908-200206

W(MOON ROOF),STONE,TRIM1#

main63310-AC080-E0i199908-200206

W(MOON ROOF),FAWN,TRIM4#

main63310-AC090-A0i199908-200206

IVORY,TRIM0#

main63310-AC090-B0i199908-200206

STONE,TRIM1#

main63310-AC090-E0i199908-200206

FAWN,TRIM4#

main63310-AC100-A0i199908-200206

W(MOON ROOF),IVORY,TRIM0#

main63310-AC100-B0i199908-200206

W(MOON ROOF),STONE,TRIM1#

main63310-AC100-E0i199908-200206

W(MOON ROOF),FAWN,TRIM4#

main63310-AC130-A0i200206-200304

IVORY,TRIM0#

main63310-AC130-B0i200206-200304

STONE,TRIM1#

main63310-AC130-E0i200206-200304

FAWN,TRIM4#

main63310-AC131-A0i200304-200501

IVORY,TRIM0#

main63310-AC131-B0i200304-200501

STONE,TRIM1#

main63310-AC131-E0i200304-200501

FAWN,TRIM4#

main63310-AC140-A0i200206-200207

W(MOON ROOF),IVORY,TRIM0#

main63310-AC140-B0i200206-200207

W(MOON ROOF),STONE,TRIM1#

main63310-AC140-E0i200206-200207

W(MOON ROOF),FAWN,TRIM4#

main63310-AC141-A0i200207-200304

W(MOON ROOF),IVORY,TRIM0#

main63310-AC141-B0i200207-200304

W(MOON ROOF),STONE,TRIM1#

main63310-AC141-E0i200207-200304

W(MOON ROOF),FAWN,TRIM4#

main63310-AC142-A0i200304-200501

W(MOON ROOF),IVORY,TRIM0#

main63310-AC142-B0i200304-200501

W(MOON ROOF),STONE,TRIM1#

main63310-AC142-E0i200304-200501

W(MOON ROOF),FAWN,TRIM4#

main63310-AC150-A0i200206-200304

IVORY,TRIM0#

main63310-AC150-B0i200206-200304

STONE,TRIM1#

main63310-AC150-E0i200206-200304

FAWN,TRIM4#

main63310-AC151-A0i200304-200501

IVORY,TRIM0#

main63310-AC151-B0i200304-200501

STONE,TRIM1#

main63310-AC151-E0i200304-200501

FAWN,TRIM4#

main63310-AC160-A0i200206-200207

W(MOON ROOF),IVORY,TRIM0#

main63310-AC160-B0i200206-200207

W(MOON ROOF),STONE,TRIM1#

main63310-AC160-E0i200206-200207

W(MOON ROOF),FAWN,TRIM4#

main63310-AC161-A0i200207-200304

W(MOON ROOF),IVORY,TRIM0#

main63310-AC161-B0i200207-200304

W(MOON ROOF),STONE,TRIM1#

main63310-AC161-E0i200207-200304

W(MOON ROOF),FAWN,TRIM4#

main63310-AC162-A0i200304-200501

W(MOON ROOF),IVORY,TRIM0#

main63310-AC162-B0i200304-200501

W(MOON ROOF),STONE,TRIM1#

main63310-AC162-E0i200304-200501

W(MOON ROOF),FAWN,TRIM4#

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-AC010-A0i199908-200501

IVORY,TRIM0#

main63318-AC010-B0i199908-200501

STONE,TRIM1#

main63318-AC010-E0i199908-200501

FAWN,TRIM4#

63328CKNOB, SUNSHADE TRIM

main63328-12030-A1i199908-200501

IVORY,TRIM0#

main63328-12030-B9i199908-200501

STONE,TRIM1#

main63328-12030-E1i199908-200501

FAWN,TRIM4#

63341PAD, ROOF SILENCER, NO.1

main63341-AA010i199908-200206

main63341-AC020i200008-200206

W(MOON ROOF)

63353PAD, WINDSHIELD HEADER PANEL

main63353-AC010i200206

63650ABOX ASSY, ROOF CONSOLE

main63650-AC010-A0i199908-200501

IVORY,TRIM0#

main63650-AC010-B0i199908-200501

STONE,TRIM1#

main63650-AC010-E0i199908-200501

FAWN,TRIM4#

main63650-AC020-A0i199908-200501

W(MOON ROOF),IVORY,TRIM0#

main63650-AC020-B0i199908-200501

W(MOON ROOF),STONE,TRIM1#

main63650-AC020-E0i199908-200501

W(MOON ROOF),FAWN,TRIM4#

8121INTERIOR LAMP

→ Go to FIG 81-21

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

6777112040WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12040

90159A0020

main90159-A0020

90167A0002

main90167-A0002

14 parts on this diagram · 1 diagram in section
