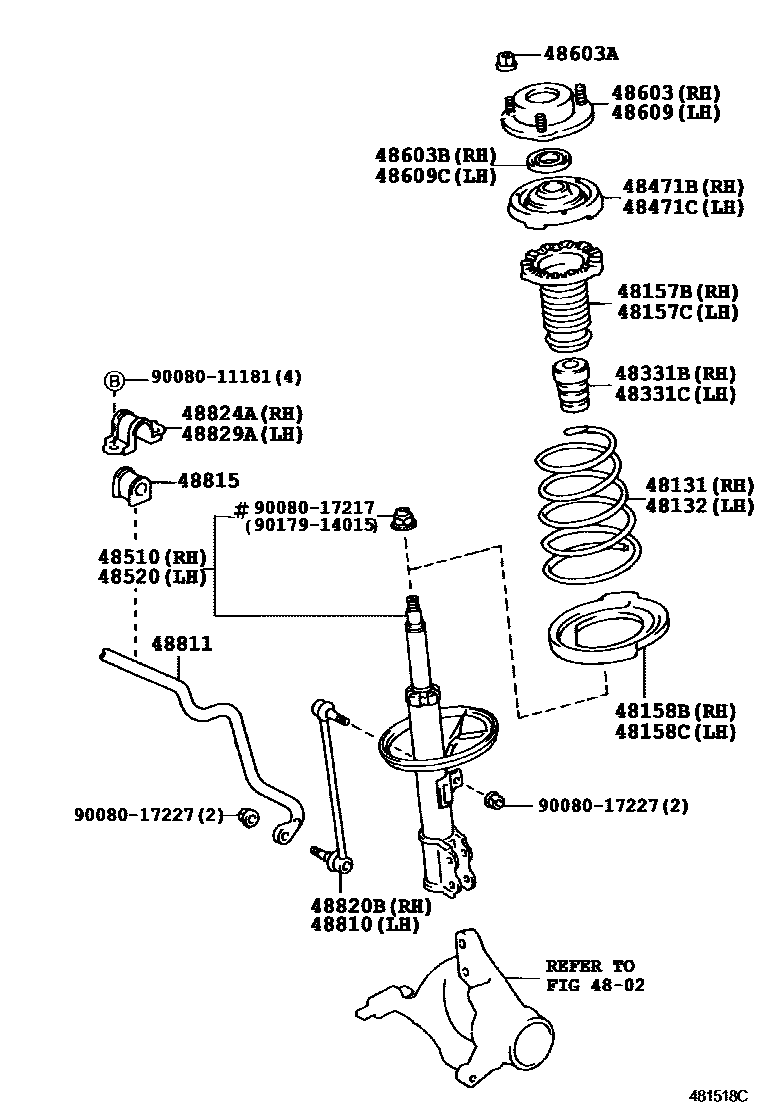

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-AC020iMCX20199908-200004

L=374.5

main48131-AC030iMCX20200004-200306

main48131-AC040iMCX20200306-200404

sub48131-AC041

main48131-AC041iMCX20200405-200501

48132SPRING, FRONT COIL, LH

main48131-AC020iMCX20199908-200004

L=374.5

main48131-AC030iMCX20200004-200306

main48131-AC040iMCX20200306-200404

sub48131-AC041

main48131-AC041iMCX20200405-200501

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-07010iMCX20199908-200307

main48157-07011iMCX20200307-200501

sub48157-07012

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-07010iMCX20199908-200307

main48157-07011iMCX20200307

sub48157-07012

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-07010iMCX20199908-200306

main48158-33031iMCX20200306-200501

(J)

main48158-AA030iMCX20200306-200501

(L)

sub48158-33031

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-07010iMCX20199908-200306

main48158-33031iMCX20200306-200501

(J)

main48158-AA030iMCX20200306-200501

(L)

sub48158-33031

48331BBUMPER, FRONT SPRING, RH

main48331-06011iMCX20199908-200206

48331CBUMPER, FRONT SPRING, LH

main48331-06011iMCX20199908-200206

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-06030iMCX20200112-200404

sub48471-0E010

sub48471-AA010

main48471-41010iMCX20199908-200112

main48471-AA010iMCX20200404-200501

sub48471-AA011

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-06030iMCX20200112-200404

sub48471-0E010

sub48471-AA010

main48471-41010iMCX20199908-200112

main48471-AA010iMCX20200404-200501

sub48471-AA011

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-A9100iMCX20199908-200306

MARK 48510-AC020

main48510-A9410iMCX20200306-200501

MARK 48510-AC030

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-A9080iMCX20199908-200306

MARK 48520-AC020

main48520-A9270iMCX20200306-200501

MARK 48520-AC030

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48603-06011iMCX20199908-200206

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90080-17225iMCX20200306

main90178-10008iMCX20199908-200107

main90178-10018iMCX20200107-200306

48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)

main90080-36070iMCX20199908-200501

(L)

sub90903-63014

main90903-63002iMCX20199908-200501

(J)

sub90903-63014

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-06061iMCX20199908-200206

48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)

main90080-36070iMCX20199908-200501

(L)

sub90903-63014

main90903-63002iMCX20199908-200501

(J)

sub90903-63014

48810LINK ASSY, FRONT STABILIZER, LH

main48810-06030iMCX20199908-200206

48811BAR, STABILIZER, FRONT

main48811-AC020iMCX20199908-200206

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-06050iMCX20199908-200206

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-06030iMCX20199908-200206

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-07010iMCX20199908-200206

sub48824-33020

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-07010iMCX20199908-200206

sub48824-33020

9008011181

main90080-11181

9008017217

main90080-17217

9008017227

main90080-17227

9017914015

main90179-14015

28 parts on this diagram · 1 diagram in section
