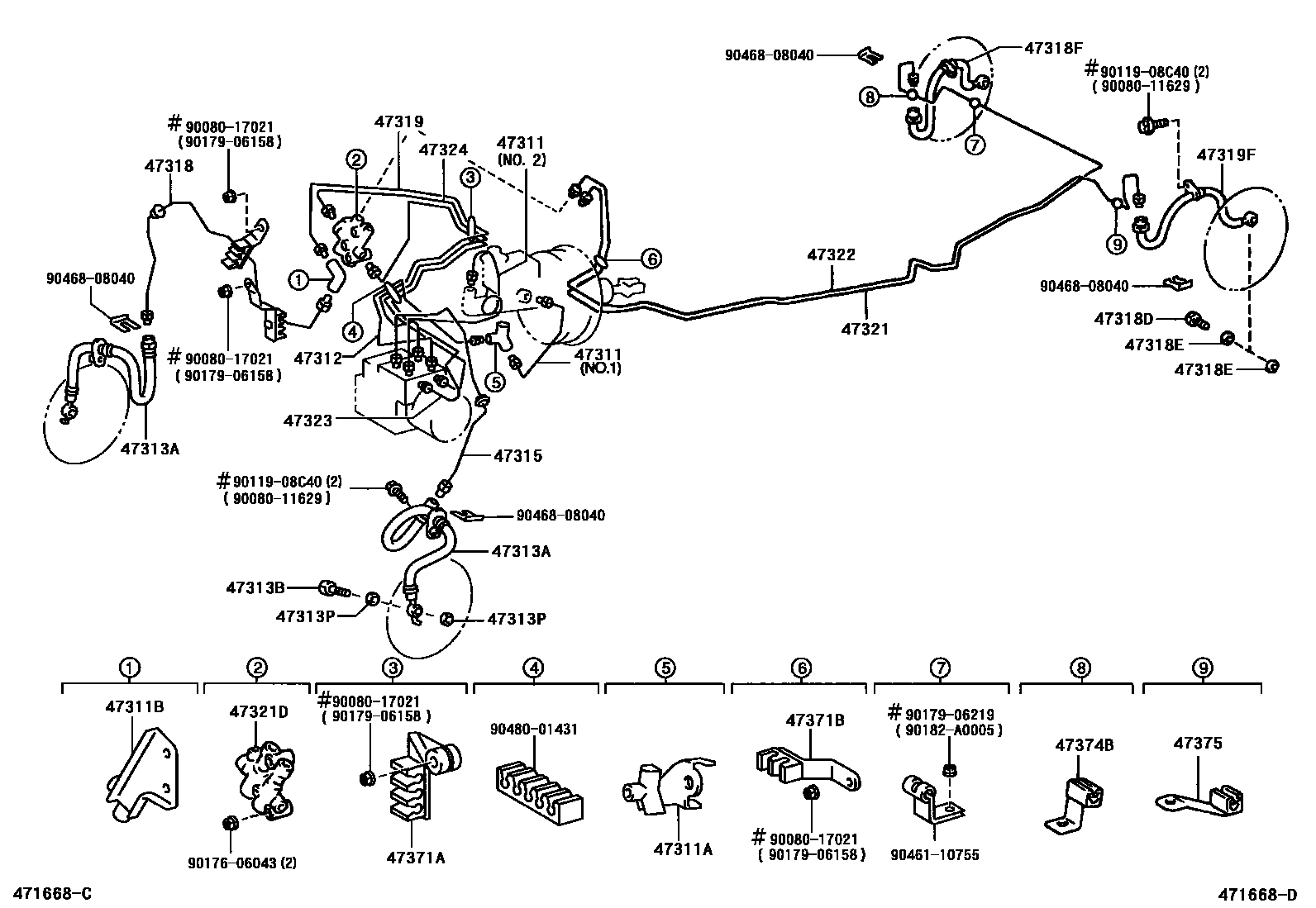

BRAKE TUBE & CLAMP

0001 1 0002 1W(VSC) 0003 1W(ABS) 0004 1W(VSC)

47311TUBE, FRONT BRAKE, NO.1

main47311-07031iMCX20200206

W(VSC),NO.2

main47311-07041iMCX20199908-200206

NO.2

main47311-07051iMCX20200206

NO.1

47311AWAY(FOR FRONT BRAKE TUBE)

main90904-12071iMCX20200206

main90904-13050iMCX20200206

W(VSC)

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90904-12038iMCX20199908-200206

47312TUBE, FRONT BRAKE, NO.2

main47312-07021iMCX20199908-200206

W(VSC)

main47312-07031iMCX20200206

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90080-94094iMCX20199908-200206

RH

main90080-94095iMCX20199908-200206

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iMCX20200206

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iMCX20199908-200206

47315TUBE, FRONT BRAKE, NO.5

main47315-07041iMCX20199908-200206

W(VSC)

main47315-07051iMCX20199908-200206

47318TUBE, FRONT BRAKE, NO.8

main47318-07021iMCX20200206

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015×2iMCX20199908-200206

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074×4iMCX20200206

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90080-94096iMCX20199908-200206

47319TUBE, FRONT BRAKE, NO.9

main47319-07061iMCX20199908-200206

W(VSC)

main47319-07071iMCX20200206

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90080-94097iMCX20199908-200206

47321TUBE, REAR BRAKE, NO.1

main47321-07041iMCX20199908-200206

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10140iMCX20199908-200206

47322TUBE, REAR BRAKE, NO.2

main47322-07041iMCX20199908-200206

47323TUBE, REAR BRAKE, NO.3

main47323-07061iMCX20199908-200206

W(VSC)

main47323-07071iMCX20200206

47324TUBE, REAR BRAKE, NO.4

main47324-07061iMCX20199908-200206

W(VSC)

main47324-07071iMCX20199908-200206

47371ACLAMP, BRAKE TUBE, NO.1

main47371-41040iMCX20200206

47371BCLAMP, BRAKE TUBE, NO.6

main47371-33090iMCX20199908-200206

47374BCLAMP, BRAKE TUBE, NO.4

main47371-32130iMCX20199908-200206

47375CLAMP, BRAKE TUBE, NO.5

main47371-32140iMCX20200206-200501

9008011629

main90080-11629

9008017021

main90080-17021

9011908C40

main90119-08C40

9017606043

main90176-06043

9017906158

main90179-06158

9017906219

main90179-06219

90182A0005

main90182-A0005

9046110755

main90461-10755

9046808040

main90468-08040

9048001431

main90480-01431
