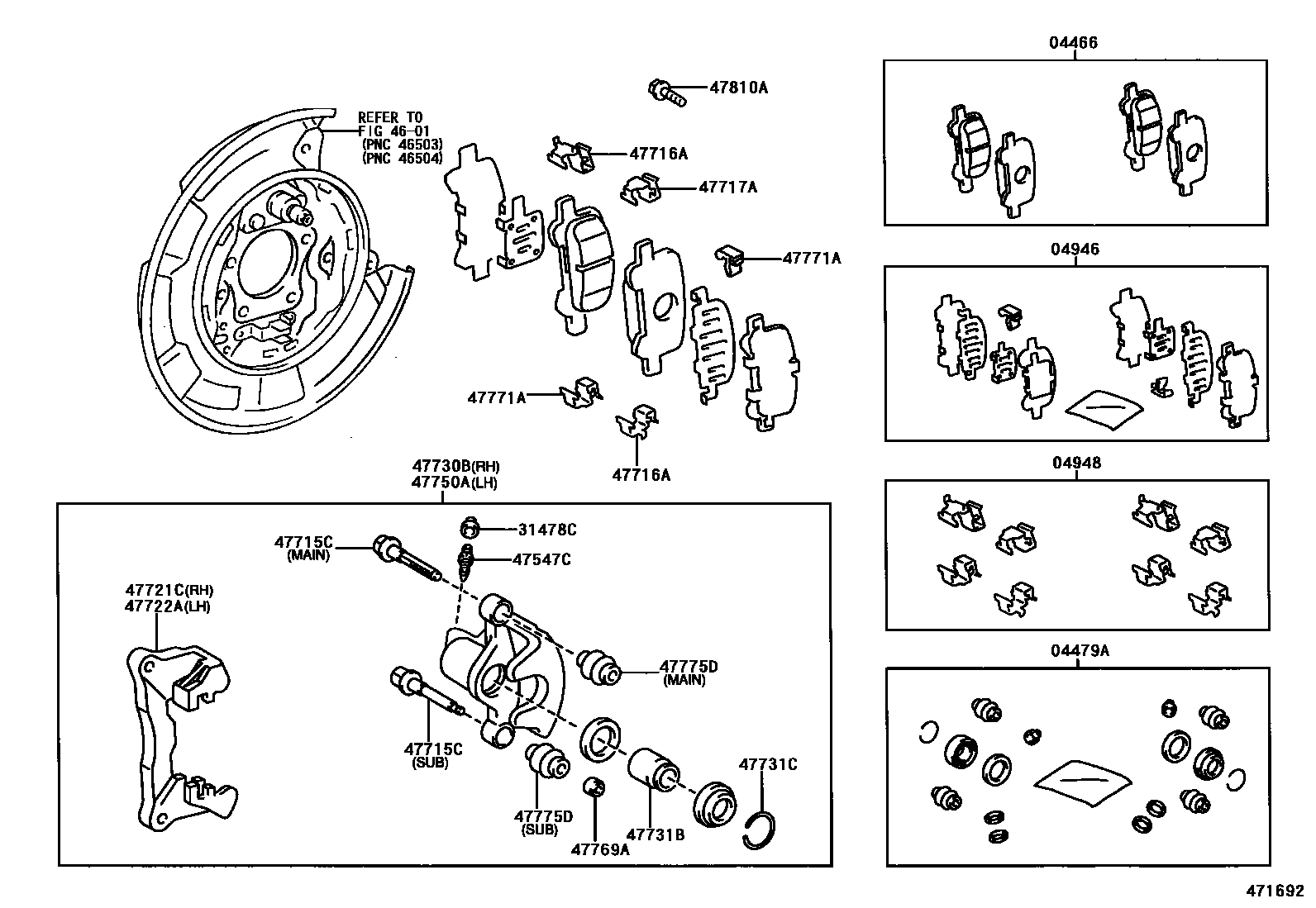

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-06030iMCX20200311-200501

MARK AK PA561

main04466-41020iMCX20199908-200311

MARK AK PA544

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-07040iMCX20199908-200501

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04945-06080iMCX20200206-200501

main04946-07020iMCX20199908-200206

04948FITTING KIT, DISC BRAKE, REAR

main04948-07020iMCX20199908-200501

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iMCX20199908-200206

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-06010iMCX20199908-200206

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-07050iMCX20199908-200206

MAIN

main47715-07060iMCX20199908-200206

SUB

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-07020iMCX20199908-200206

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-07020iMCX20199908-200206

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-07050iMCX20199908-200501

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-07050iMCX20199908-200501

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-07040iMCX20199908-200206

47731BPISTON, REAR DISC BRAKE

main47731-07040iMCX20199908-200206

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90080-52104iMCX20199908-200206

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-07040iMCX20199908-200206

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-06020iMCX20199908-200206

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-07030iMCX20199908-200206

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-41030iMCX20199908-200206

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90080-11440iMCX20200212-200501

main90080-11440iMCX20199908-200212

(L)

main90119-10379iMCX20199908-200212

(J)

20 parts on this diagram · 1 diagram in section
