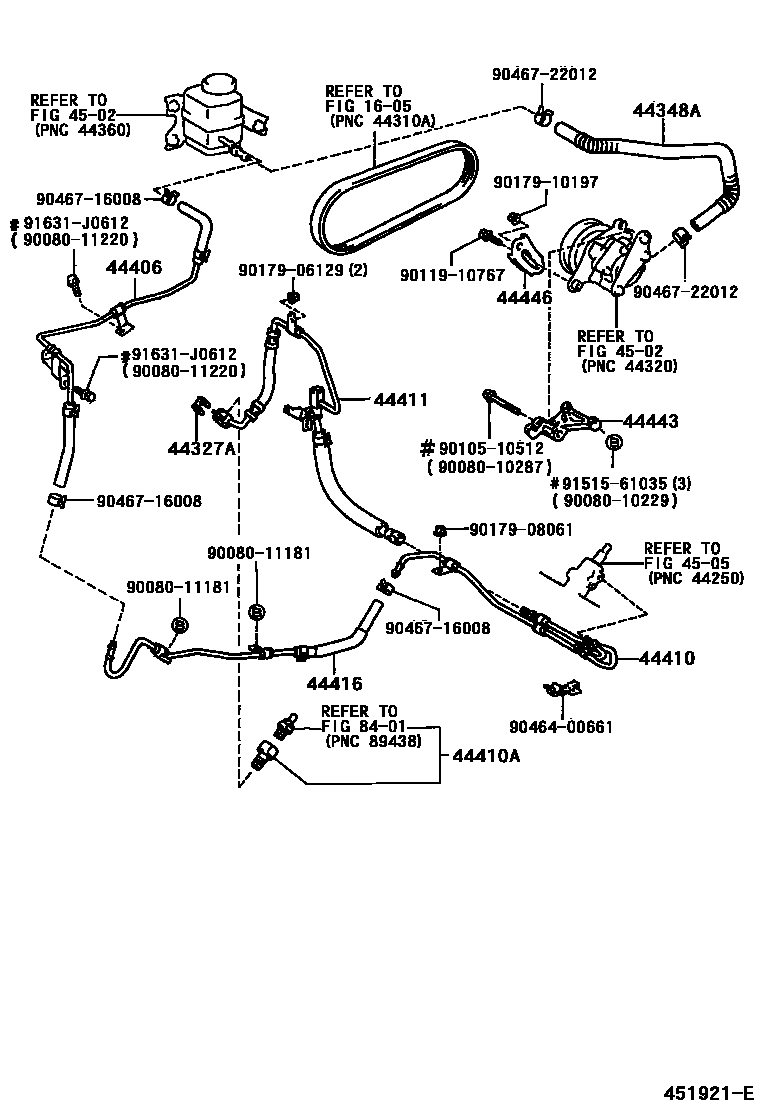

POWER STEERING TUBE

1605V-BELT

→ Go to FIG 16-05

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iMCX20199908-200206

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-07020iMCX20199908-200206

44406TUBE SUB-ASSY, RETURN

main44406-07050iMCX20199908-200206

44410TUBE ASSY, PRESSURE FEED

main44410-07030iMCX20199908-200206

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main44338-08010iMCX20200206

main44338-33090iMCX20199908-200206

44411HOSE, PRESSURE FEED

main44411-07050iMCX20199908-200206

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-07020iMCX20199908-200206

44443BRACKET, PUMP

main44443-33041iMCX20199908-200206

44446STRUT, ADJUSTING

main44446-AC010iMCX20199908-200206

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008010229

main90080-10229

9008010287

main90080-10287

9008011181

main90080-11181

9008011220

main90080-11220

9010510512

main90105-10512

9011910767

main90119-10767

9017906129

main90179-06129

9017908061

main90179-08061

9017910197

main90179-10197

9046400661

main90464-00661

9046716008

main90467-16008

9046722012

main90467-22012

9151561035

main91515-61035

91631J0612

main91631-J0612

27 parts on this diagram · 1 diagram in section
